Pro-Weld CD-212 - Parts List; Assembly -CD-212 Controller

CD-212
PRO WELD
ITEM DESCRIPTION PART NUMBER
1 Chassis 101-0025
2 SCR Mounting 124-0026
3 Main SCR 108-0001
4 Capacitor (3) 106-0023
5 Transform er 105-0017
6 PC Board 600-0013
7 Discharge Resistor 112-0041
8 Safety Discharge SCR 108-0042
9 Charging SCR 108-0002
10 Buss Ba r 124-0034
11 Diode 108-0027
12 Charging Bridge 108-0017
13 Buss Bar 124-0035
13a 150K 2 Watt 111-0002
1
2 3
4 5
6
7
9 10
11 12
13
8

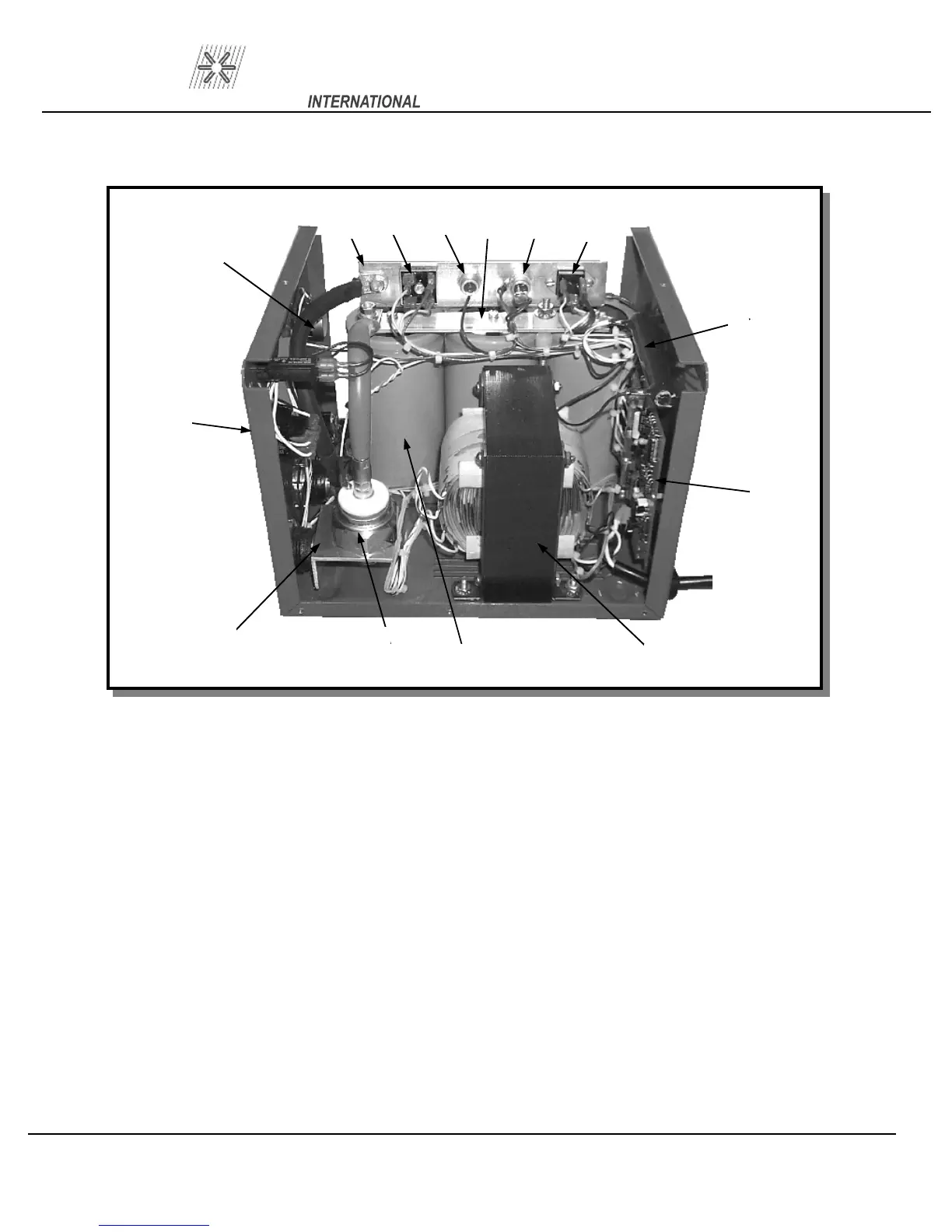

Figure 15 Parts List
16.0 ASSEMBLY CD - 212 CONTROLLER (see Figure 15,16, & 17)
Page 15
13a
