Pro-Weld CD-312 - 9.0 WELDING SYSTEM HOOK-UP; Straight Polarity (Standard Set-Up)

CD-312
PRO WELD
9.0 WELDING SYSTEM HOOK - UP
9.1 Straight Polarity (Standard Set - Up) (see Figure 2)
A. Connect ground cable connector (1A) into c amlok (1). The camlok should be connected into the
receptacle marked GROUND. Twist until it locks. Attach “C” clamp (2) to the w orkpiece (5)
(CLEANED AREA).
B. Connect the gun control cable (3A) into the female receptacle (3).
C. Connect the gun weld cab le (4A) into the receptacle marked GUN (4). Twist clockwise until it
locks.
D. Connect AC power cable to AC outlet.
NOTE:
The gun welding and control cables must be laid out in a straight line. Poor weld quality may result if
welding cables are coiled.

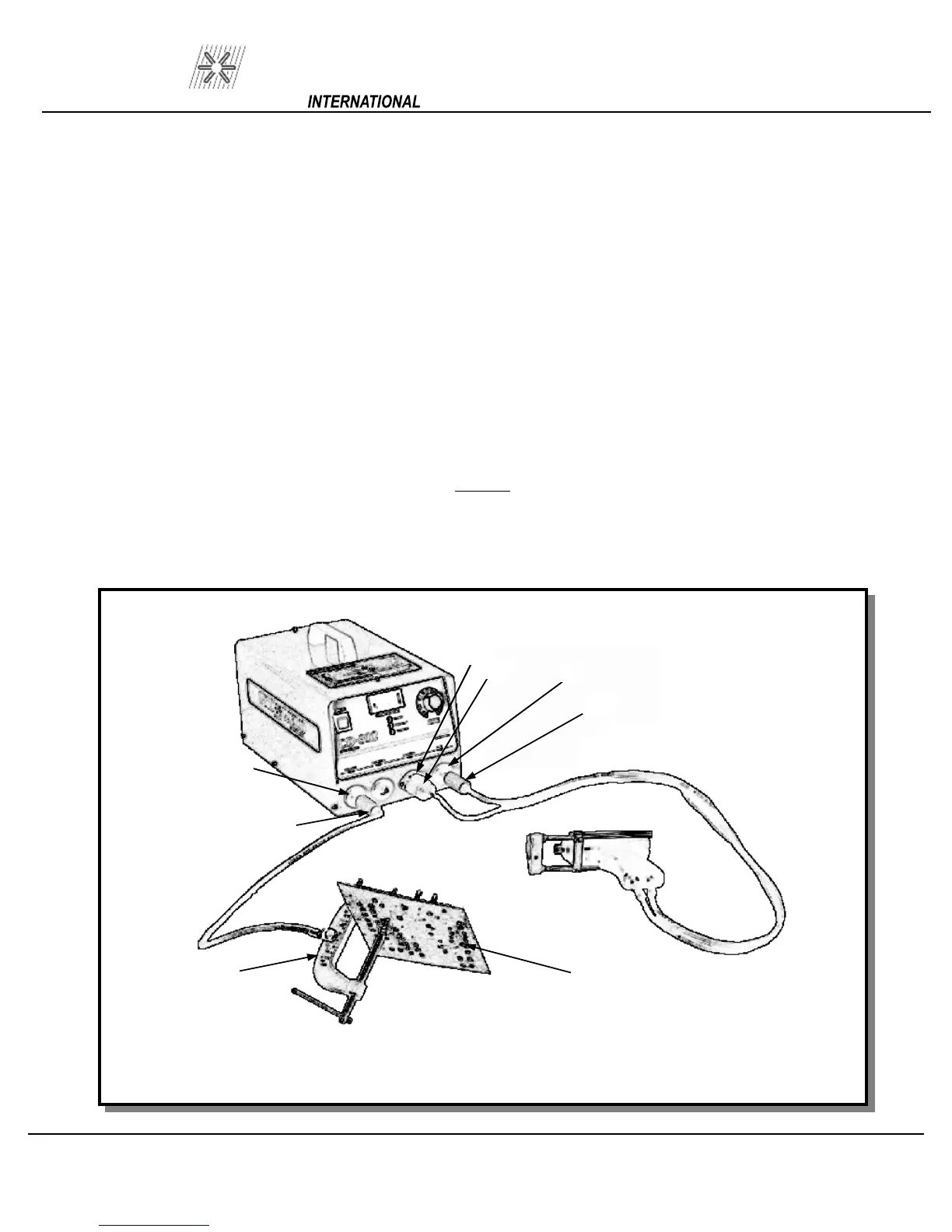

Figure 2 Straight Polarity Hook - Up
3
3A
4A
4
1
1A
2
5
PAGE 4
