CD-312
PRO WELD
1
0.0 SYSTEM OPERATION
(see Figure 4)
1.
The CD
-
312 is designed for simple, yet precise operation.
2.
It has an “ON
-
OFF” toggle
switch/indicator light (1) and a variable voltage control dial (2), a
ready indicator light (3), a contact light (4) and a trig
ger light (5) on the front panel.
3.
Before turning the unit “ON”, the voltage control knob (2) should be turned counter
-
clockw
ise
to the lowest setting.
4.
With all cables connected, turn the unit on by putting the rocker switch (1) in the “ON” pos
i-
tion. The integral indicator light (1) will turn on.
5.
When the capacitors reach the charge voltage setting, the ready light (
4) will turn on.

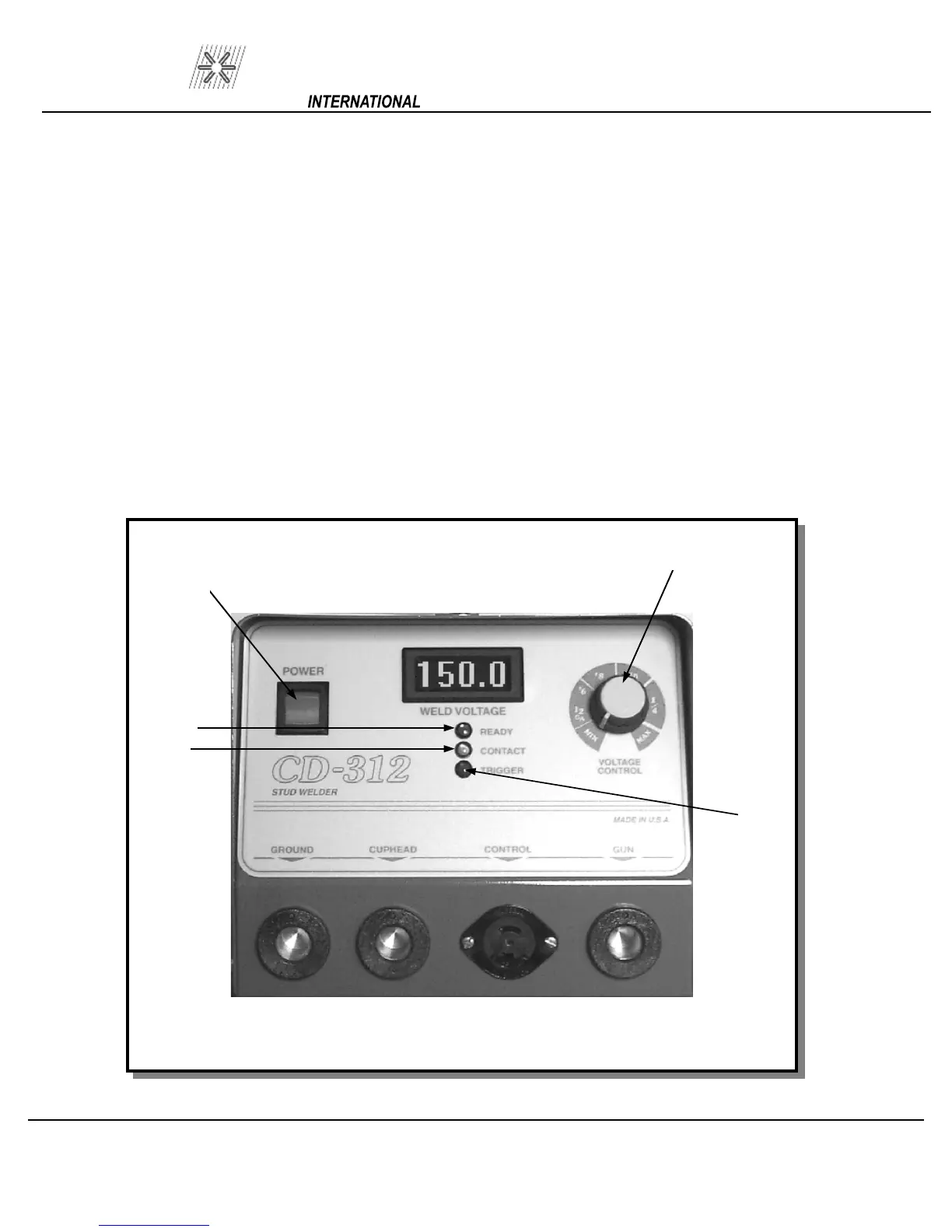

Figure 5 Front Panel Layout
1
2
5
3
4
PAGE 7
