Pro-Weld CD-312 - Page 26

CD-312
PRO WELD
ITEM DESCRIPTION PART NUMBER
8 Terminal Strip 102-0020
9 Transformer 105-0010
10 Dropping Resistor 112-0042
11 Discharge Resisto r 112-0041
12 Nichrome Resistor 112-0043
13 PC Board 600-0007
14 Charging SCR 108-0002
15 Diode 108-0027
16 Charging Bridge 108-0017
17 Safety Discharge SCR 108-0042

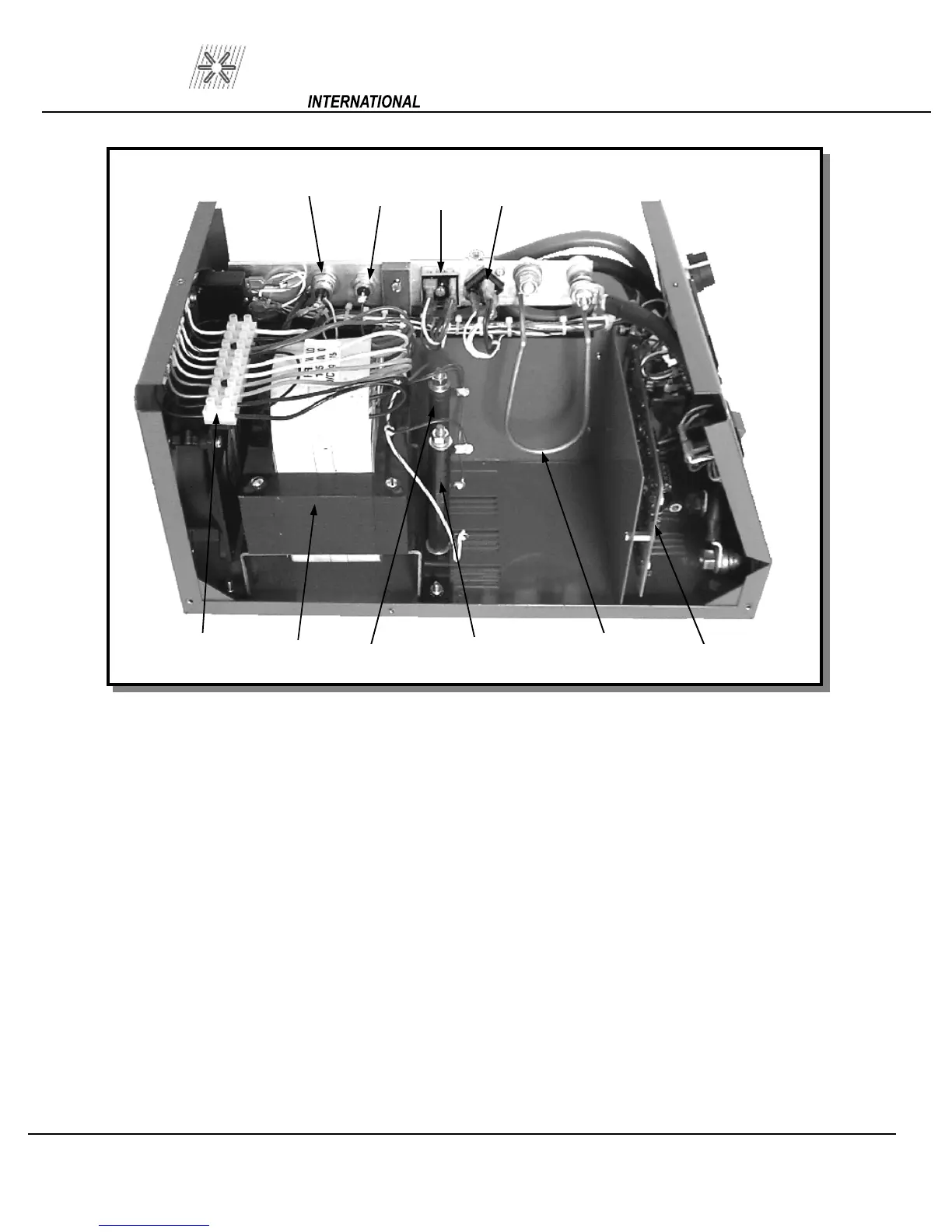

Figure 17 Parts List
8
9
10
11
12
13
14
15
16
17
PAGE 18
