X K 3 1 9 0 –DS3

(4)

interface《sharing with serial communication interface》). See Pins 9 and 10 for definition of its pins in

Figure (2-5).

Signal of scoreboard is current loop or RS232 signal and it is output serially in binary code with

baud rate of 600. Each frame has 11 bits, i.e. one start bit (0), 8 data bits (lower bits in front), one mark

bit and one stop bit (1).

3. The indicator sends out a group of data every 100ms with 3 frames of data contained. See the

meaning in Figure (2-6).

First frame data: the mark bit is 0;

Signal ground

Connect the scoreboard

Scoreboard RS233 output interface

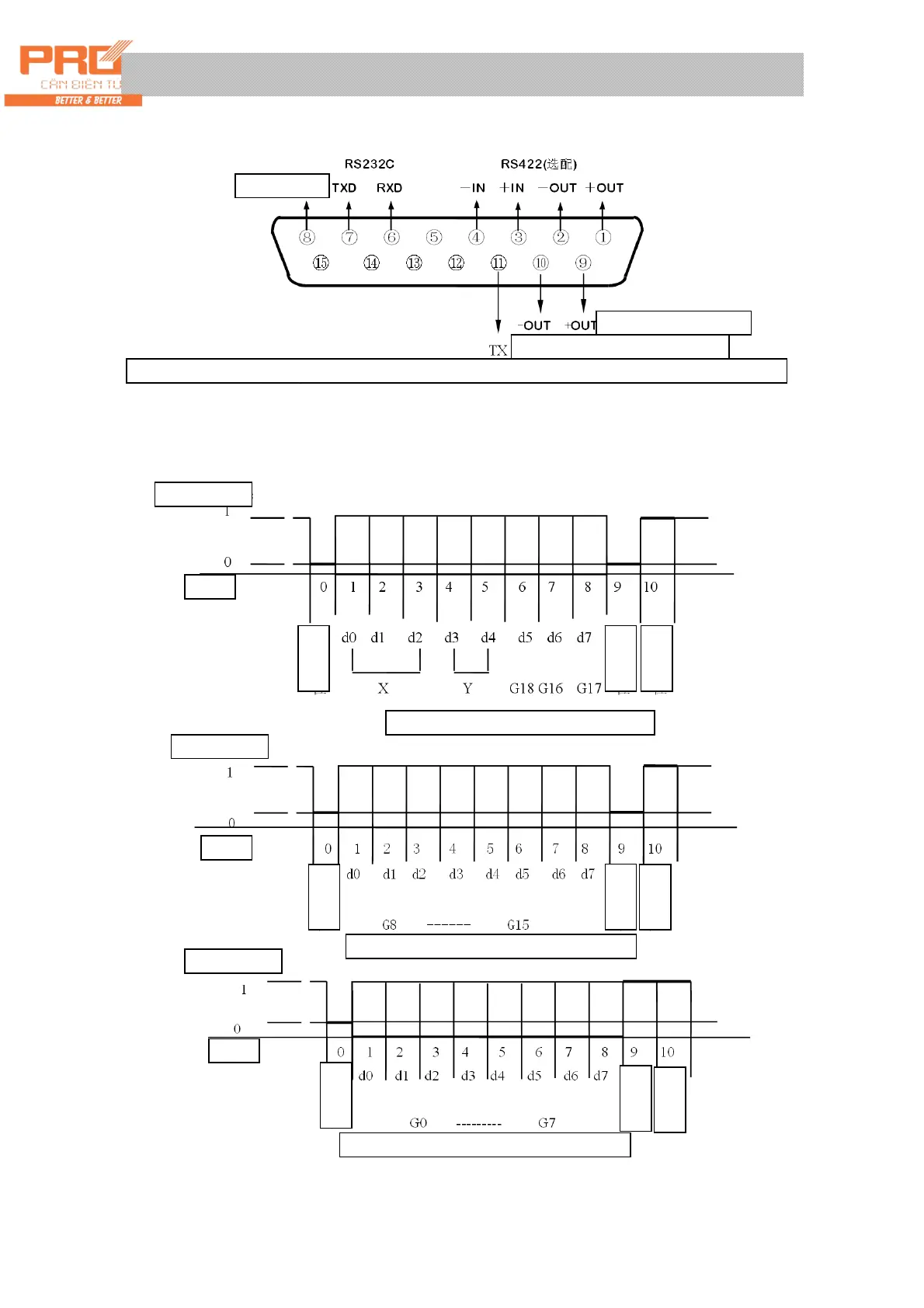

(Figure 2-5) Serial communication and scoreboard output interface signal back scheme of the machine housing

First frame

Bit

Start bit

Mark bit

Stop bit

(Figure 2-6.1) First frame oscillogram

Second frame

Bit

Start bit

Mark bit

Stop bit

(Figure 2-6.2) Second frame oscillogram

Third frame

Bit

Start bit

Mark bit

Stop bit

(Figure 2-6.3) Third frame oscillogram
