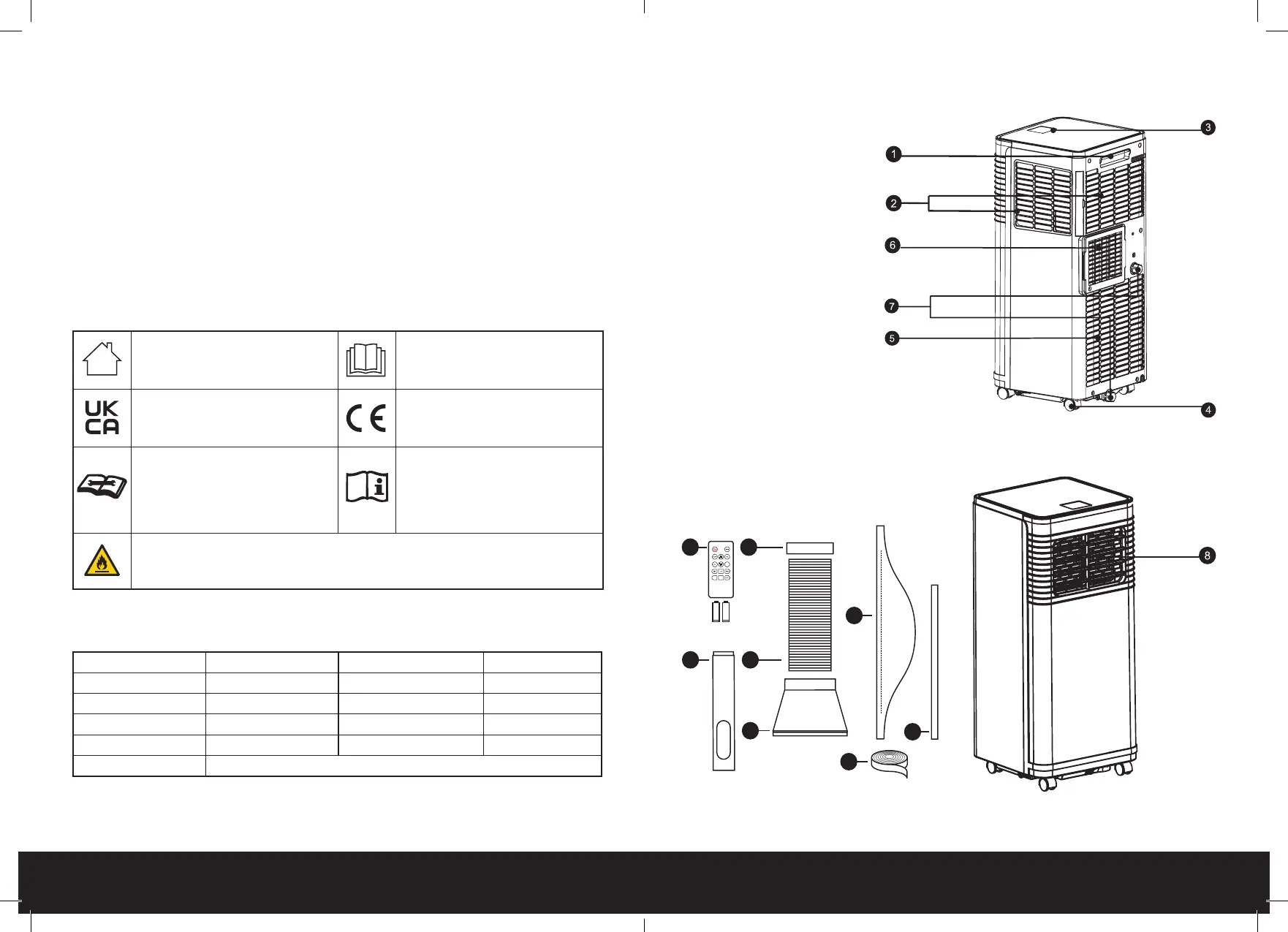

PARTS
―
1. Handle
2. Upper Air Inlet Grille & filters
3. Control Panel
4. Caster wheels [HYCC1]
5. Lower air inlet grille
6. Air Outlet Grille
7. Continuous drainage cap/
continuous water outlet.
Bottom drainage cap/
bottom water outlet
8. Air Vent
9. 2*AAA batteries +
Remote Control
10. Square heat exhaust
hose connector
11. Heat exhaust hose
12. Heat exhaust hose short connector
13. Window sealing board kit (Panel A&B + Clip)
14. 600mm water hose
15. Hinged window fabric sealing assembly
16. Sealing Velcro
9
13
16
14
15
12
11
10
prevent mechanical failure.
• Individuals who operate or work on the refrigerant circuit
must have the appropriate certification issued by an
accredited organisation that ensures competence in
handling refrigerants according to a specific evaluation
recognised by associations in the industry.
• Maintenance and repairs that require the assistance
of other qualified personnel must be performed under
the supervision of an individual specified in the use of
flammable refrigerants.
SYMBOLS EXPLAINED
―
For indoor use only. Please read instruction manual
and retain for future use.
Equipment complies with the
applicable UK safety requirements
and regulations.
Equipment complies with the
applicable EU safety requirements
and regulations.
CAUTION: This symbol shows
that a service personnel should
be handling this equipment
with reference to the installation
manual.
CAUTION: This symbol shows that
information is available such as the
operating manual or instruction
manual.
WARNING: The symbol shows that this appliance uses a flammable refrigerant.
If the refrigerant leaks and is exposed to an external ignition source, there is a risk of
fire.
SPECIFICATIONS
―
Model: PB-AC08-UK Product Dimensions: 310 x 682 x 302mm
Voltage: 220-240V~ Frequency: 50Hz
Rated Input Current: 2.5A Cooling Capacity: 5000 BTU/H
Rated Power Input: 563W EER: 2.60
Net Weight: 18kg Gross Weight: 22kg
Refrigerant: R290/95g
