PROCEED AVP - Page 7

Connection
AVP RS-232 Quick Guide Page 5

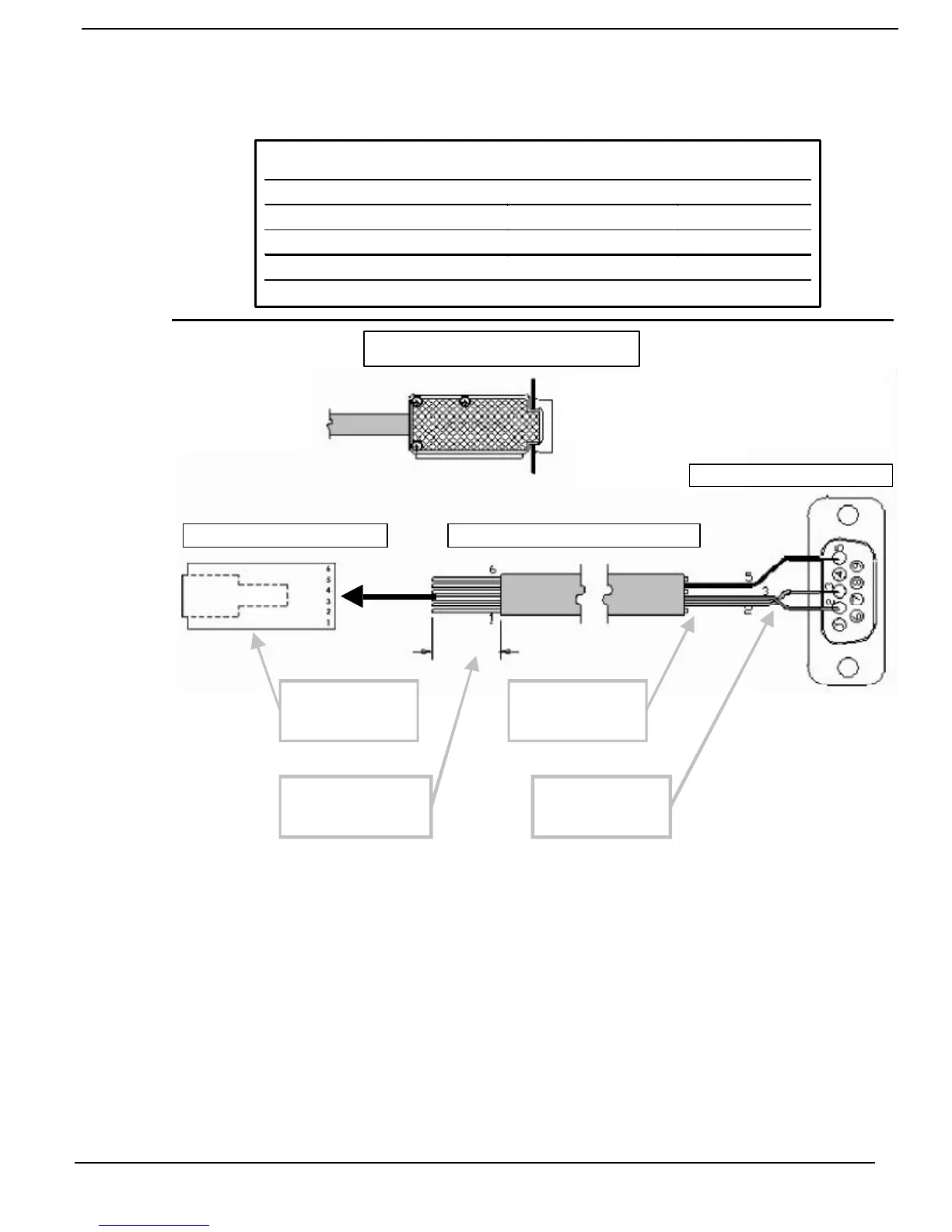

Diagram 2 – RJ-11 to DSUB9 Cable
Parts Used for Cable
Digikey Part# Radioshack Part #
(1) - 9 pin DSUB Female Connector
A2047-ND 276-1537
(2) - 6 pin RJ-11 Connector
A9027-ND 279-421
(3) - 9 pin DSUB Housing
A9001-ND 276-1539
(4) - 6 Conductor Data / Phone Cable
H0063 (length in feet)-ND 910-2319
(1)
-
9 pin DSUB Female Inside View
(3) - 9 pin DSUB Housing
Assemble per manufacturers specifications
(2)
-
6 Pin RJ
-
11 Connector
NOTE Orientation of
wires and Attach as
shown
Strip Insulation per RJ-11
manufacturers
Instructions
NOTE Orientation of
RJ-
11 with Clip Facing
Down
(4)
-
6 Conductor Data / Phone Cable
Cut wires
1 / 4 / 6
from cable
