Proceq SCHMIDT OS-120 - Page 9

© 2013 Proceq SA 7
0.00
0.50
1.00
1.50
2.00
2.50
3.00
3.50
4.00
4.50
0 5 10 15 20 25 30 35 40 45 50

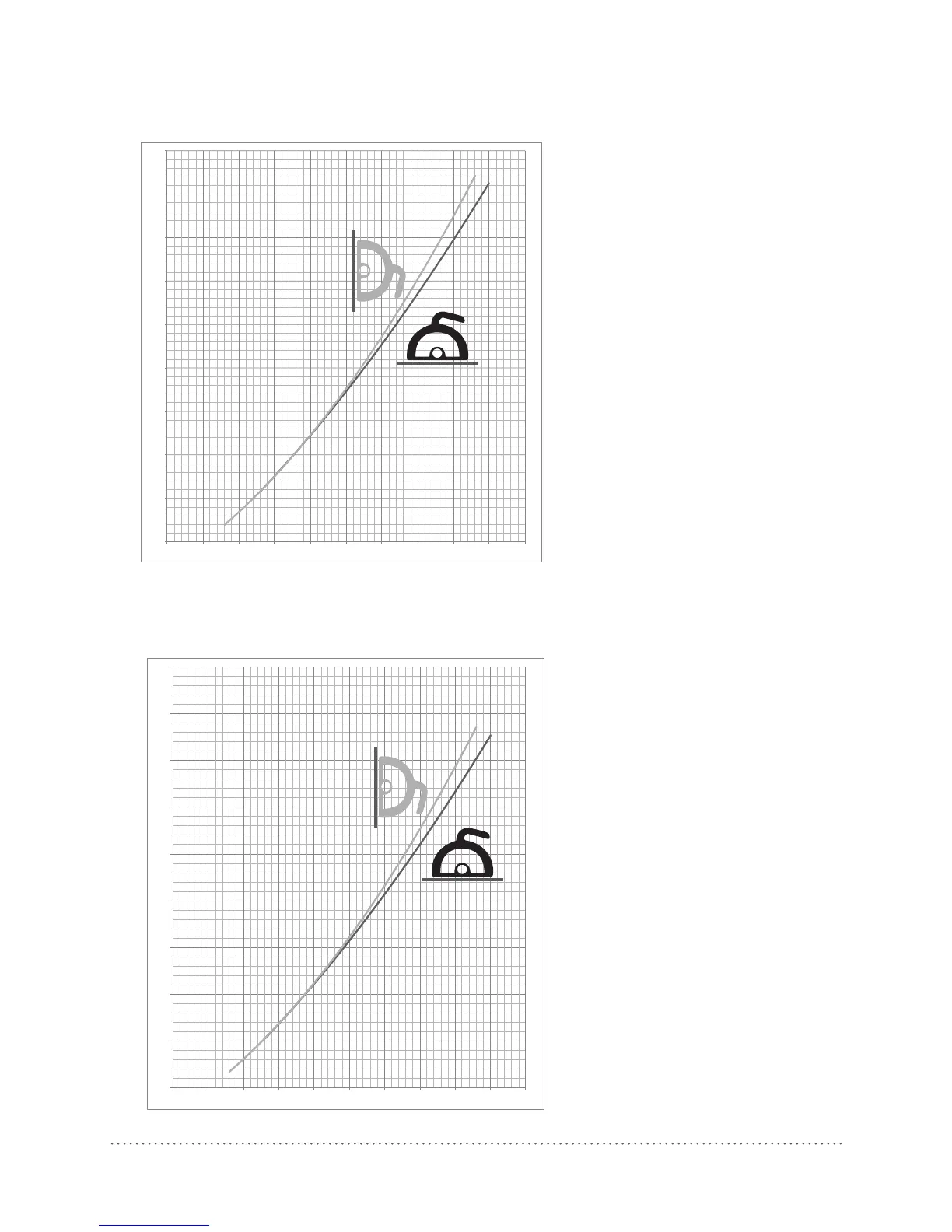

OS-120 PT Conversion Curve Cylinder 150/300
Horizontal impact direction N/mm
2
y = 0.8337 * (0.0015x
2
+ 0.0615x - 0.3585)
Vertical impact direction N/mm
2
y = 0.8337 * (0.0009x
2
+ 0.0808x - 0.5081)
fc Cylinder 150/300
fc [N/mm
2
]
R
0
100
200
300
400
500
600
700
800
900
0 5 10 15 20 25 30 35 40 45 50
OS-120 PT Conversion Curve Cube 150/150/150
Horizontal impact direction psi y = 152.2899 * (0.0015x
2
+ 0.0615x - 0.3585)
Vertical impact direction psi y = 152.2899 * (0.0009x
2
+ 0.0808x - 0.5081)
fc Cube 150/150/150
fc [psi]
R
