Page 22

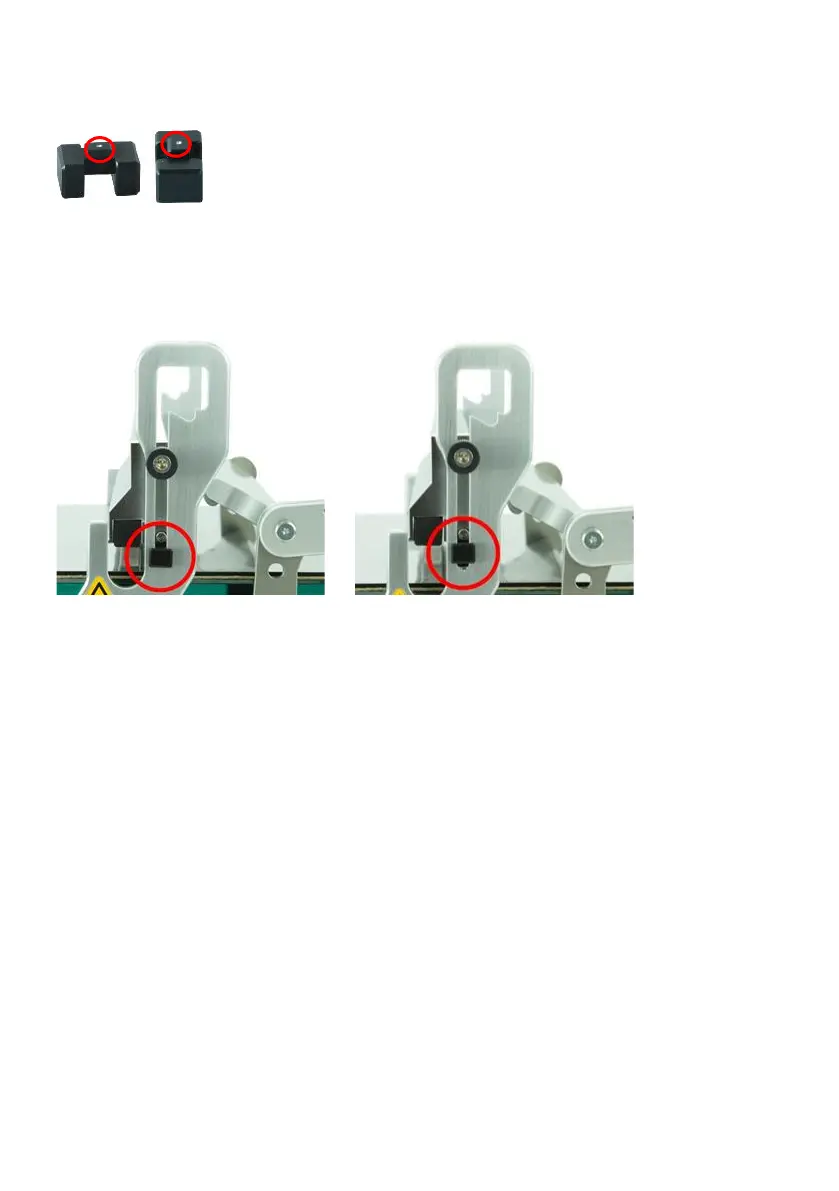

For substrates between 4 mm and 11 mm thickness, use the
included weight lifter. To install it, remove the weight (7) and
place the weight lifter in the holding device (9) with the top
marker facing up, then place the weight (7) back in the holding device (9).
If the weight (7) needs to be lifted even higher, place the weight lifter with the top
marker facing down in the holding device (9). The resulting height difference can be
seen below:
