INSTALLATION:
Before installation, carefully read this entire section.
Uncrating and Inspection:
1) Remove the Heater assembly from its shipping container.
2) Remove box containing all support equipment.
3) Remove any protective packaging material and discard.
4) Inspect unit for any apparent physical damage.
5) Check component list for all parts.
Component Identification:
The SHC inline heater includes the following items:
1) Heater Assembly: Consists of PFA fluid path within a flame retardant polypropylene
housing.
1. NEVER exceed recommended temperature and
pressure ratings.
2. Turn power off at the main disconnect before
performing any service.
3. Lock and Tag the disconnect to prevent the
equipment from accidentally being energized
during servicing.
4. Read all instructions carefully and understand
equipment before operating. Consult factory
for assistance if needed.

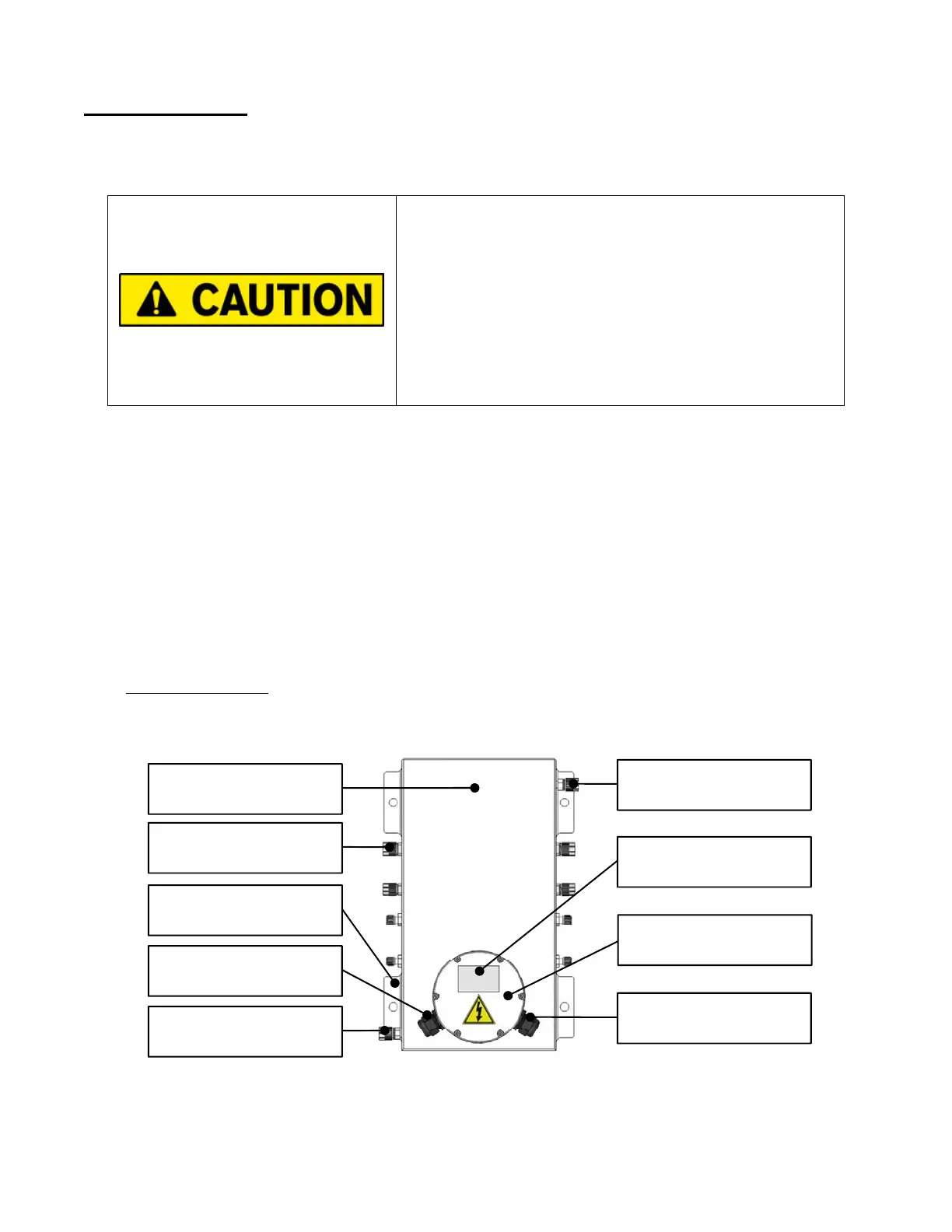

Figure 2: Component Identification
Purge Inlet
Connection
Model/Serial # Tag
Signal Cable Location
(
not shown for clarit
y)
Power Cable Location
(
not shown for clarit
y)
Process Connections
(
4 inlet
,
4 outlet
)
Heater Housing
Purge Outlet/Drain
Connection
Mounting Tabs (X4)
Electrical Junction Box
