*Due to occasional product upgrades, this manual is for reference only.

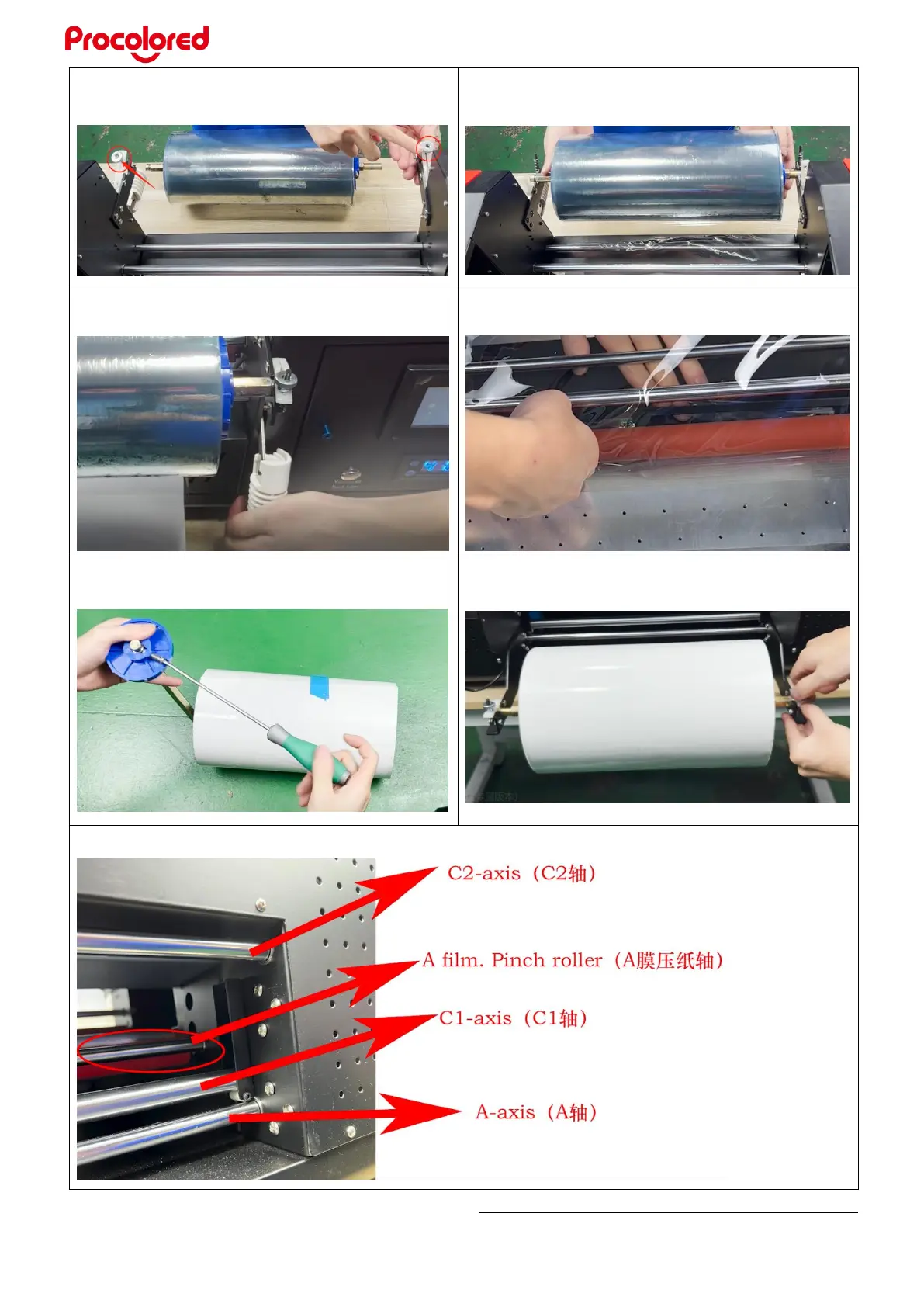

3.7 Unscrew the screws which is in the front
of the machine to put B film reel
3.8 Place the reel holder in the groove and
note the direction of rotation of the reel
3.9 Press down the wheel control handle
3.10 Install B film (through rail), straighten it up
3.11 Same way to assemble the A film rod,
center the roller and tighten the screws
3.13 A film passes under A-axis and A film pinch roller
