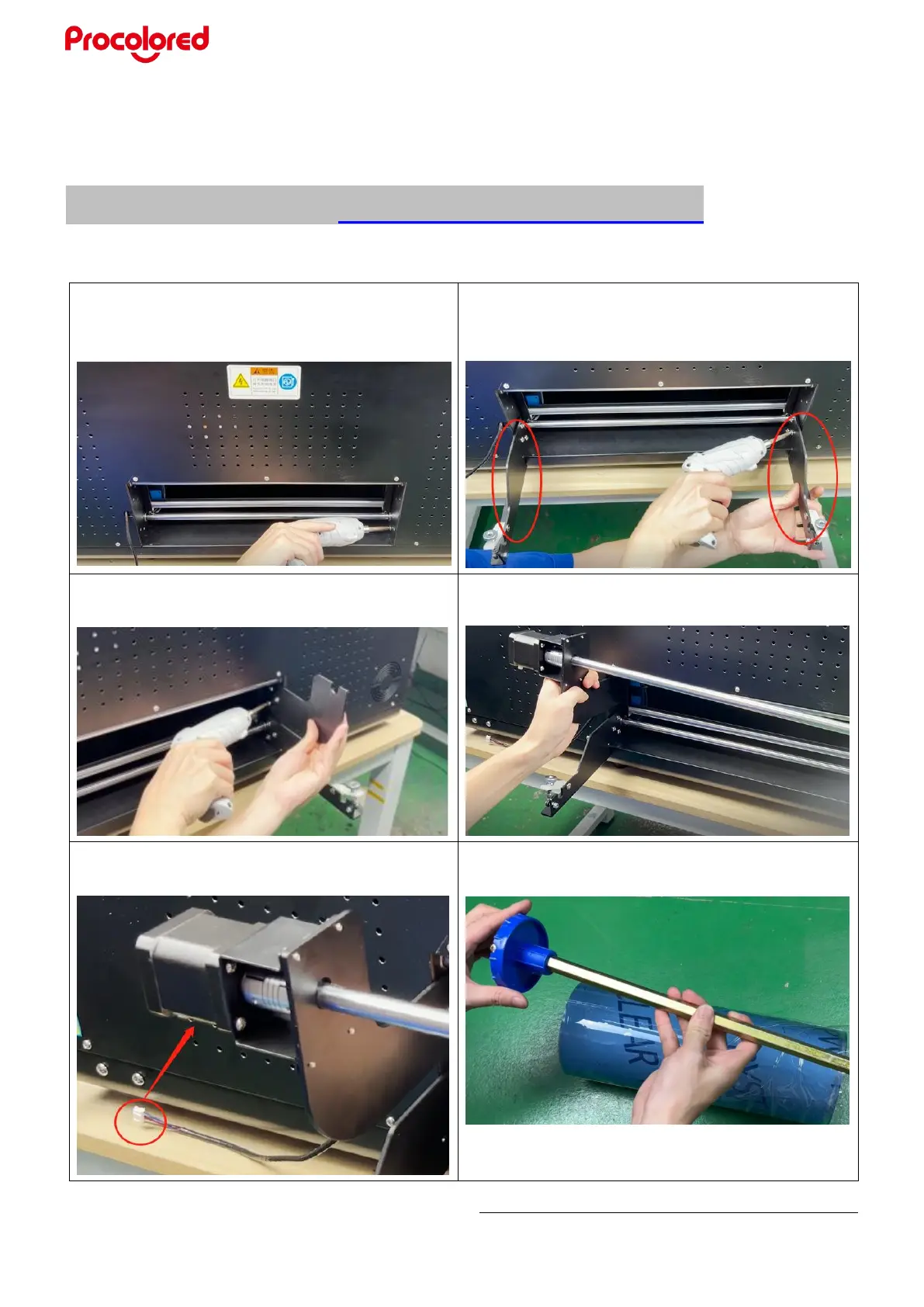

3. AB Film Installation and Machine
Performance Test
Refer to YouTube video: https://youtu.be/yGXxoSaOR7M
3.1 Install A film rod and B film rod.
First remove the 12 screws with screwdriver
3.2 Install the fixing bracket of the A film
3.3 Install C3 axis bracket
3.4 Install the electric transfer film shaft (C3
axis)
3.5 Insert the white terminal socket into the
motor interface
3.6 Assemble the B film rod, center the roller
and tighten the screws
