CONNECTING TO GAS SUPPLY
Continued
FUEL REQUIREMENTS:
z Connect regulator/hose with standard 20-pound
LP cylinder coupler.
z Call the LP gas supplier to inspect the cylinder.
Do not use a damaged LP gas cylinder.
z Do not use LP gas without proper
decompression.
z Do not connect irregular LP gas supply with
heater.
Natural Gas Model
A.
Turn over the fireplace,dismantle the main burner
injector and safety pilot injector with two wrench.
B. Assemble the NG main burner injector and NG
safety pilot injector provided with two wrench
(Figure 13).
Note: Make sure the pilot burner point to
thermocouple.
C. Follow the above steps 1 to 11. Make certain all
gas connections are right.
D. Connect the ON/OFF gas valve of the appliance to
the incoming gas supply line.
E. Turn the ON/OFF valve at the appliance slowly to
the “ON” position.Use a soap and water solution to
test for leaks.
CAUTION: It is dangerous to use a damaged
or rusted cylinder.
OPERATING HEATER
Warning: Fire, burn, inhalation and explosion
hazard. Keep solid combustibles, such as
building materials, paper or cardboard, at safe
clearances from the heater. Never use heater in
the v icinity of gasoline, solvent, paint thinner or
other combustibles.
Caution: When heater runs in the presence of
other people, the user is responsible to properly
offer those present safety precautions and
hazard information.
LIGHTING INSTRUCTIONS:
Follow adaptable lighting instructions. Apply soap
solution to all joints. Bubbles forming show a leak.
Do not use a match or an open flame to detect
leak. Light heater after ensuring that no gas leak
exists.
START HEATER:
1. Turn the control valve knob clockwise to the
“OFF” position.
2. Turn the door knob clockwise and open the
heater door.
3. Check all connections as described in the
“Connecting to Gas” section of this manual on
page 5.
4. Fully open the in let gas valve .
5. Push in gas control knob and turn it to IGN/ON
position. Then press the ignition button
repeatedly until there is a flame at the pilot.
6. Keep control knob pressed in for 30 seconds
after ignition, then release.
7. Turn the burner on to maximum rate and then
set to desired setting or remain on HI.
8. Replace heater compartment door.

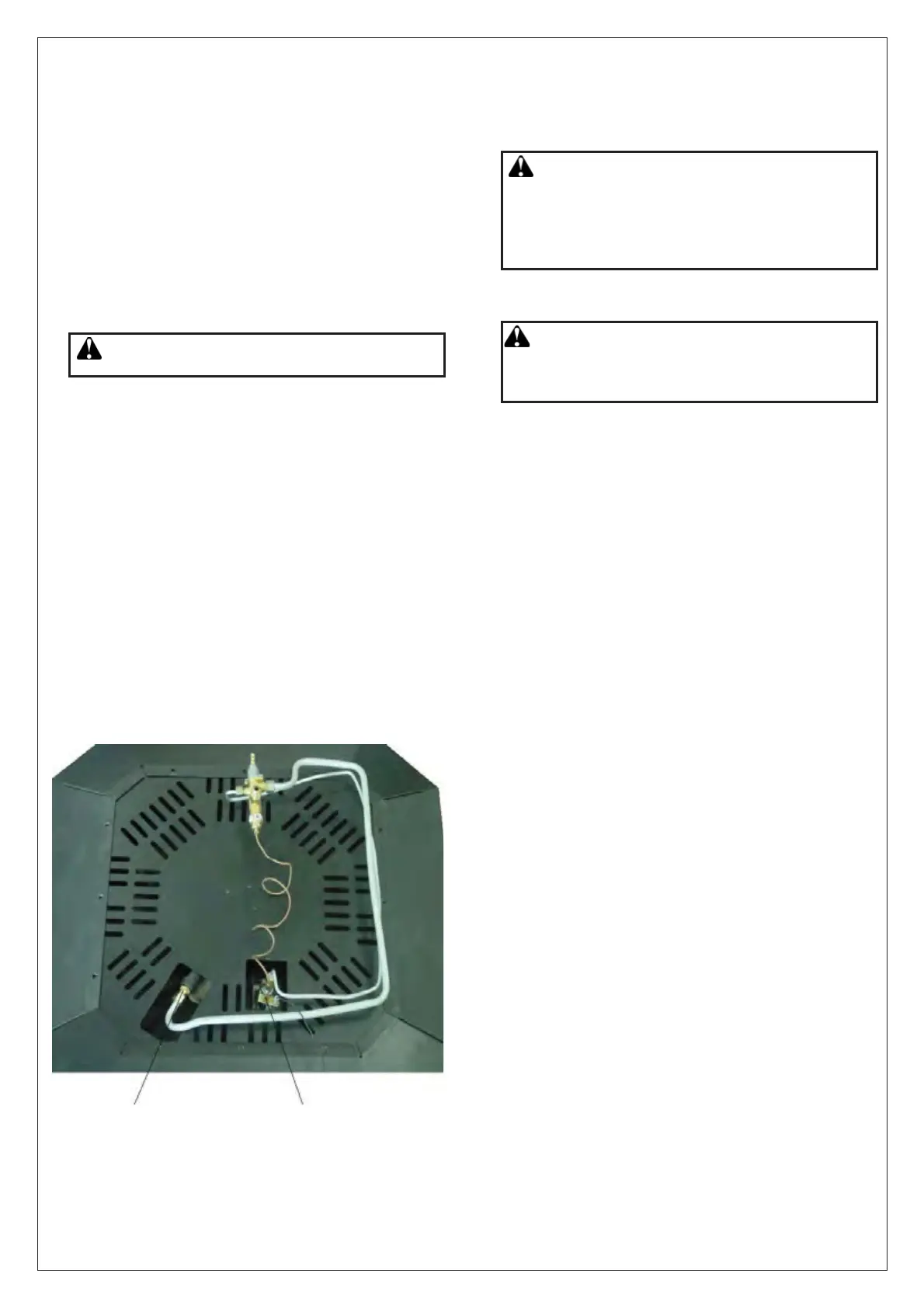

Figure 13
main burner injector pilot burner injector
