INSTALLATION

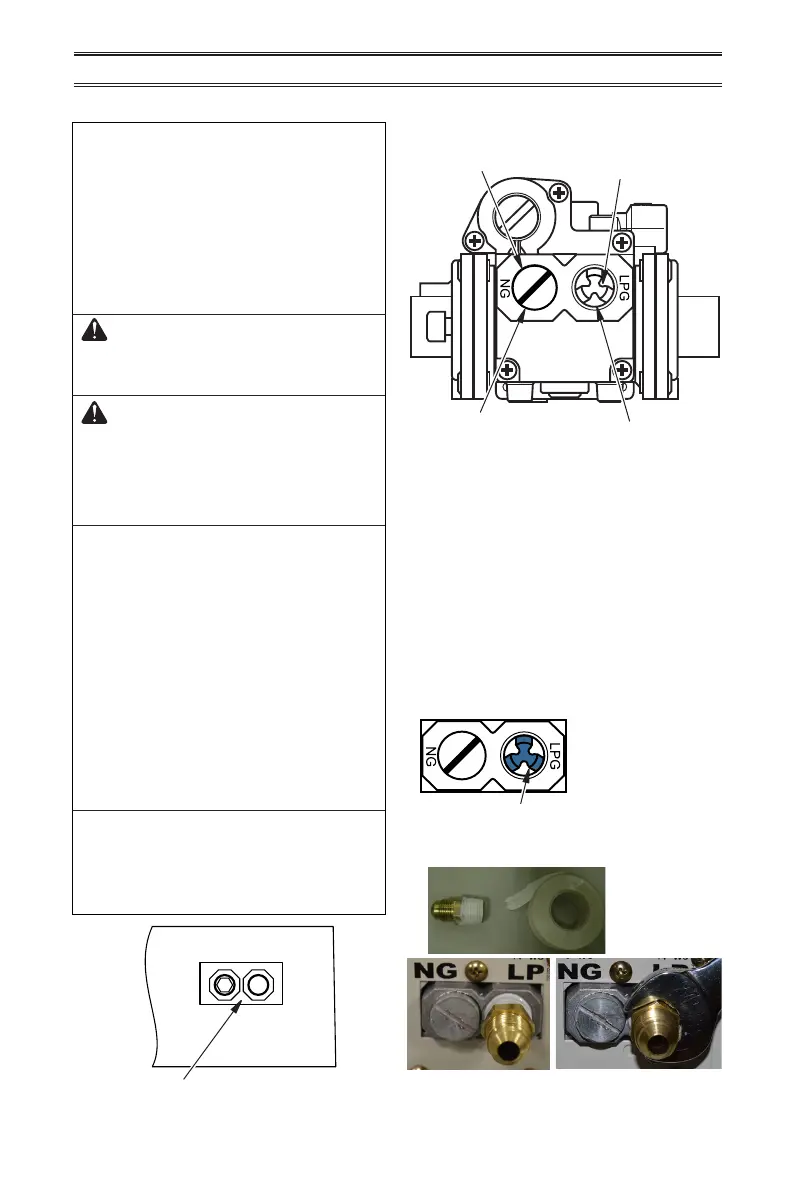

Figure 14 - Bottom of Heater
Yellow Natural Gas
Plunger Underneath
Metal Cap
Blue Propane
Gas Plunger
Figure 15 - Gas Regulator
Insert Gas Fitting
for Natural Gas
Insert Gas Fitting
for Propane Gas
GAS SELECTION
This appliance is factory
preset for propane gas. No
changes are required for
connecting to propane. Only
a qualied installer or service
technician can perform gas se-
lection and connecting to gas
supply.
CAUTION: Two gas line
installations at the same time
are prohibited.
CAUTION: To avoid gas
leakage for the gas not being used
at the inlet of regulator, a qualied
installer or service technician
must use supplied cap.
You will notice a color coded
plunger on the inside of the
regulator. This is normal. When
the inlet connection tting is
inserted and tightened, this
plunger will be pushed back
by the tting making all of the
adjustments for the gas being
supplied. DO NOT REMOVE THE
PLUNGER. The regulator will
not work and the warranty will
be voided.
The inlet regulator is color coded
for identication of the correct
gas type. Blue is for propane (LP
gas) and yellow is for natural gas.
FOR PROPANE GAS
INSTALLATION: BLUE
Apply thread sealant to the threads on a 3/8"
NPT brass connection tting. While pushing
in, rotate the tting clockwise until the threads
engage the regulator. After the tting has been
hand tightened into the regulator use a wrench
to complete tightening of the tting. Install ad-
ditional tting to connect to the house supply.
FOR NATURAL GAS
(
NG
)
NG
LPG
INLET GAS PRESSURE
MAX 1/2 PSIG (3.5 KPA)
Gas Connection
Fitting
supplied
by installer,
may vary.
Never use a pipe
nipple or thin-walled
tting. Fitting must
push plunger to set
gas type.
DO NOT REMOVE
Blue Propane Plunger
Install Gas Fitting Here
