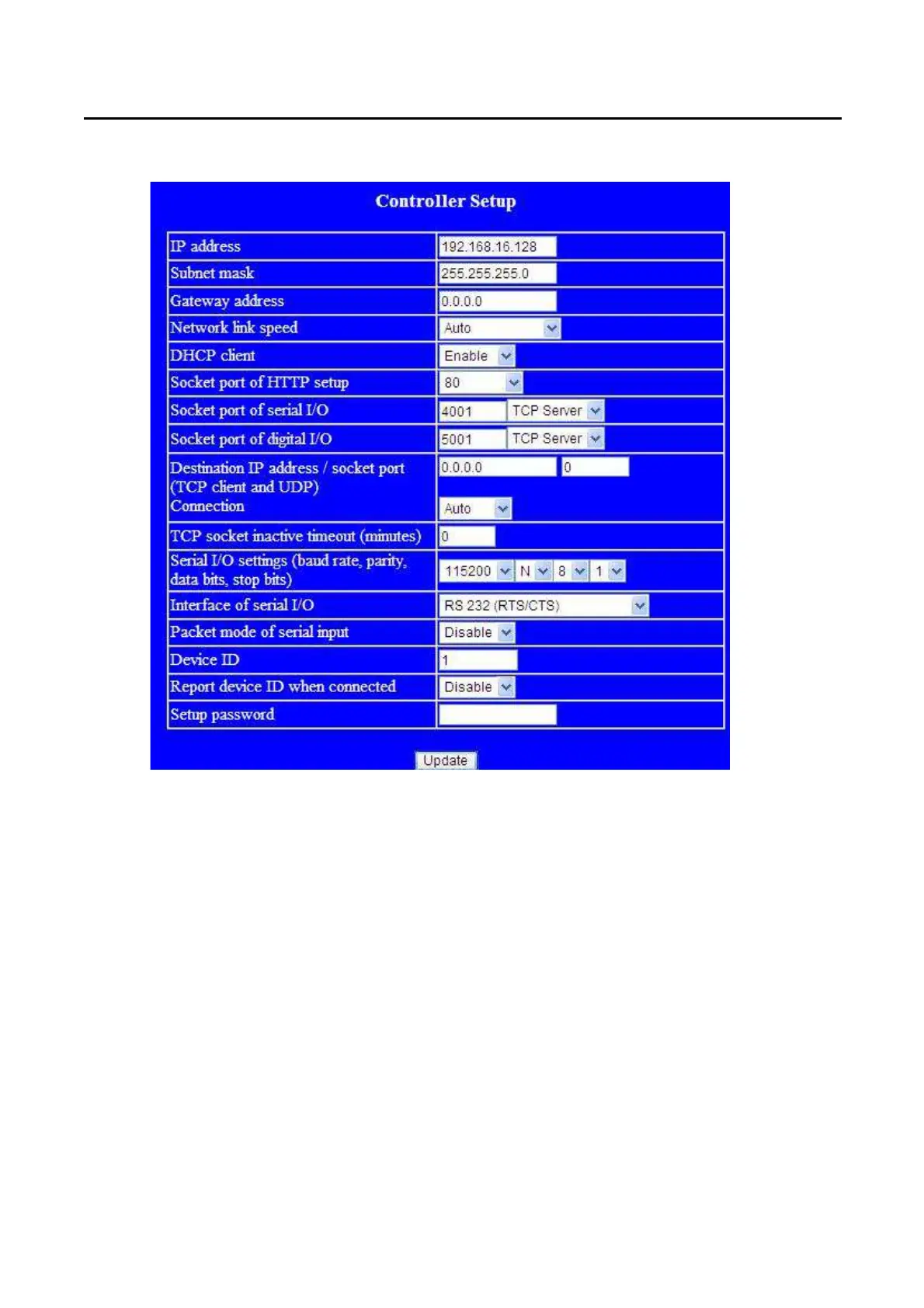

5. It will be shown the Setup Device as the following figure if all steps was corrected to be run.
6. Insert the numbers as the following :
6.1 IP Address: as recommended according to your network
6.2 Subnet Mask: as recommended according to your network
6.3 Gateway Address: as recommended according to your network
6.4 Network link speed: Auto
6.5 DHCP client: Enable
6.6 Socket port of HTTP setup: 80
6.7 Socket port of serial I/O: 4001
，
TCP Server
6.8 Socket port of digital I/O: 5001
，
TCP Server
6.9 Destination IP address / socket port (TCP client and UDP) Connection: Auto
6.10 TCP socket inactive timeout(minutes)：Set the network disconnection after N minutes,
set 0 minutes will work forever
.
6.11 Serial I/O settings (baud rate, parity, data, bits, stop bits): 115200, N, 8, 1
6.12 Interface of serial I/O: RS 232
(RTS
/
CTS)
6.13 Packet mode of serial input: Disable
6.14 Device ID : 5
6.15 Report device ID when connected：Auto
6.16 Setup password: Not required
