FUNCTIONAL DESCRIPTION
IV.1 Control Area. Communications
Thanks to BRAVE protocol, among other benefits, most Quantum units can
service two independent bidirectional IP audio communications:
1. PROGRAM or CODEC 1
2. TALKBACK or CODEC 2

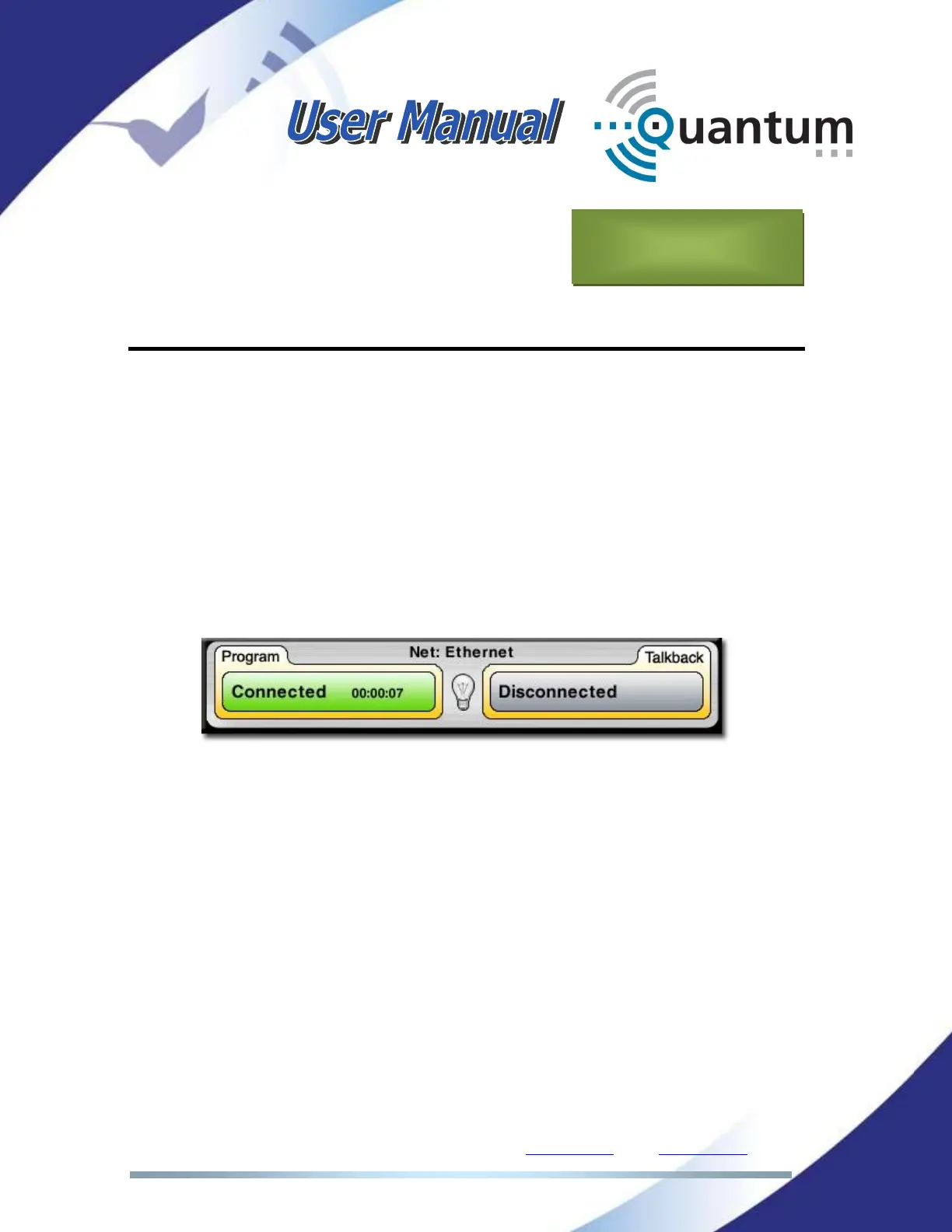

Each communication is operated and displays its actual status by means of a
touch button on the control area of the main screen.
Possible communications statuses are:
 Disconnected (channel idle; ready for next connection)
 Connecting (establishing the connection)
 Connected (streaming is ongoing)
 Reconnecting (resuming the connection)
 Down (Ethernet or 3G/4G modem not detected)
 Negotiating DHCP (acquiring IP address)
In 3G/4G and Custom modes, the communication bars show a series of small
circles, one for each of the participant interfaces in the communication. These
circles are grey when the interface is detected but the link is disconnected; green
when the link is active and red when the link is down. When a circle blinks is
because communication is being established in that interface:
