PROEL PSW2600 - Configurations and Connectivity; Suggested Speaker Configurations; Connector and Cable Information

SMARTPLUS series 4 x SMT18SP8
(+2 X SMT15P8 FILTERED OUT)
NEXT series 4 x NEXT15HP8
TPR
MARKII series 2 x TPRK118SP8 4 x TPRK118SP8
4 x TPRK153P8
TFLV/TFL series 4 x TFL115SP8 4 x TFL118SP8
2 x TFL118SP8 4 x TFL215SP8
2 x TFL215SP4 2 x TFL218SP4
4 x TFL15P8 4 x TFL152P8
2 x TFL152P8 4 x TFL212P8
2 x TFL212P8
EDGE series 2 x EDGE12CXP 4 x EDGE12CXP
2 x EDGE112SP 4 x EDGE112SP
2 x EDGE15CXP
2 x EDGE12CXP BI-AMP (LOW SECTION + DS026) 2 x EDGE15CXP BI-AMP (LOW SECTION + DS026)
2 x EDGE121SP (LOW SECTION + DS026)
1 x EDGE218SP (LOW SECTION + DS026)
2 x EDGE212P (MID SECTION + DS026)
2 x EDGE12CXP BI-AMP (HI SECTION + DS026) 2-4 x EDGE12CXP BI_AMP (HI SECTION + DS026)
2 x EDGE15CXP BI-AMP (HI SECTION + DS026) 2-4 x EDGE15CXP BI_AMP (HI SECTION + DS026)
2 x EDGE212P (HI SECTION + DS026) 2-4 x EDGE212P (HI SECTION + DS026)
AXIOM series 2 x AX1121SP (LOW SECTION + DS026)
2 x AX3210P (MID SECTION + DS026)
2 x AX3210P(HI SECTION + DS026) 2-4 x AX3210P (HI SECTION + DS026)
SPEAKER PSW1800 PSW2600
14
CONFIGURAZIONI CONSIGLIATE - CONNETTORI
SUGGESTED CONFIGURATIONS - CONNECTORS
CONFIGURACIONES ACONSEJADAS - CONECTORES
PSW SERIES
CONFIGURAZIONI Italiano
CONSIGLIATE
SUGGESTED English
CONFIGURATIONS
CONFIGURACIONES Español
ACONSEJADAS
1
2
3

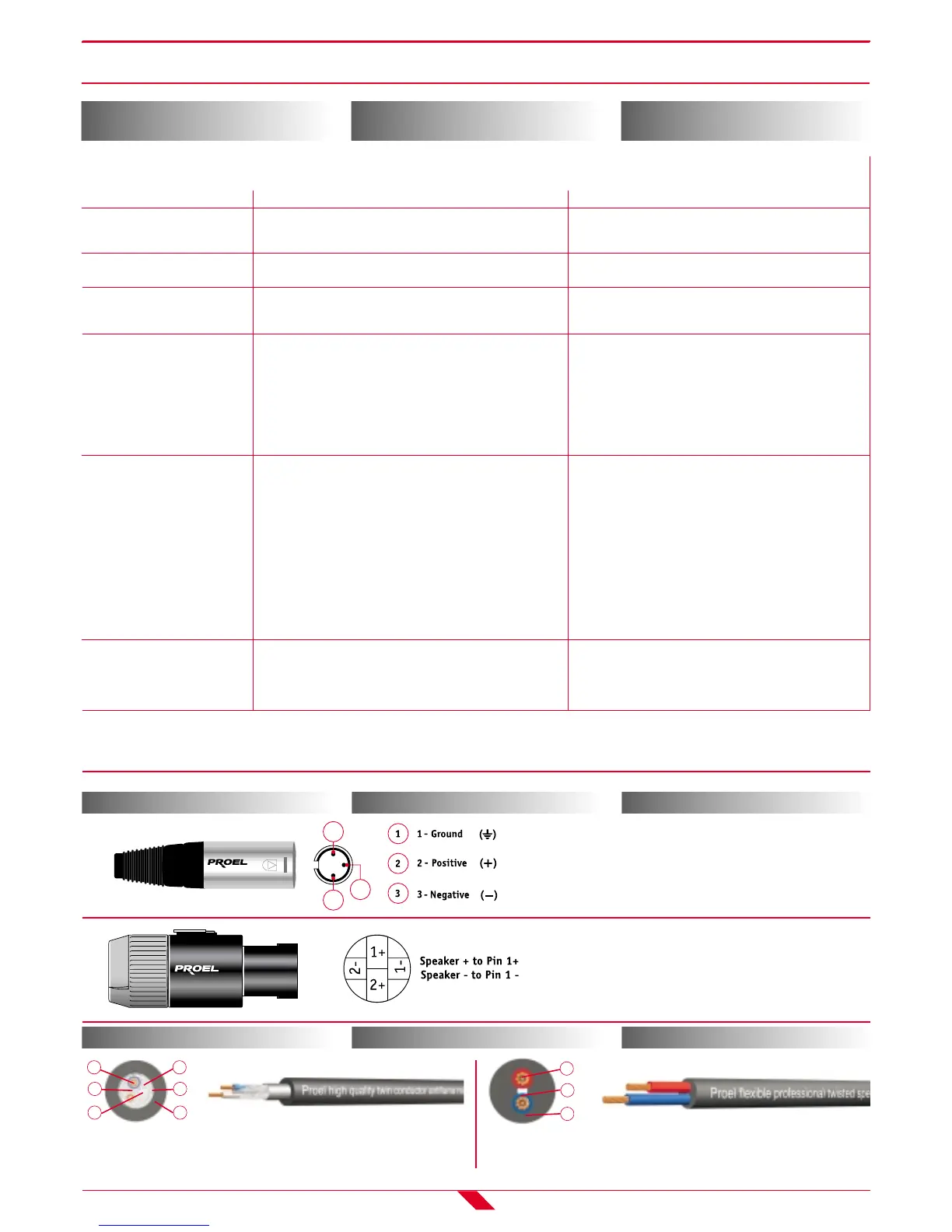

XLR balanced (Input Signal Connector)
2-positive / 3-negative / 1-ground
XLR unbalanced
2-positive / 3-negative connected to 1-ground
CONNETTORI Italiano CONECTORES EspañolCONNECTORS English
CAVI CONSIGLIATI Italiano CONECTORES EspañolSUGGESTED CABLES English
POWER CONNECTOR
1+ / 1- connected
2+ / 2- not connected
4
5
6
1
2
3
1
2
3
HPC624
HPC250
1)Tinned copper 22 AWG = 7 x 0,20mm (0,22mm
2
)
2)PE ø 1.36mm
3)Tinned copper 24 AWG = 7 x 0,20mm (0,22mm
2
)
4)Conductors: Spiral cotton filter
5)Cable: Tinned copper braid 6x16x0,10 mm > 95%
6)FLEXIBLE PVC 60 shore ø 6.50 mm
1)Bare copper 12 AWG = 80x0,25mm (4.00 mm
2
)
2)PVC ø 4.00mm
3)FLEXIBLE PVC 60shore ø 11.00 mm
