ASSEMBLY
Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Assembly requires the included allen wrench
and your own phillips screwdriver .
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.
If you have additional questions, please call our our Customer Service Department at 0345-089009.

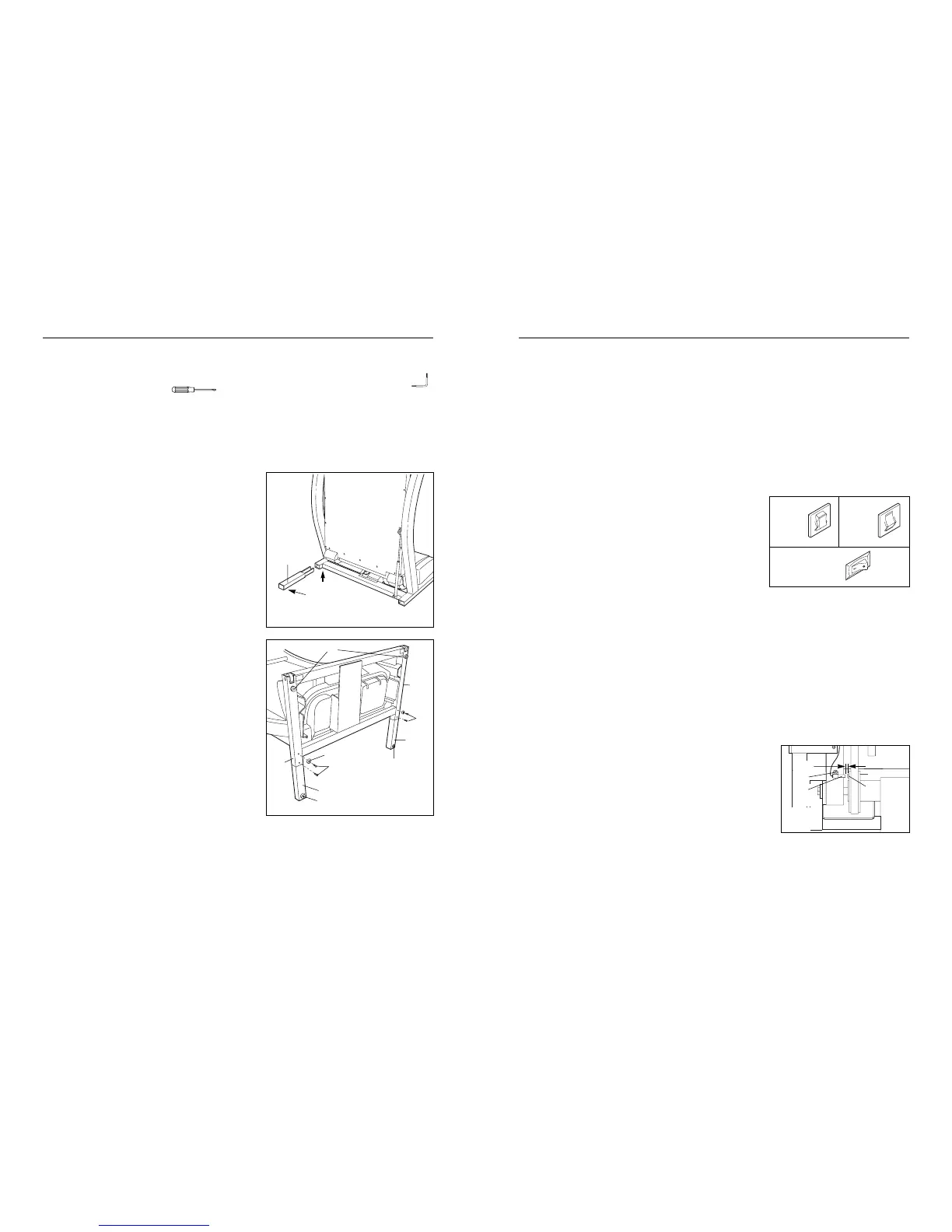

1. With the help of a second person, carefully raise the
treadmill to the upright position.
While a second person tips the treadmill to one side and
holds it, insert one of the Extension Legs (103) into the
treadmill as shown. Make sure that the Extension Leg is
turned so the Base Pad (97) is on the bottom.
Next, tip the treadmill to the other side and insert the
other Extension Leg (not shown) in the same way. Lower
the side of the treadmill so that both Extension Legs
(103) are resting flat on the floor.
2. With the help of a second person, carefully tip the
Uprights (82) down as shown. Make sure that the
Extension Legs (103) remain in the Uprights.
Attach each Extension Leg (103) with two Screws (101)
and a Base Pad (97) as shown.
With the help of a second person, carefully tip the
Uprights (82) back to the vertical position.
Note: One replacement Thick Base Pad (97) may be
included. Use the extra Pad if one becomes worn or
needs to be replaced.
103
97
1
2
101
97
97
101
103
103
82
97
97
97
TROUBLE-SHOOTING
Most treadmill problems can be solved by following the simple steps below. Find the symptom that
applies, and follow the steps listed. If further assistance is needed, call our Customer Service Department
at 0345-089009.
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a properly earthed outlet. (See HOW TO PLUG IN
THE POWER CORD on page 8.) If an extension cord is needed, use only a 3-conductor, 14-
gauge (1mm
2
) cord that is no longer than 1.5 meters (5 feet). Important: The treadmill is not com-
patible with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the con-
sole. See step 1 on page 10.
c. Check the circuit breaker located on the treadmill near
the power cord. If the switch protrudes as shown, the
circuit breaker has tripped. To reset the circuit breaker,
wait for five minutes and then press the switch back in.
d. Check the on/off switch located on the treadmill near
the power cord. The switch must be in the on position.
e. Check the fuse in the power cord shown on page 7. If
the fuse is blown, replace it with an equivalent fuse.
PROBLEM: The power turns off during use
SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see 1. c. above). If
the circuit breaker has tripped, wait for five minutes and then press the switch back in.
b. Check the fuse in the power cord. Replace the fuse if required.
b. Make sure that the power cord is plugged in.
c. Remove the key from the console. Reinsert the key fully into the console. See step 1 on page 10.
d. Make sure that the on/off switch is in the on position.
e. If the treadmill still will not run, please call our Customer Service Department.
PROBLEM: The speed display on the console does not function properly
SOLUTION: a. Remove the key from the console and UNPLUG THE
POWER CORD. Remove the screws from the hood and
carefully remove the hood. Locate the Reed Switch (21)
and the Magnet (43) on the left side of the Pulley (42).
Turn the Pulley until the Magnet is aligned with the Reed
Switch. Make sure that the gap between the Magnet
and the Reed Switch is about 3 mm. If necessary,
loosen the Small Screw (76) and move the Reed Switch
slightly. Retighten the Screw. Re-attach the hood, and run
the treadmill for a few minutes to check for a correct
speed reading.
PROBLEM: The pulse display on the console does not function properly
SOLUTION: a. Wash your hands prior to using the pulse sensor. Clean the sensor with a damp cloth and soap.
b. Make sure that there is not a bright light or direct sunlight shining directly on the pulse sensor.
