5. Make sure that all parts are tightened before you use the treadmill. Keep the included allen wrench in a
secure place. The allen wrench is used to adjust the walking belt (see page 21). To protect the floor or carpet
from damage, place a mat under the treadmill.
4
3. Locate the plastic tie in the post on the left Upright (82).

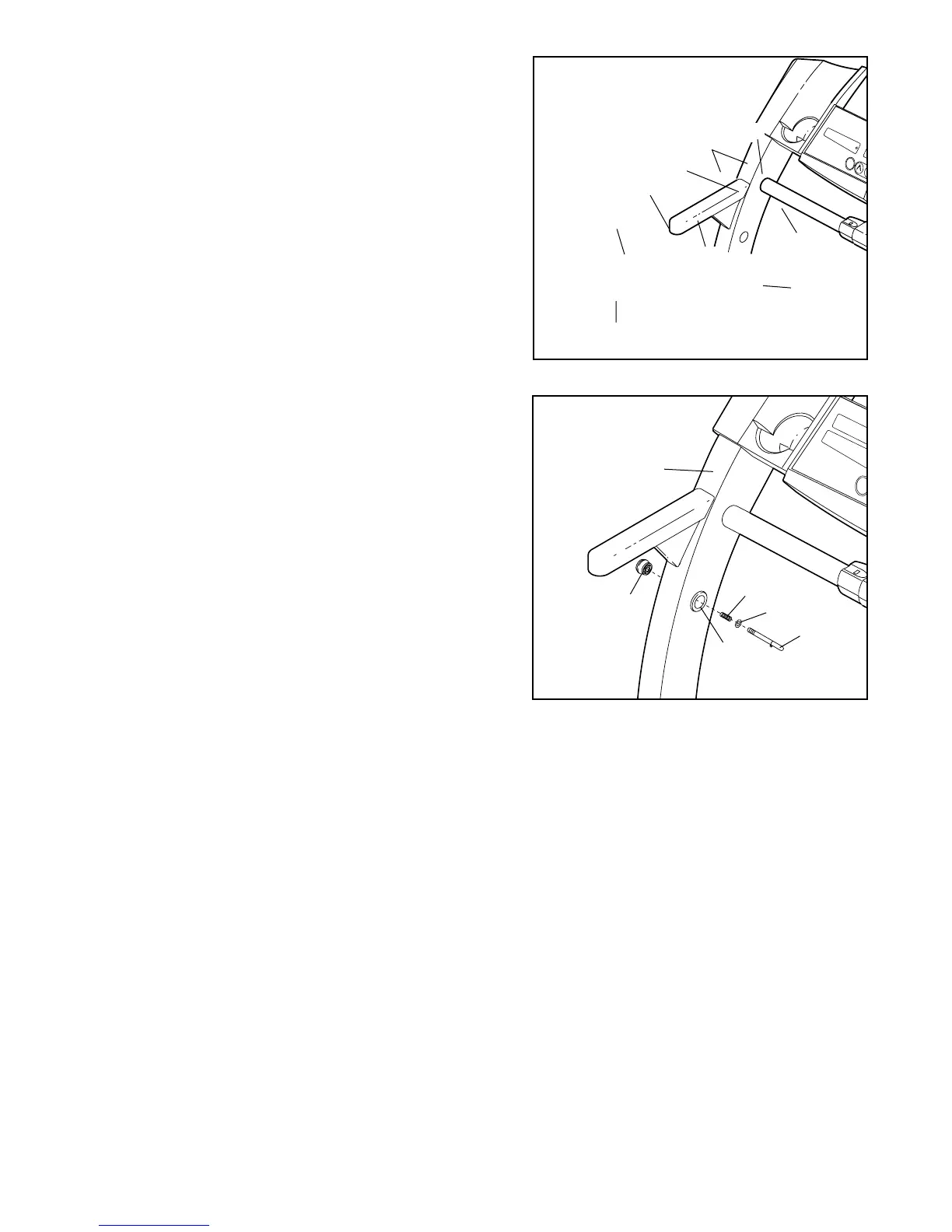

Hold a Handrail Extension (85) in the position shown.
Insert the plastic tie into the Handrail Extension as you
insert the Handrail Extension into the post. Attach the
Handrail Extension with three Short Screws (76). Note:
The plastic tie is tied to the Hand Pulse Wire (124). Be
careful to avoid damaging the Hand Pulse Wire. The
Hand Pulse Wire is used with the optional chest pulse
sensor (see page 18).
Slide a Handrail Foam Grip (110) onto the Handrail
Extension (85). (If it is difficult to slide on the Foam Grip,
place a small amount of warm water and dish soap in the
Foam Grip.) Press an Plastic Fastener (47) into the
Handrail Foam Grip.
Attach the other Handrail Extension (85) and Handrail
Foam Grip (110) to the right Upright (not shown). Note:
There is not a pulse wire in the right Upright.
4. Make sure that the Lock Knob Sleeve (111) is fully in-
serted into the left Upright (82).
Remove the Lock Knob (102) from the Lock Pin (115).
Make sure that the Lock Pin Collar (113) and the Spring
(112) are on the Lock Pin. Insert the Lock Pin into the left
Upright (82) and tighten the Lock Knob onto it.
76
82
110
47
76
Post
85
124
Plastic Tie
3
113
115
111
112
102
82
To Next Page
