9. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included allen wrenches in a secure place. The large allen wrench is used to adjust the
walking belt (see page 17). To protect the floor or carpet, place a mat under the treadmill.
8. Attach the Storage Latch (29), with the Latch Spacer
(44), to the left Upright (69) with two 3/4” Screws (2) as
shown.
Do not overtighten the Screws.
2
69
29
44
8
49
42
G
round
Wire
36
32
47

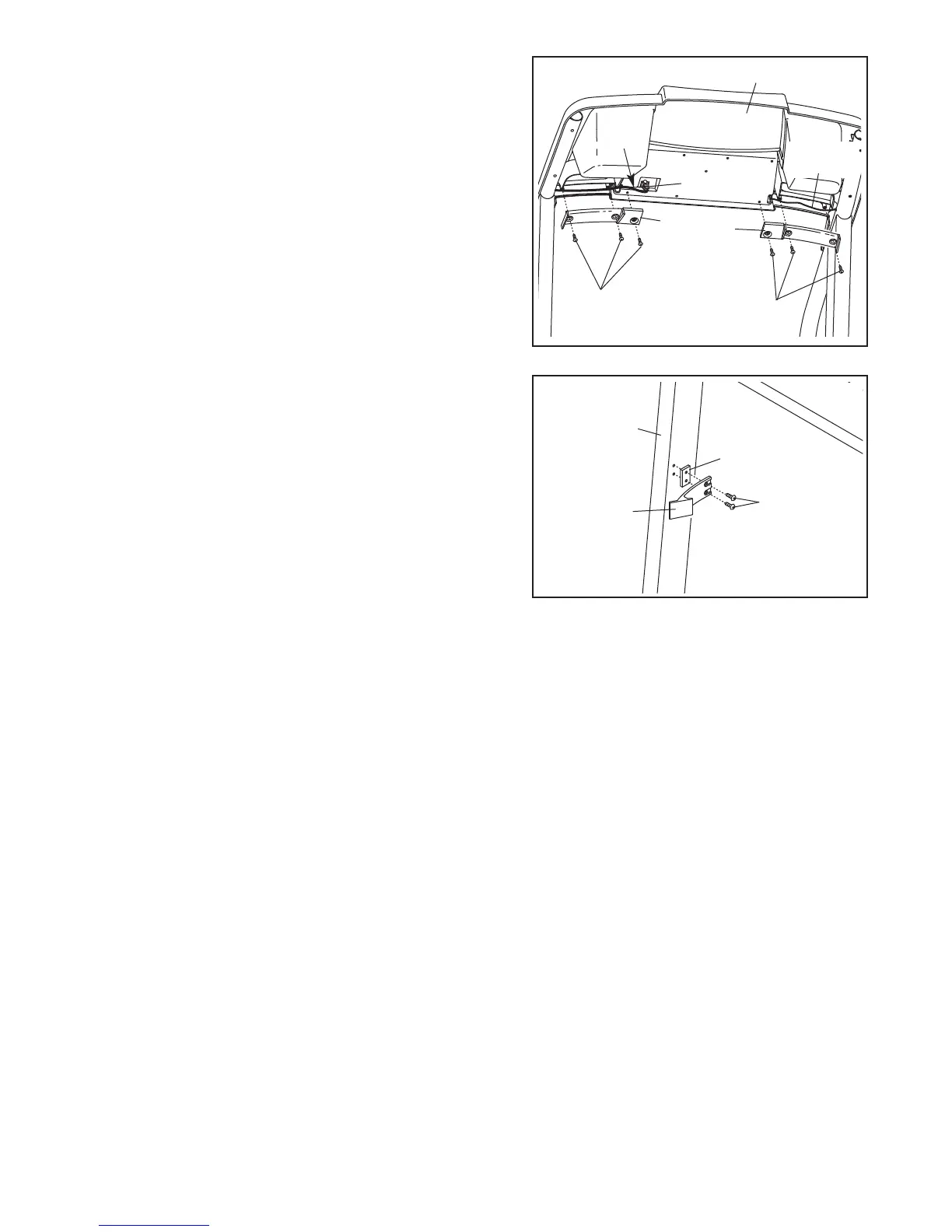

7. Press the Upright Wire (42) into the slot in the underside
of the Console Base (47) in the indicated area. Cover the
U
pright Wire with the Right Grip Plate (36). B
e careful
not to pinch the Upright Wire. Tighten three 1/2”
S
crews (49) into the Right Grip Plate and the Console
Base.
Attach the Left Grip Plate (32) over the ground wire and
the other wires with three 1/2” Screws (49).
Be careful
not to pinch any of the Wires.
7
49
S
lot
