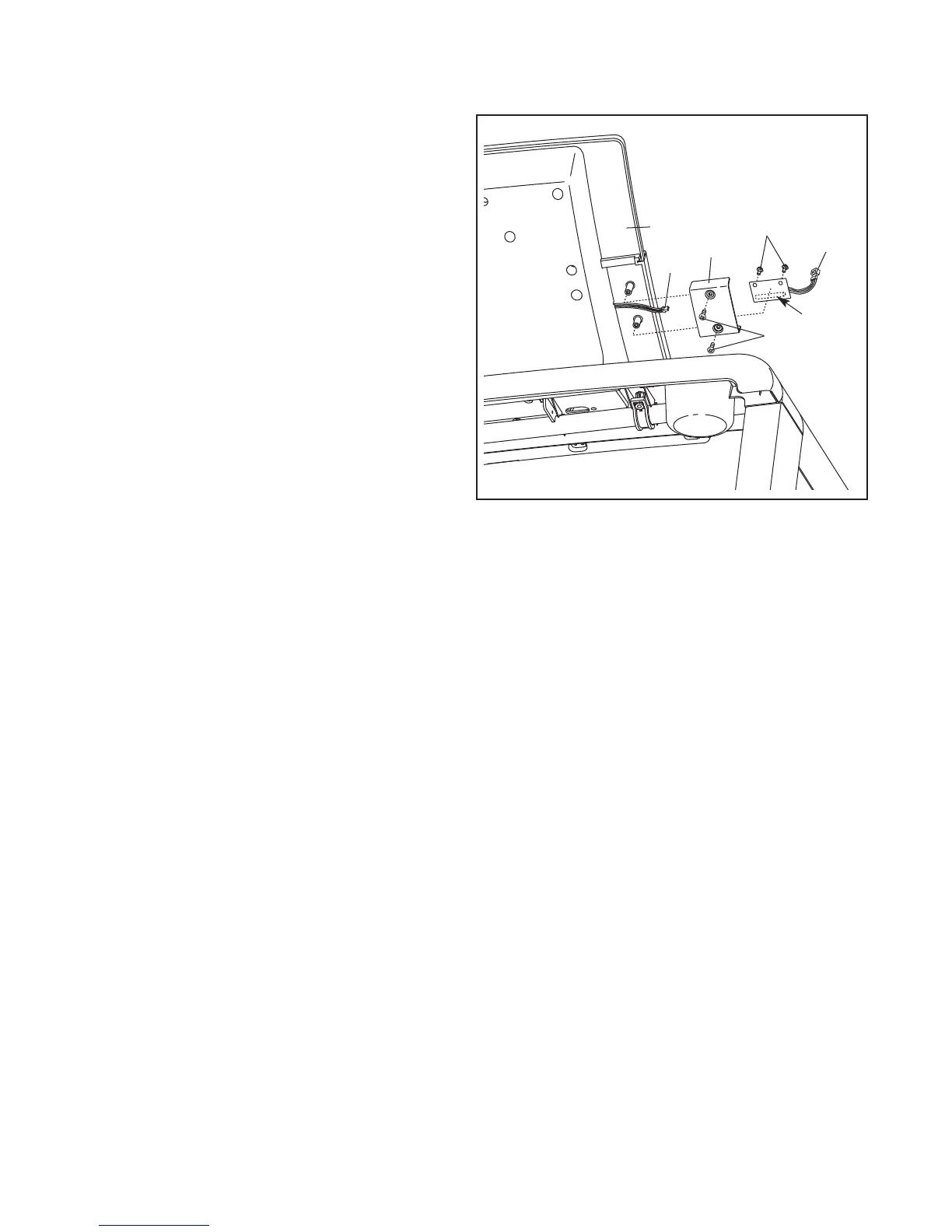

If you purchase the optional chest pulse sensor (see page 19), follow the steps below to install the re-
ceiver included with the chest pulse sensor.
1. Make sure that the power cord is unplugged.
R
emove the 1/2" Screws (1) and the Access
Door (87) from the Console Back (91).
2. Connect the wire on the receiver (A) to the indi-
cated wire extending from the Console Back
(91).
Hold the receiver so the small cylinder
is oriented as shown and is facing the
Console Back.
Attach the receiver to the plastic
posts on the Access Door (87) with the two in-
cluded small screws.
3.
Make sure that no wires are pinched.
Reattach the Access Door (87) with the 1/2"
Screws (1). Discard the other wires included
with the receiver.
A
87
Small
Cylinder
1
91
Wire
Small
Screws
