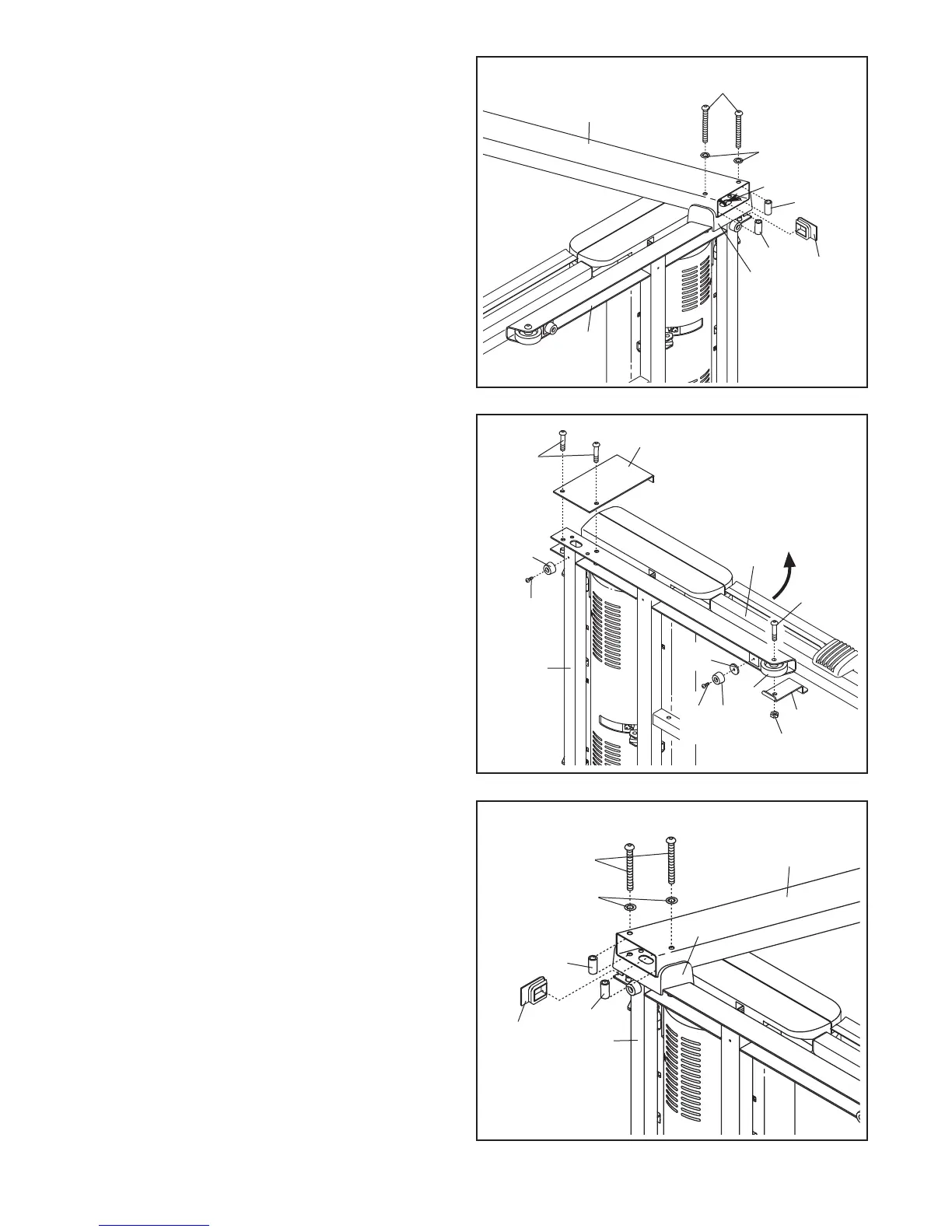

6. With the help of a second person, hold a Bolt
Spacer (80) inside the lower end of the Left
Upright (74). Insert a 3/8" x 4 1/2" Bolt (6) with a
3/8" Star Washer (9) into the Left Upright and
the Bolt Spacer. Repeat this step with a sec-
ond Bolt Spacer (80), 3/8" x 4 1/2" Bolt (6),
and 3/8" Star Washer (9).
Orient the Left Upright (74) and the Left Upright
Spacer (76) as shown. Hold the Left Upright
Spacer and the Left Upright against the Base
(83). Tighten the two 3/8" x 4 1/2" Bolts (6) with
your fingers; do not fully tighten the Bolts yet.
Press a Base Endcap (77) into the Base (83).
With the help of a second person, tip the tread-
mill so that the Base (83) is flat on the floor.
76
74
6
83
80
80
77
9
6
5. With the help of a second person, carefully tip
the treadmill onto its right side. Partially fold the
Frame (56) so that the treadmill is more stable;
do not fully fold the Frame yet.
Remove and discard the two indicated bolts (A)
and the shipping bracket (B).
Attach a Base Pad (81) to the Base (83) in the
location shown with a 1" Tek Screw (2) and a
Base Pad Spacer (13). Then, attach another
Base Pad (81) with only a 1" Tek Screw (2).
Remove the 3/8" Nut (8), the 3/8" x 2" Shoulder
Bolt (32), and the shipping bracket (C) from the
Base (83). Attach a Wheel (84) with the Bolt and
the Nut that you just removed. Do not over-
tighten the Nut; the Wheel must turn freely.
Discard the shipping bracket.
5
83
84
56
32
8
81
2
81
13
2
4. Hold a Bolt Spacer (80) inside the lower end of
t
he Right Upright (78). Insert a 3/8" x 4 1/2" Bolt
(6) with a 3/8" Star Washer (9) into the Right
Upright and the Bolt Spacer.
Repeat this step
with a second Bolt Spacer (80), 3/8" x 4 1/2"
B
olt (6), and 3/8" Star Washer (9).
Hold the Right Upright Spacer (79) and the
Right Upright (78) against the Base (83). Be
careful not to pinch the Upright Wire (38).
Tighten the 3/8" x 4 1/2" Bolts (6) with your fin-
gers;
do not fully tighten the Bolts yet.
Press a Base Endcap (77) into the Base (83).
79
78
38
9
77
8
0
80
6
4
83
C
B
A
