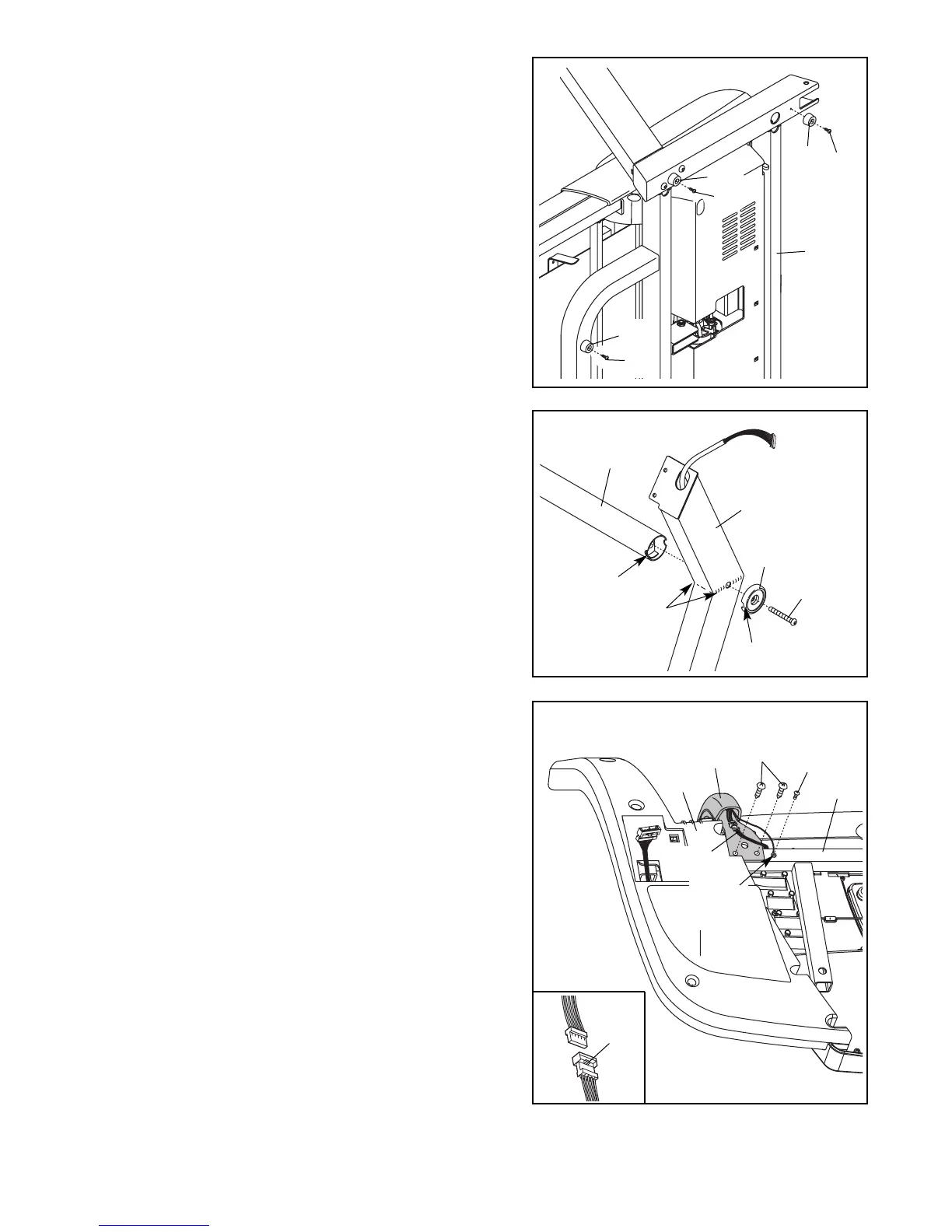

4. Turn the Console Base (85) upside-down; be careful not
to scratch the Console Base. Remove the bands and the
Console Back (not shown) from the Console Base. Hold
the ends of the Pulse Bar (110) against the Console
Base as shown. Connect the Pulse Wire (118) in the
Console Base to the pulse wire in the Pulse Bar (see the
inset drawing). The connectors should slide together
easily and snap into place. If the connectors do not
slide together easily and snap into place, turn one con-
nector and try to connect them again.
Open part bag B. Have another person hold the Pulse
Bar (110) firmly against the underside of the Console
Frame (7). Attach the Pulse Bar with four Pulse Bar
Screws (68) (only two are shown). Note: The Pulse Bar
Screws may be preattached and may need to be re-
moved. Firmly tighten the Screws. Be careful not to
damage the wires.
Attach the round ring on the ground wire to the Console
Frame (7) with a 1/2” Ground Screw (114). Note: There
are no wires on the other side of the Pulse Bar (110).
3. With the help of another person, raise the Right Upright
(82) and the Left Upright (not shown) to the vertical posi-
tion. Hold the Crossbar (90) between the Uprights, and
align the notches in the Crossbar with the indicated
welds on the Uprights. Attach each end of the Crossbar
with a 3/8” x 3 1/2” Bolt (81) and a Crossbar Endcap (84)
(only the right side is shown). Make sure that the
Crossbar Endcaps are turned so the notches are
aligned with the welds on the Uprights. Do not
tighten the Bolts yet.
82
90
81
84
Welds
Notch
Notch
Ground
Wire
118
118
3
4
2. Attach the six Base Pads (100) (three are shown) to the
bottom of the Base (109) with six 3/4” Tek Screws (47).
Note: The 3/4” Tek Screws are found in part bag C.
2
100
109
47
47
100
100
47
To Next Page
