9
10.Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included allen wrenches in a secure place. The large allen wrench is used to adjust the
walking belt (see page 27). To protect the floor or carpet, place a mat under the treadmill.

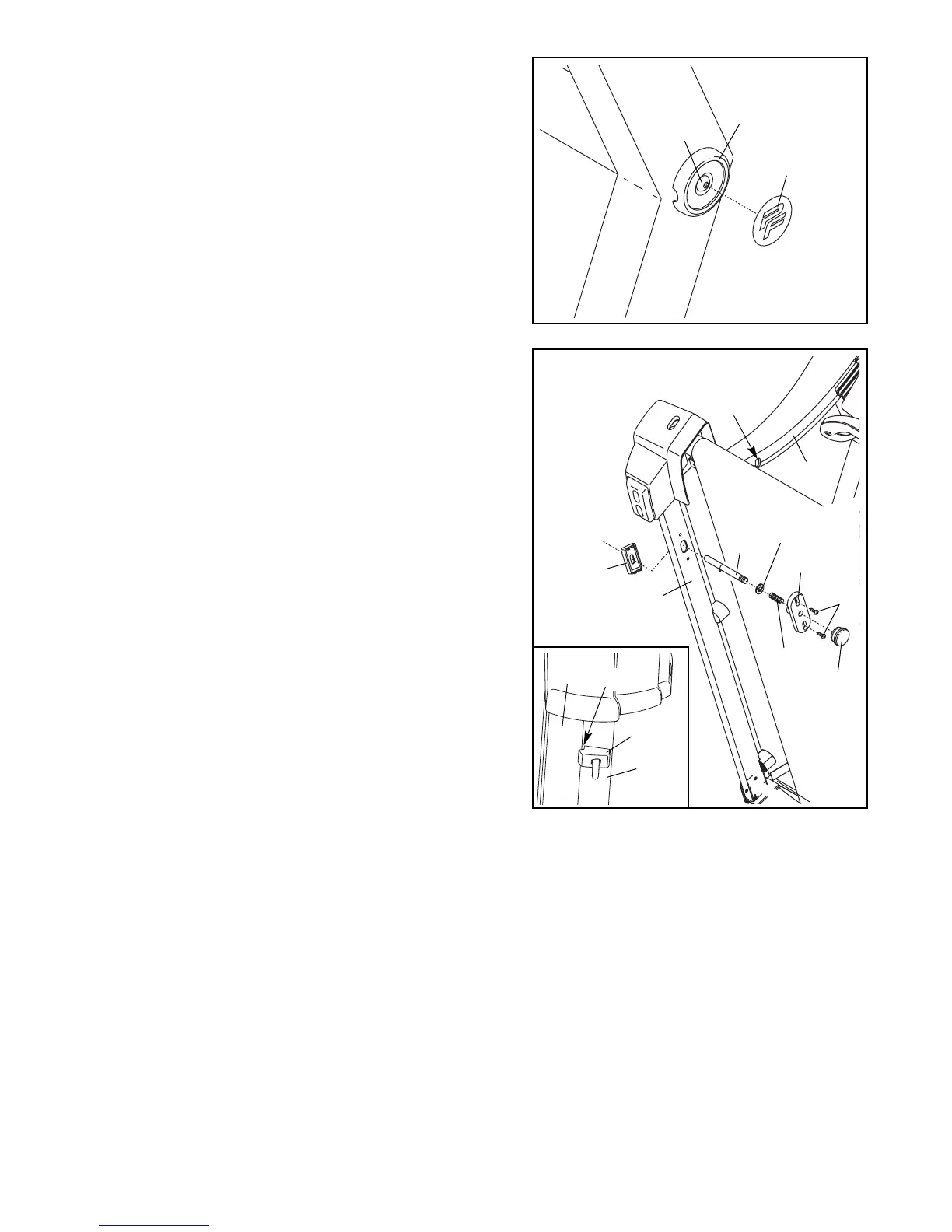

9. Remove the knob from the pin. Make sure that the collar
and the spring are on the pin as shown. Insert the pin
into the Latch Housing (75) and tighten the knob back
onto the pin.
With the help of another person, raise the Frame (54)
about halfway to the vertical position. While the other
person holds the Frame, hold the Latch Housing (75)
against the inside of the Frame. Thread two 3/4” Screws
(6) several turns into the Latch Housing and the Frame.
Press the Latch Cover (12) into the left side of the Frame
(54). See the inset drawing. Make sure that the notch in
the Latch Cover is positioned over the left Foot Rail (2)
as shown.
Align the pin with the hole in the Left Handgrip (76) by
sliding the Latch Housing (75) up or down. Make sure
that the pin can be inserted fully into the hole. Hold the
Latch Housing in place and tighten the two 3/4” Screws
(6). Be careful not to overtighten the Screws.
54
Spring
Knob
Collar
Pin
75
76
Hole
12
9
6
12
2
Notch
54
8. Tighten the two 3/8” x 3 1/2” Bolts (81). Apply a Cap
Decal (113) to each Crossbar Cap (84).
113
84
81
7
