1. Make sure that the power cord is unplugged.
With the help of a second person, carefully tip
the treadmill onto its left side as shown. Partially
fold the Frame (58) so the treadmill is more sta-
ble. Do not fully fold the treadmill until it is
completely assembled.
Attach two Base Pads (82) to the base of the
Uprights (84) with two 1” Tek Screws (83) as
shown.
Insert an Extension Leg (89) into the base of the
Uprights (84) as shown. Hold two Extension Leg
Nuts (67) in the bottom of the Extension Leg.
Next, insert two Extension Leg Bolts (65) into
the top of the Extension Leg, and firmly tighten
the Extension Leg Bolts into the Extension Leg
Nuts.
1
6
ASSEMBLY
T
o hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480.
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is
coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the
top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor-
mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild,
non-abrasive cleaner.
Assembly requires the included hex key and your own phillips screwdriver .

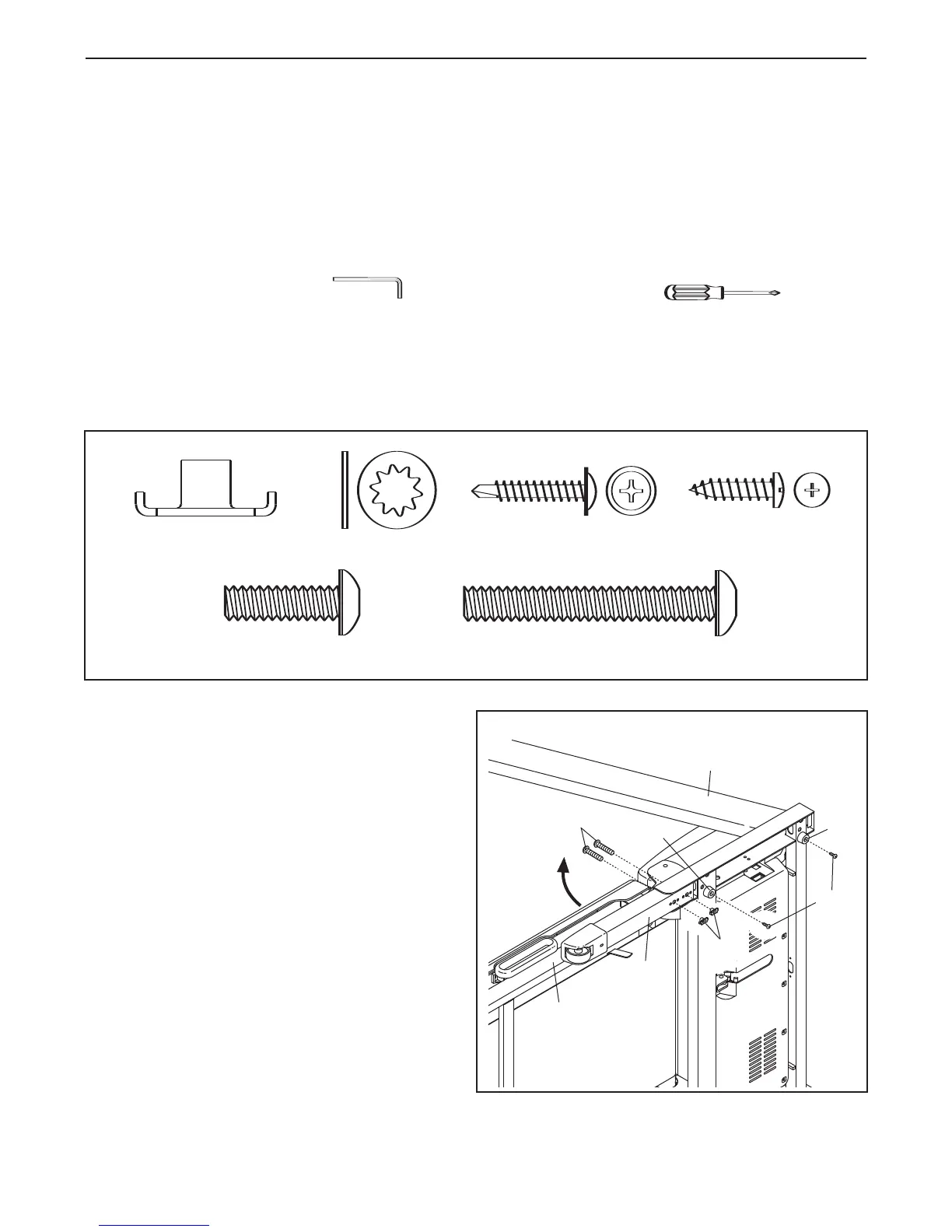

For help identifying the assembly hardware, see the drawings below.
The number in parentheses below each
drawing is the key number of the part, from the PART LIST on page 23. The number following the parentheses is
the quantity needed for assembly.
Note: Some small parts may have been pre-assembled. If a part is not in
the parts bag, check to see if it has been pre-assembled. To avoid damaging plastic parts, do not use
power tools for assembly.
89
58
82
82
84
83
65
67
Wheel Nut (13)–2
1
Wheel Nut (32)–2
W
1” Tek Screw (83)–4
Handrail Bolt (64)–4
3
1/2” Bolt (45)–4
S
E
xtension Leg Bolt (96)–4
3
Star Washer
(84)–2
Star Washer (8)–4
Console Bolt (64)–4
Extension Leg Nut (67)–4
Screw (43)–2
Extension Leg Bolt (65)–4
5
Extension Leg Bolt (96)–4
To Next Page
