12. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical exerciser.
11

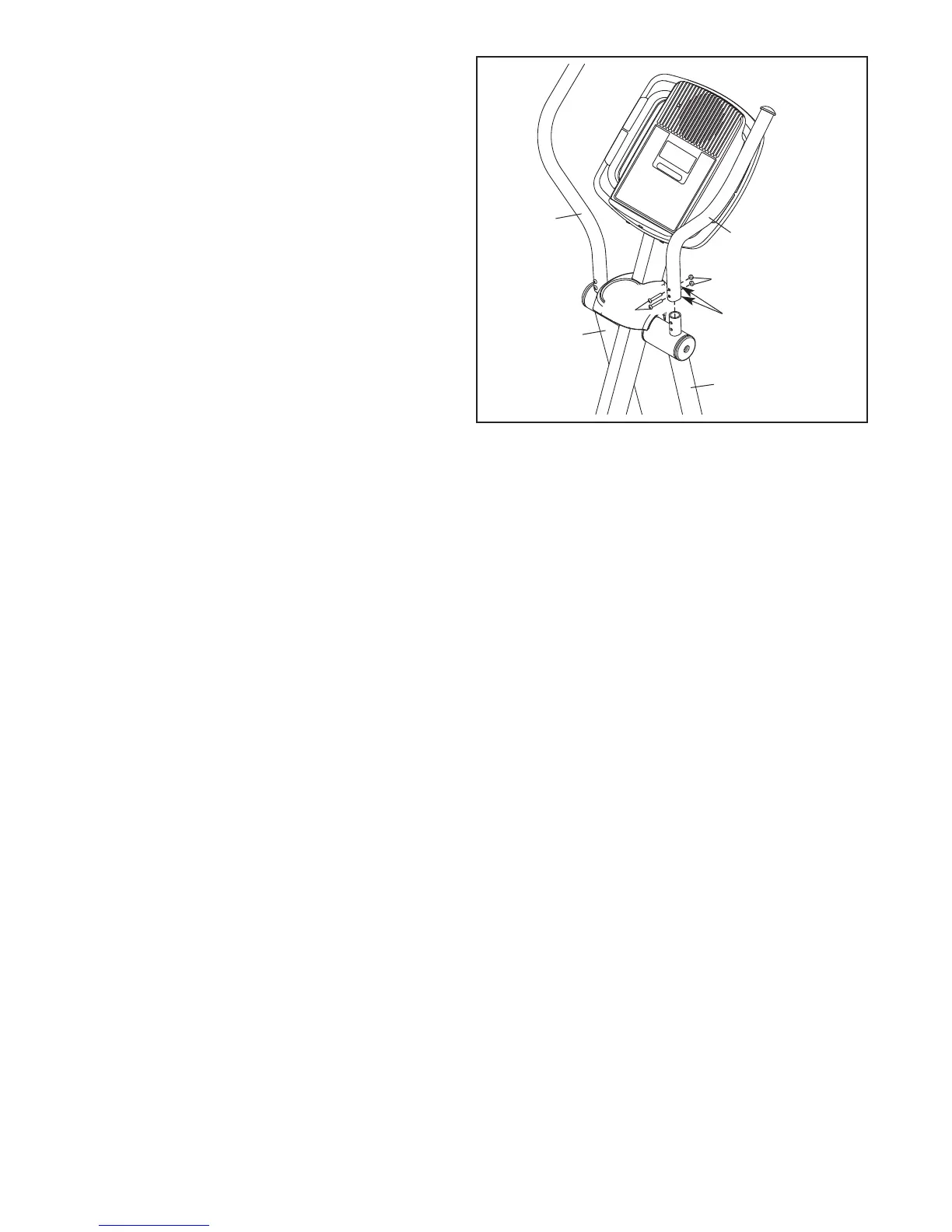

11. Identify the Right Upper Body Arm (9), which is
marked with an “R” sticker. Orient the Right
Upper Body Arm as shown; make sure that
t
he hexagonal holes in the Right Upper
Body Arm are in the indicated location.
Slide the Right Upper Body Arm (9) onto the
Right Upper Body Leg (94). Attach the Right
Upper Body Arm with two M6 x 38mm Button
Bolts (76) and two M6 Locknuts (77); make
sure that the Locknuts are inside the hexag-
onal holes.
Repeat this step for the Left Upper Body
Arm (8) and the Left Upper Body Leg (6).
77
9
94
76
Hexagonal
Holes
6
8
