5
ASSEMBLY
To hire an authorized service technician to assemble the elliptical exerciser, call 1-800-445-2480.
A
ssembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included hex keys, assembly requires a Phillips screwdriver , an adjustable
wrench , and a rubber mallet .

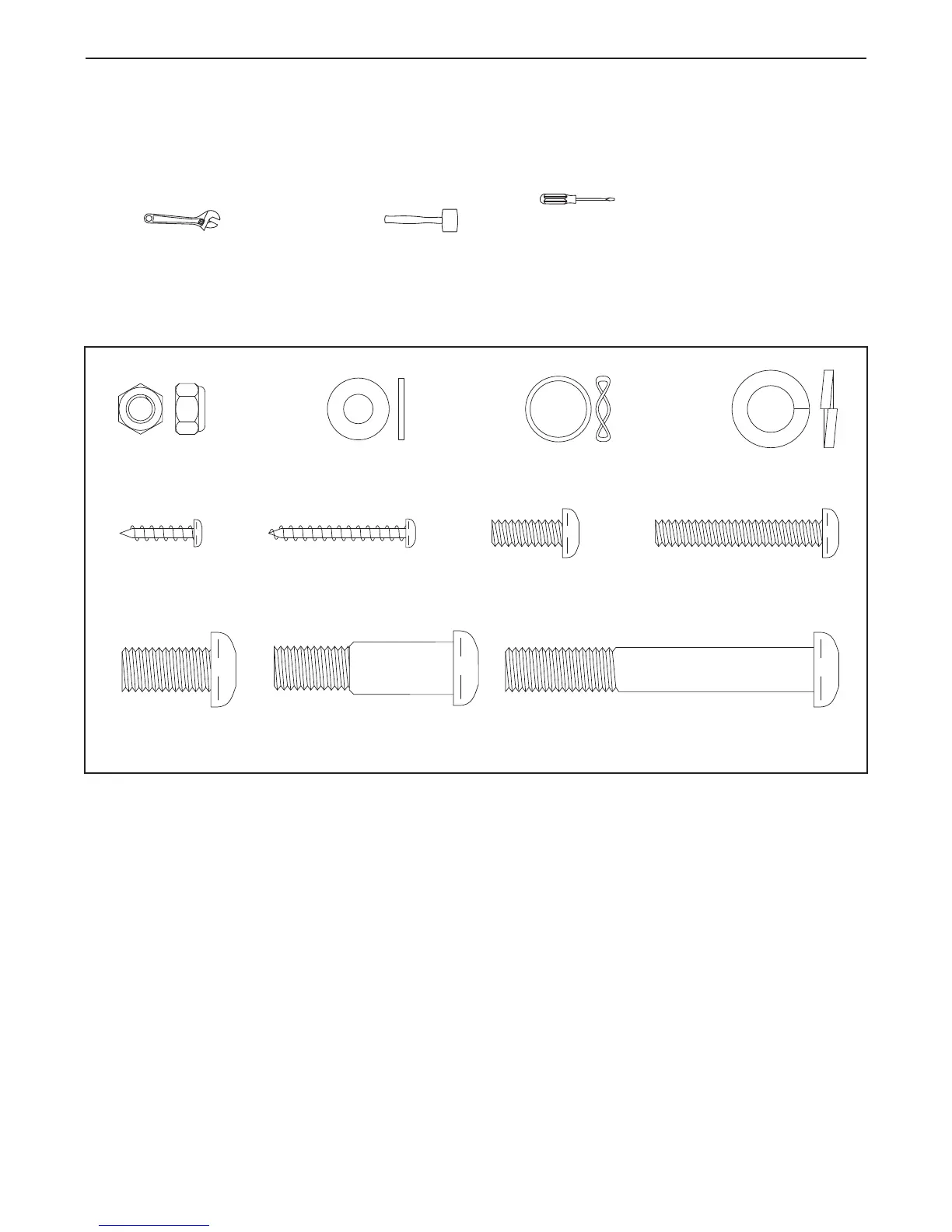

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parenthe-
ses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The
number following the parentheses is the quantity needed for assembly. Note: Some small parts may have
been pre-assembled. If a part is not in the hardware kit, check to see if it has been preassembled.
M10 x 70mm Button Screw (75)–6
M4 x 16mm
Screw (84)–14
M4 x 32mm Screw
(95)–2
M6 x 16mm Button
Screw (80)–6
M6 x 38mm Button
Bolt (76)–4
Wave Washer
(88)–6
M10 Split
Washer (78)–10
M6 Locknut
(77)–4
M10 x 20mm Button
Screw (79)–4
M6 Washer
(118)–4
M10 x 41mm Shoulder
Screw (63)–2
