ProForm StrideSelect 600 - Page 7

7

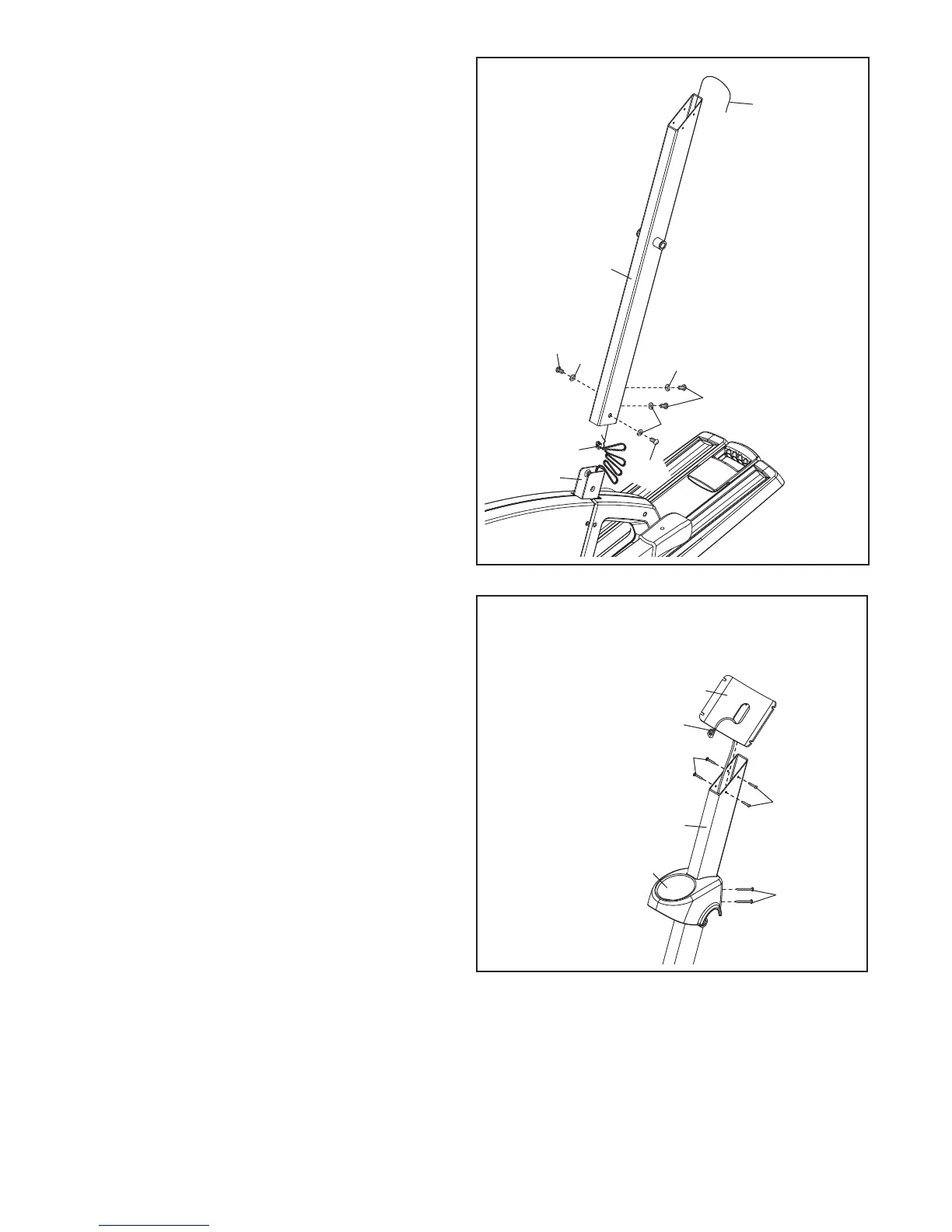

4. Tip: Be careful not to pinch the Wire
Harness (100) during this step.
Orient the Bottle Holder (5) as shown and slide
it onto the Upright (2). Attach the Bottle Holder
with two M4 x 32mm Screws (95).
Thread the Wire Harness (100) through the
Console Bracket (3). Insert the Console Bracket
into the top of the Upright (2). Attach the
Console Bracket with four M4 x 16mm Screws
(84).
4
3
. Tip: Be careful not to pinch the Wire
Harness (100) during this step. Start all
screws before tightening any of them.
H
ave another person hold the Upright (2) near
the Frame (1). Locate the wire tie in the Upright.
T
ie the lower end of the wire tie to the Wire
Harness (100). Next, pull the upper end of the
wire tie upward out of the top of the Upright.
Then, untie and discard the wire tie. Tip: To
prevent the Wire Harness from falling inside
the Upright, secure the Wire Harness with a
rubber band.
Attach the Upright (2) to the Frame (1) with four
M10 x 20mm Button Screws (79), and four M10
Split Washers (78). Do not tighten the Button
Screws yet.
3
Avoid pinching the
Wire Harness (100)
during this step
Avoid pinching the
Wire Harness (100)
during this step
2
1
100
78
78
78
79
79
84
84
95
100
3
5
Wire Tie
2
79
