9
9. Insert the Book Rack (84) into the console as-
sembly; it may be helpful to rock the Book Rack
up and down as you insert it. Attach the Book
Rack with eight 3/4" Screws (10); start all eight
Screws and then tighten them.
See steps 5 and 7. Tighten the 3/8" x 4" Bolts
(6).
10
10
84
Console Assembly
10
9
10. If necessary, press the Left Tray (86) and the
Right Tray (85) into the top of the console as-
sembly.
Console
Assembly
86
85
10

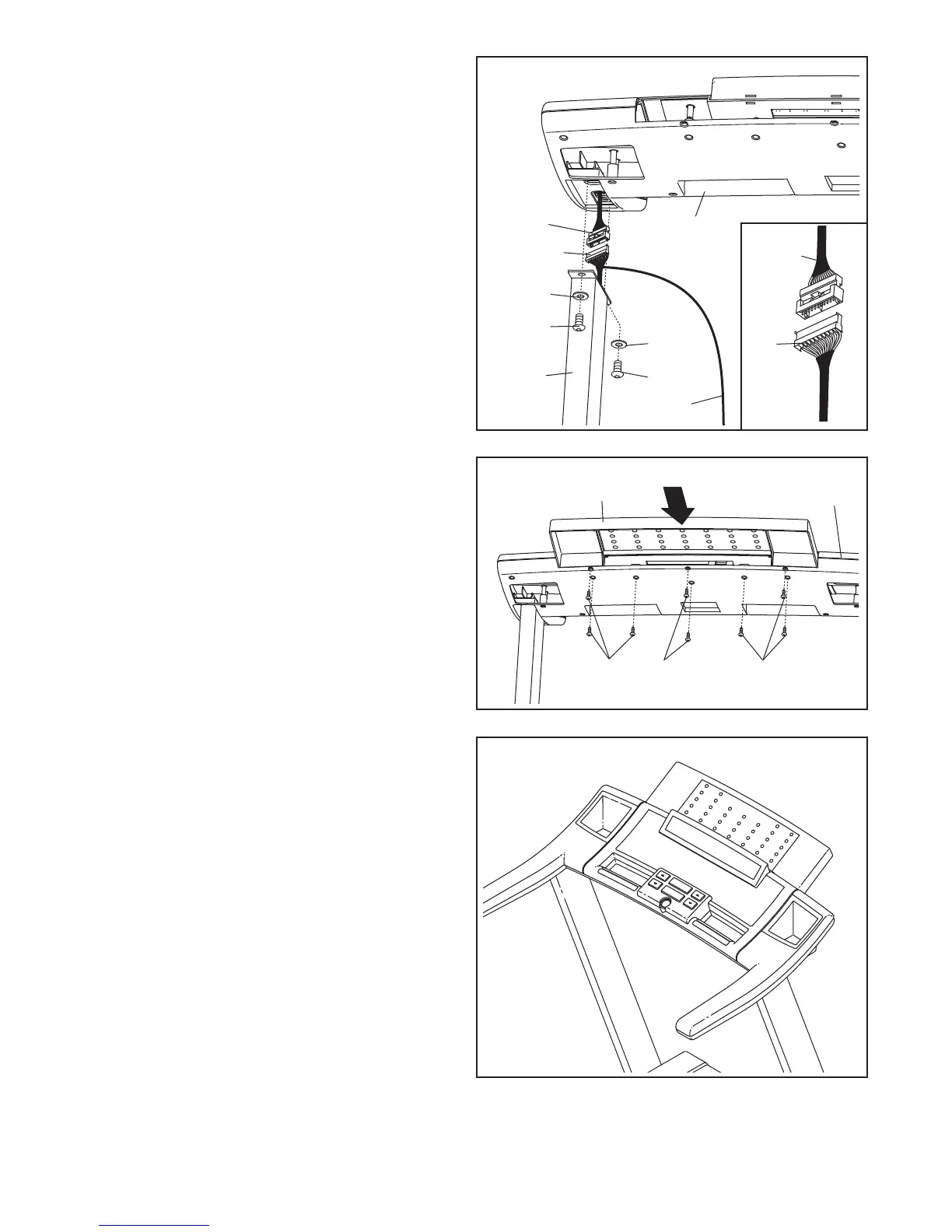

8. Have a second person hold the console assem-
bly near the Right Upright (72). Remove the wire
tie from the Upright Wire (78).
Connect the Upright Wire (78) to the console
wire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF THE CONNECTORS ARE NOT CON-
NECTED PROPERLY, THE CONSOLE MAY
BE DAMAGED WHEN THE POWER IS
TURNED ON. Then, insert the connectors into
the Right Upright (72).
Set the console assembly on the Right Upright
(72) and the Left Upright (not shown). Attach the
console assembly with four 5/16" x 1" Bolts (5)
and four 5/16" Star Washers (7) (only two are
shown); start all four Bolts and then tighten
them.
5
72
7
78
C
onsole
Assembly
Console
Wire
Wire Tie
8
5
7
78
Console
Wire
To Next Page
