ProGear 225 - Handlebar Installation

14
ASSEMBLY
Step 5

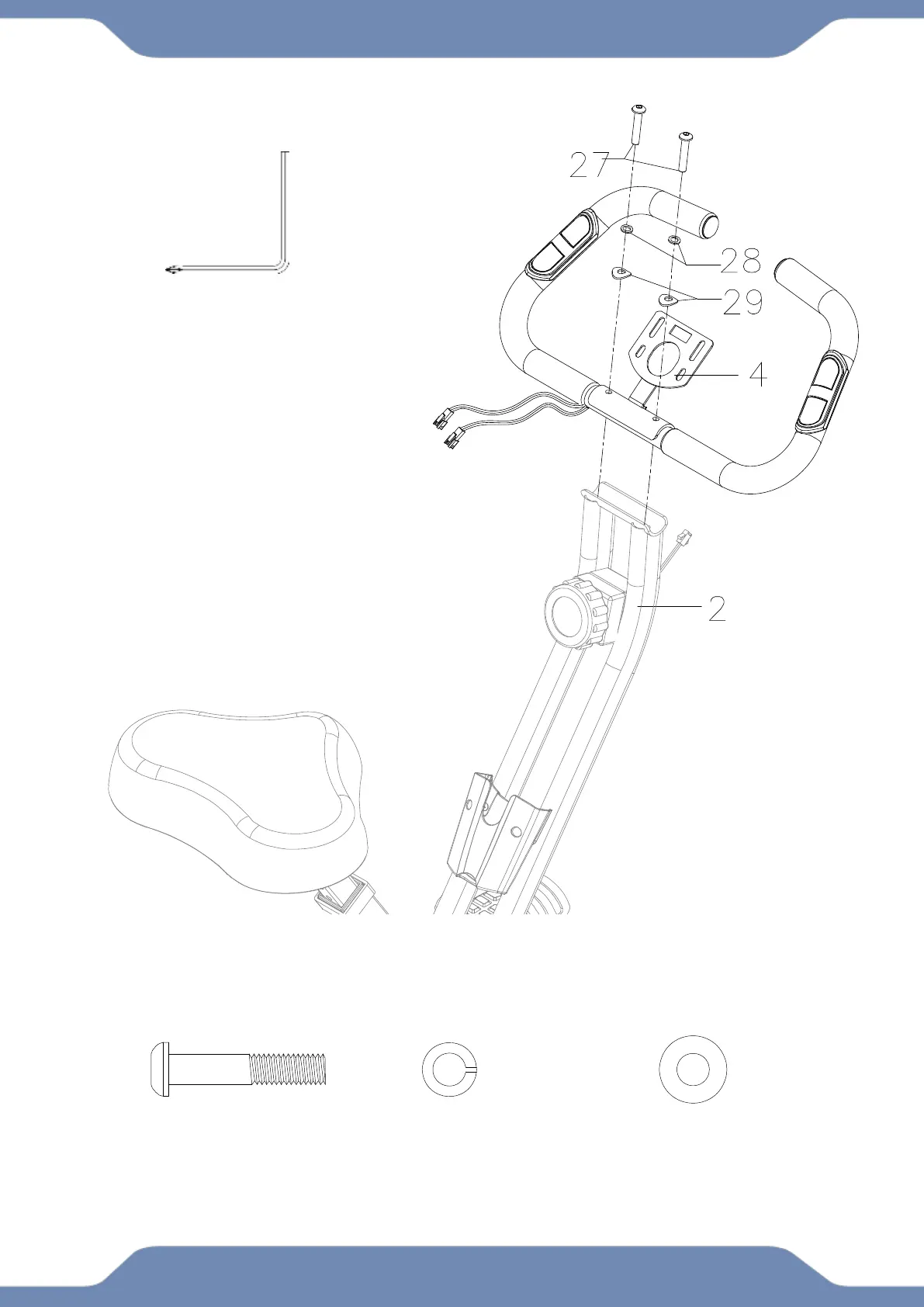

5A. Attach the Handlebar (4) to the Rear Frame (2) with two Hexagon Socket Bolts (27), two
Spring Washers (28) and two Curved Washers (29). Tighten the bolts with the 5mm Allen
Wrench with Phillips Screwdriver provided.
Tool:
5mm Allen Wrench with
Phillips Screwdriver
1PC
NO.27 Hexagon
Socket Bolt
2PCS
NO.28 Spring Washer
2PCS
NO.29 Curved Washer
2PCS
