ASSEMBLY INSTRUCTIONS

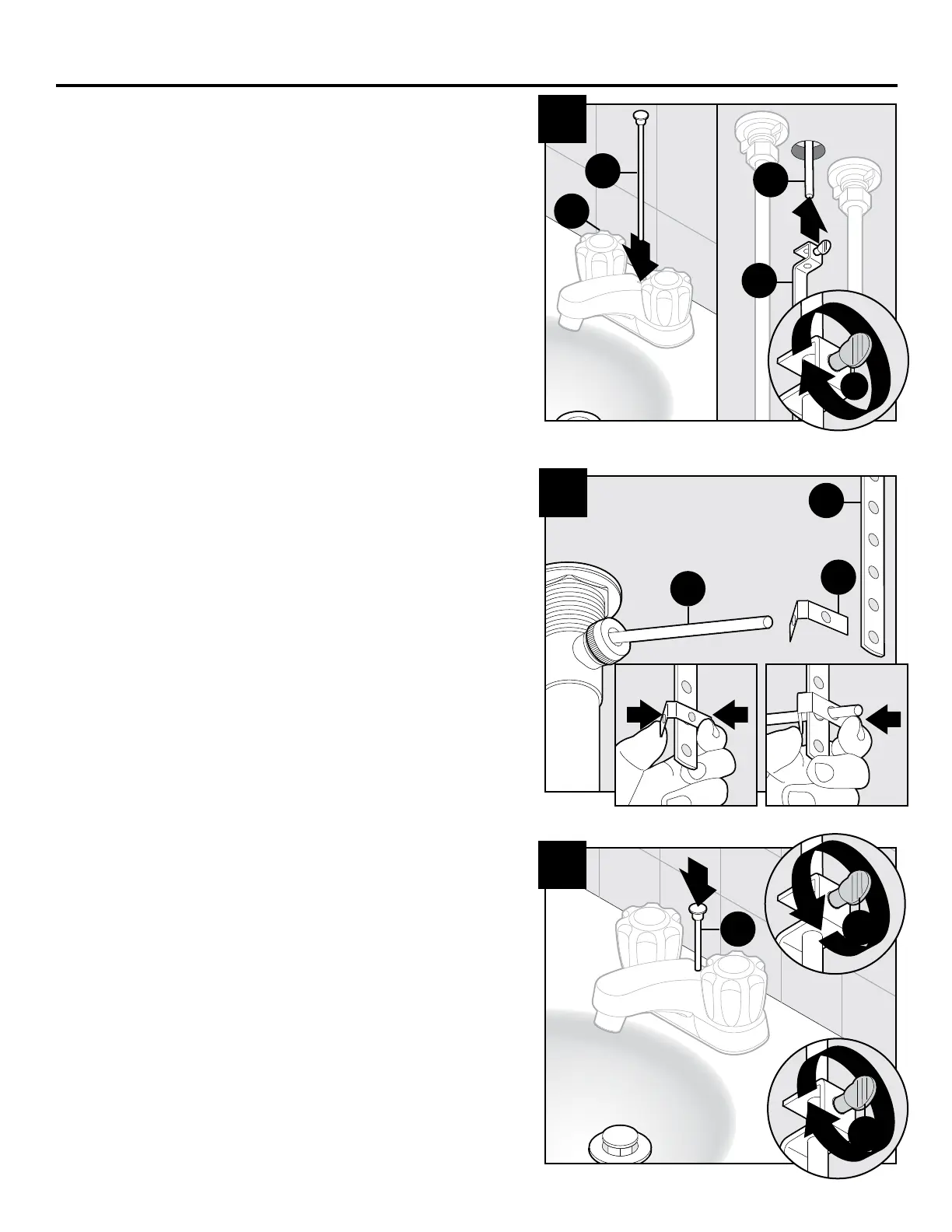

10. Insert lift rod (D) into faucet (A) and, from
below, attach to lift rod strap (G). Tighten
thumbscrew (H) on lift rod strap (G).
12. Loosen thumbscrew (H) on lift rod strap
(G). Adjust lift rod (D) to down position.
Tighten thumbscrew (H) on lift rod
strap (G).
11. Adjust ball rod (N) to the down position.
Attach ball rod (N) to lift rod strap (G) with
spring clip (L).
G
N
H
H
L
D
D
A
D
G
