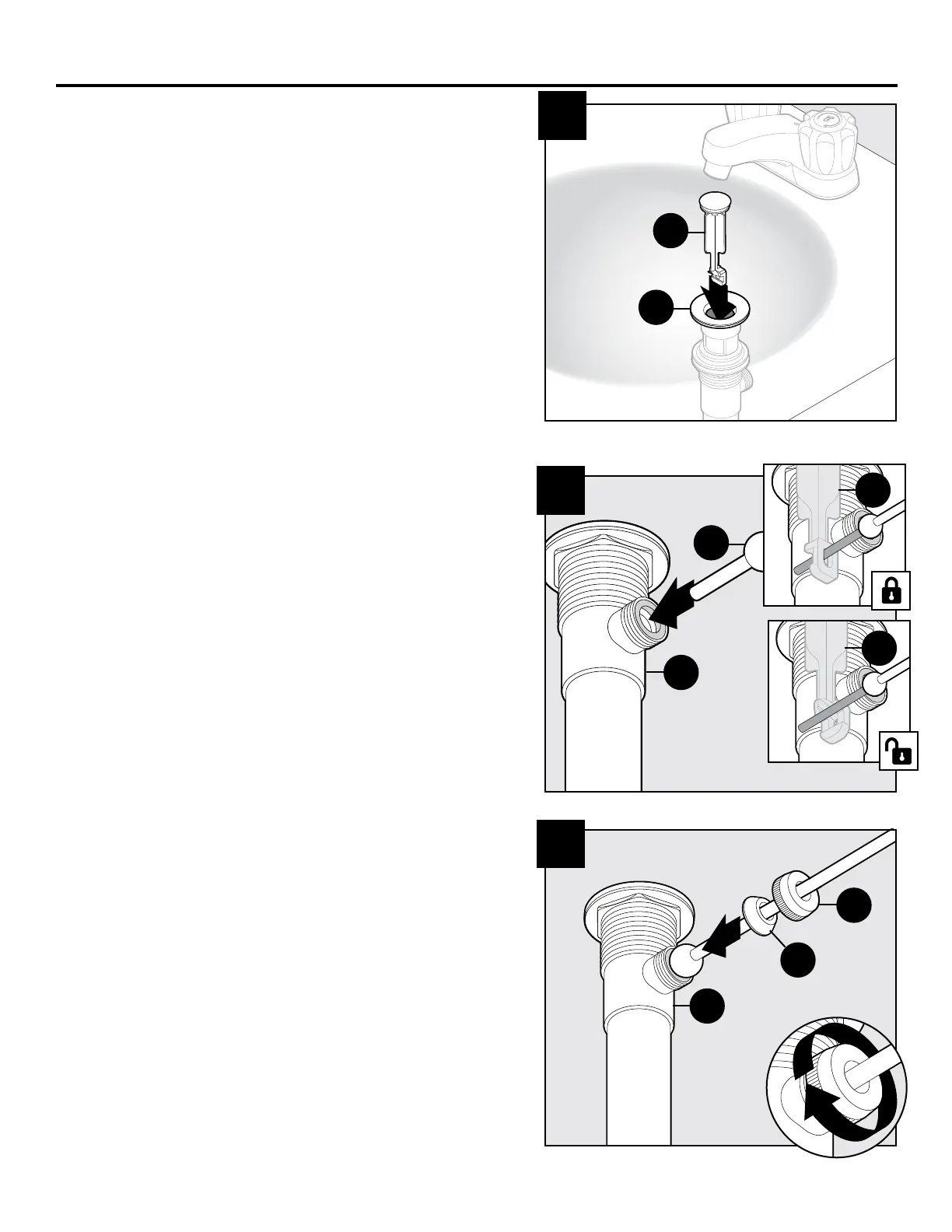

ASSEMBLY INSTRUCTIONS
7.Insertplunger(C)intodrainange(F).
8. From below, insert ball rod (N) into drain
body (E).
Note: Plunger (C) can be installed either in
a locked position, which prevents the plunger
(C) from being removed, or unlocked position,
which allows the plunger (C) to be removed
for cleaning.
9. Hand tighten ball nut (M) and bushing (O) to
drain body (E).
