STEP 8 – CHECK THE ELECTROLYTE LEVEL (CALCIUM MODE ONLY)
Check the electrolyte level and top up if required.
MOUNTING INSTRUCTIONS
INTELLI-CHARGE Chargers are designed for indoor,
out of weather use only. Ensure that both charger
and battery are in a well-ventilated space during
charging.
The battery charger end plates include a mounting
flange for easy mounting. If permanently fixed the
charger should be mounted to a suitable horizontal
or vertical panel, with at least 10cm clearance from
the end plates to provide adequate ventilation for
the cooling fan.
PERMANENT WIRING TO BATTERY
It is possible to hard wire the DC charging leads to the battery for permanent
installations.
You will need 2 x ring terminals, an inline fuse holder and a fuse with a rating equal
to or greater than twice the chargers output. (See below)
IC700 = use supplied wiring harness (15 Amp fuse)
IC700W = 15 Amp fuse
IC1000 = 20 Amp fuse
IC1500 = 30 Amp fuse
Connection:
1. Cut off the supplied battery clips; ensure you leave sufficient cable to reach the
battery terminals. (DO NOT extend the battery charger DC cables, as the added
voltage drop will cause incorrect charging).
2. Fit a ring terminal to the BLACK Negative (-) wire.
3. Connect the inline fuse to the RED Positive (+) wire.
4. Connect a ring terminal to the other end of the inline fuse.
5. Connect the RED lead (with inline fuse and ring terminal) to the Positive (+)
battery post.
6. Connect the BLACK lead (with ring terminal) to the Negative (-) battery post.
12V 7A 7-Stage
PWR SUPPLY
GEL
AGM
WET
CALCIUM
MODE
POWER ON
CHARGING
FULLY CHARGED
1A
2A
4A
7A
CHARGE
RATE

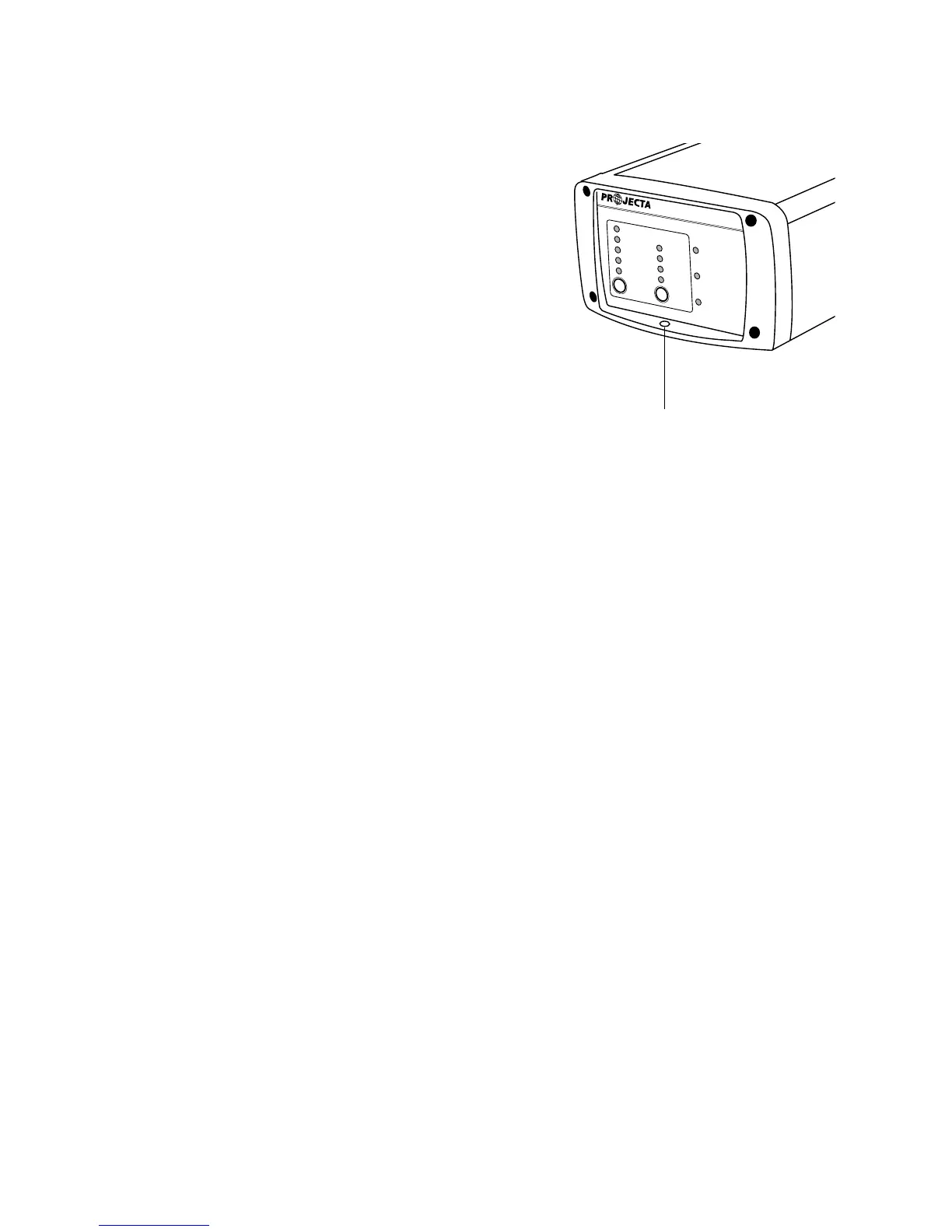

3.5mm
mounting hole
