2. KEY FEATURES AND
FUNCTIONS
2.1 Multiple Inputs
The PM235J transformer unit accepts inputs from AC mains,
solar panel and vehicle battery. However, see Table 1 at right for
details.
AC MAINS
x x
SOLAR
x x
VEHICLE
BATTERY
x x
DOMINATING
SOURCE
AC MAINS AC MAINS COMBINE
Table 1 Multiple inputs
2.2 Battery Charger Of House Battery
The charger automatically starts when the appropriate qualied power is connected, either from AC mains, alternator or solar.
With multiple charging stages (soft start-bulk absorption oat-recycle), PM235J is designed to fully charge a battery quickly.
To guarantee the optimal charging for batteries of different states, the PM235J features a Microprocessor-controlled charging
algorithm. The Float and Recycle charging programs guarantees that the battery condition does not change despite being
connected for a longer period.
1.2 LCD Monitor PMLCD-BTJ (PM200-BTJ only)
The LCD monitor is a digital control center for the PM235J transformer unit. See section 5.2 for operation of LCD monitor.
FEATURES:
T-Bus design (can be connected to multiple devices)
System monitoring
Conguration
Built-in Bluetooth for pairing to smart phone

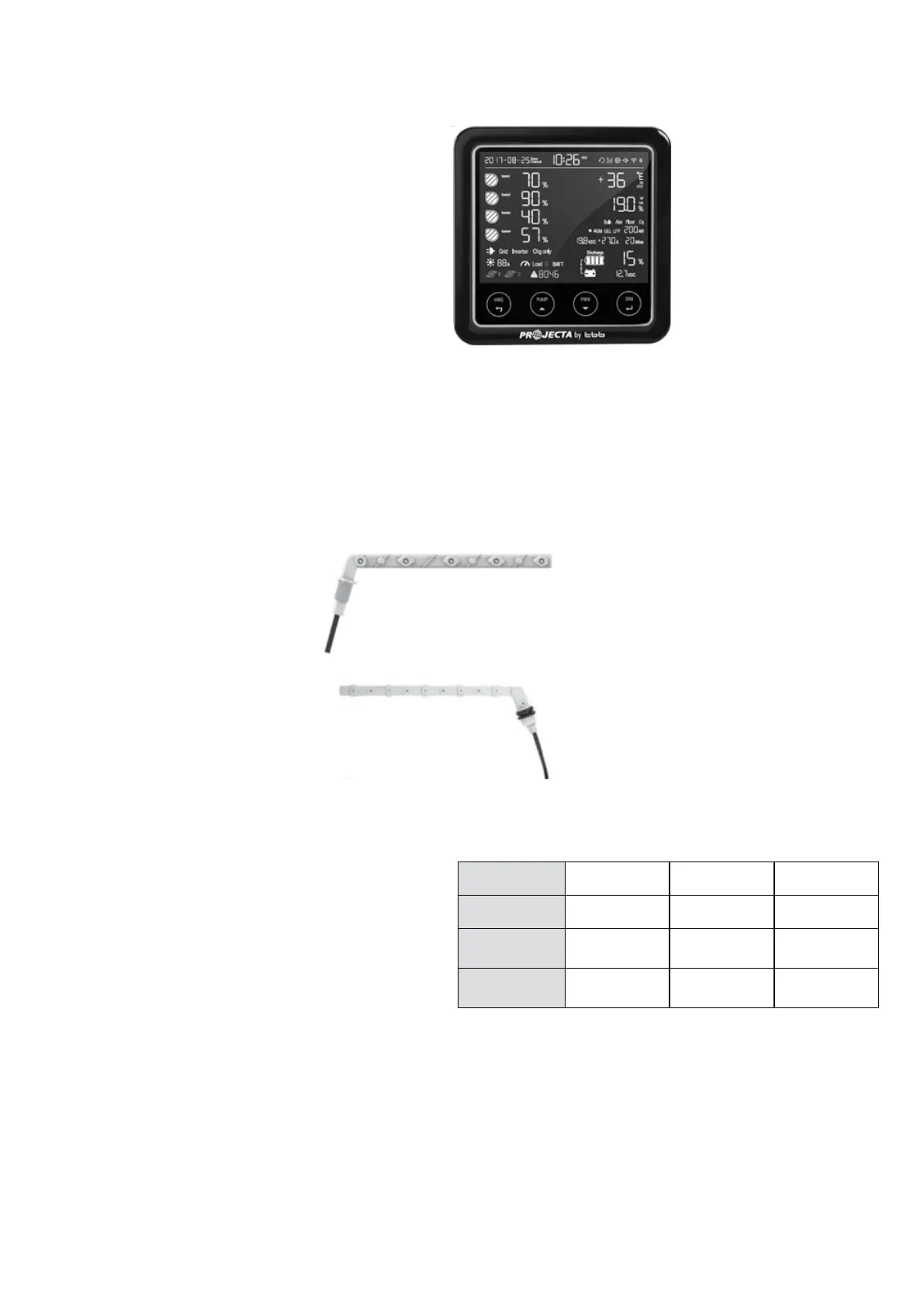

Figure 3 Overview of Monitor
1.3 Water Tank Probes
A maximum of up to 4 probes can be monitored by the system.
NOTE: Always check the probe required for the water tank before purchase.
There are 2 probe styles:
PMWS200:
Side installation
Suitable for water tank
• Depth >200mm
PMWS400:
Side installation
Suitable for water tank
Depth 300-400mm
Figure 4 PMWS200
Figure 5 PMWS400
