CONNECTING THE AC CABLES TO THE INVERTER
Note: Ensure a licensed Electrician wires the 240V AC mains and output terminals
to and from the inverter. If the inverter is being installed in to a caravan/camper van
ensure the unit & wiring is installed to AS3001.
WIRING AC POWER FROM THE INVERTER
AC output power can be wired directly from the OUTPUT terminals of the inverter
allowing connection to external GPO’s in addition to the outputs located on the front
of the IP2000 unit.
1. Ensure the inverter is turned off and disconnected from DC & AC mains power.

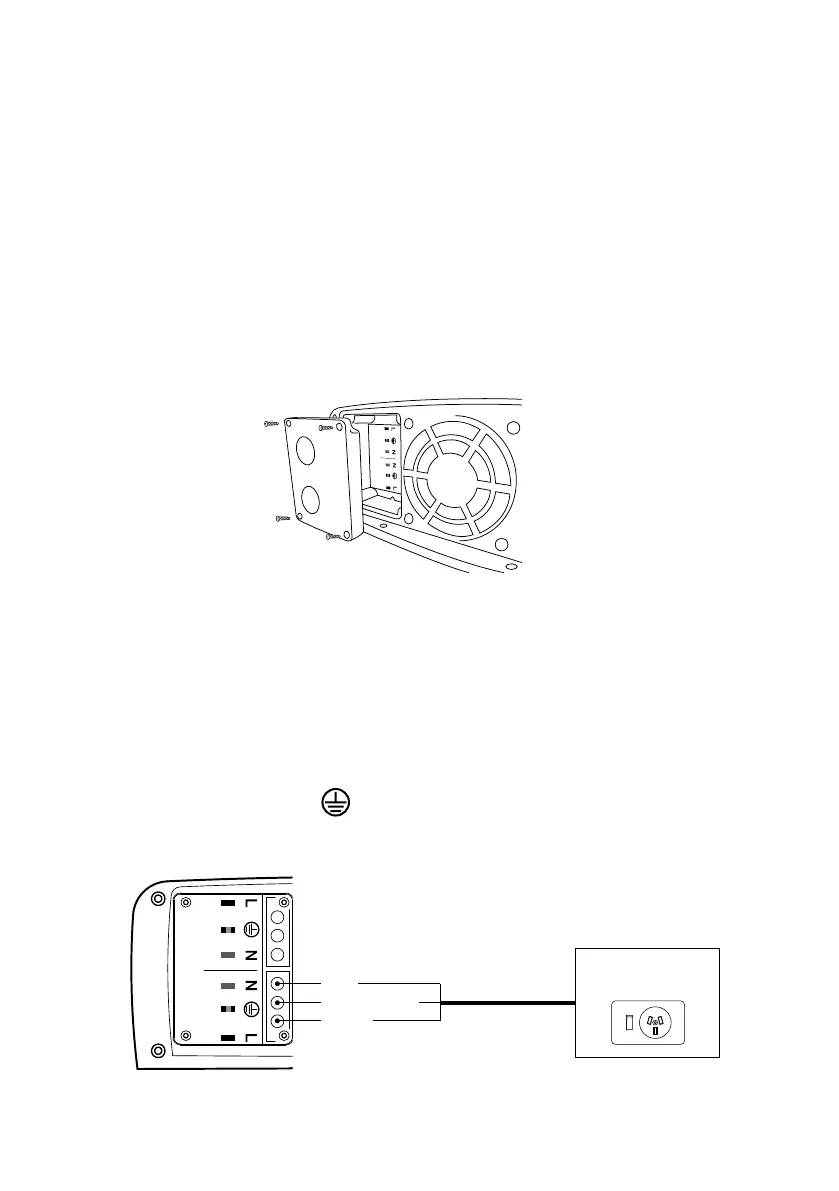

2. To gain access to the OUTPUT terminals remove the cover located at the back of the
unit using a phillips head screw driver as per illustration below.
3. Select suitable size cable gland/conduit fittings (16mm or 20mm) & cable to be wired
to the INPUT terminals. Ensure cable multi strand cable is used as per AS3001.
4. Once the suitable size cable glands/conduit fitting are selected, push through the
appropriate size pre cut holes located on the rear cover & install the fitting.
5. Strip the cable back and feed through the cable glands/conduit fittings, then hard wire
the cables to the OUTPUT terminals. Ensure cable is wired to the OUTPUT terminals as
per the below illustration:
Earth (Green/Yellow) connect to:
Neutral (Blue) connect to: N
Active (Brown) connect to: L
6. Refit rear cover and tighten cable gland/conduit fitting.
8
Green/Yellow
REMOTE
12VDC INPUT
+
2000W Pure Sine Wave
240V a.c 50Hz input – Max connected output load = 2000W
Wiring to be carried out by licensed electrician.
Incorrect wiring will damage the unit and void warranty.
OUTPUTINPUT
OFF
ON
VOLTS ECOWATTS
LOAD%
SAFETY
SWITCH
TEST
OFF
ON
Blue
Brown
Connection to
external AC sockets
240V a.c 50Hz input – Max connected output load = 2000W
Wiring to be carried out by licensed electrician.
Incorrect wiring will damage the unit and void warranty.
OUTPUTINPUT
REMOTE
12VDC INPUT
+
2000W Pure Sine Wave
240V a.c 50Hz input – Max connected output load = 2000W
Wiring to be carried out by licensed electrician.
Incorrect wiring will damage the unit and void warranty.
OUTPUTINPUT
OFF
ON
VOLTS ECOWATTS
LOAD%
SAFETY
SWITCH
TEST
OFF
ON
