16
No. LED COLOUR STATUS DESCRIPTION
1 Mains GREEN
ON AC input OK
OFF AC disconnected
Quick ashing (ash twice every second) AC input abnormal
2
Starter
Battery
GREEN
ON Alternator charging the SERVICE battery
Slow ashing (ash once every second) Starter battery is >13.4V and is being charged by
the PM435
Quick ashing (ash twice every second) The Starter Battery is 2~13.4V or >16.0V, while
AC power is connected.
OFF Starter battery is disconnected.
3
PV
(Solar)
GREEN
ON Solar charging the battery
Slow ashing (ash once every second) The input voltage of the Solar is normal and the
service battery is charged by the AC or Alternator
Quick ashing (ash twice every second) PV input error
OFF PV disconnected
4 CHG GREEN
ON Battery charged
Flashing (ash once every second) Battery charging
Slow ashing (1 second on 2 seconds off) Battery discharge
OFF Battery disconnected
5 FAULT RED
ON Short circuit
Flash once per cycle Service battery voltage low
Flash twice per cycle Service battery voltage high
Flash 3 times per cycle PM435 unit Over Temperature
Flash 4 times per cycle Bulk charge timeout
Flash 5 times per cycle VCR anomaly
Flash 6 times per cycle Environment Over Temperature

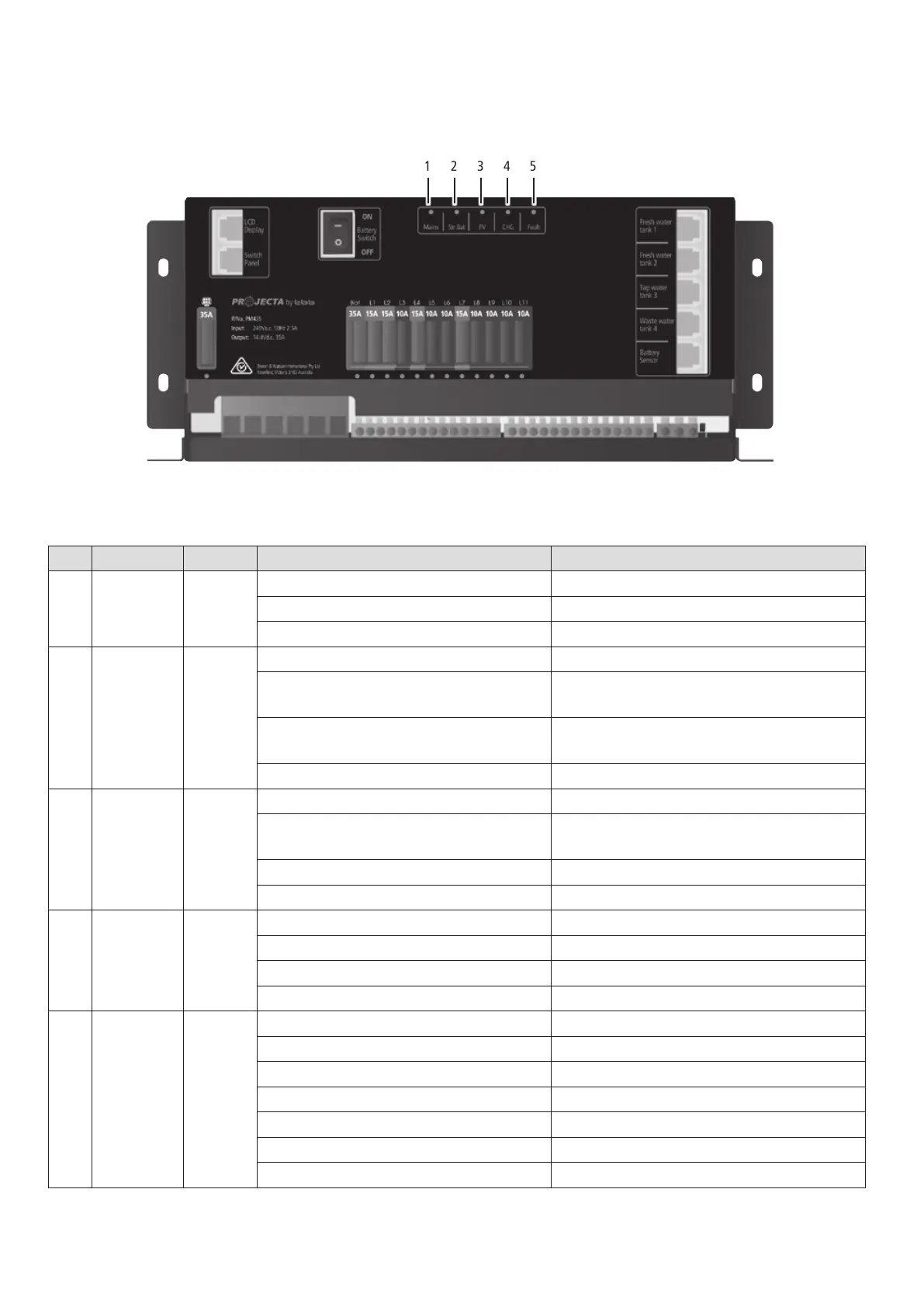

Figure 27 An overview of PM435
5. DISPLAY
5.1 PM435 Power Management System
P/No. PM335
Table 9 LED indicator description of PM435
1 2 3 4 5
