5.3 Monitor PMLCD-BT
5.2 10 Position Switch Panel PM4SW10 (not inc. PM435-BT)
5.2.1 2 Position Switch Panel PM4SW2 (not inc. PM435-BT)
Time

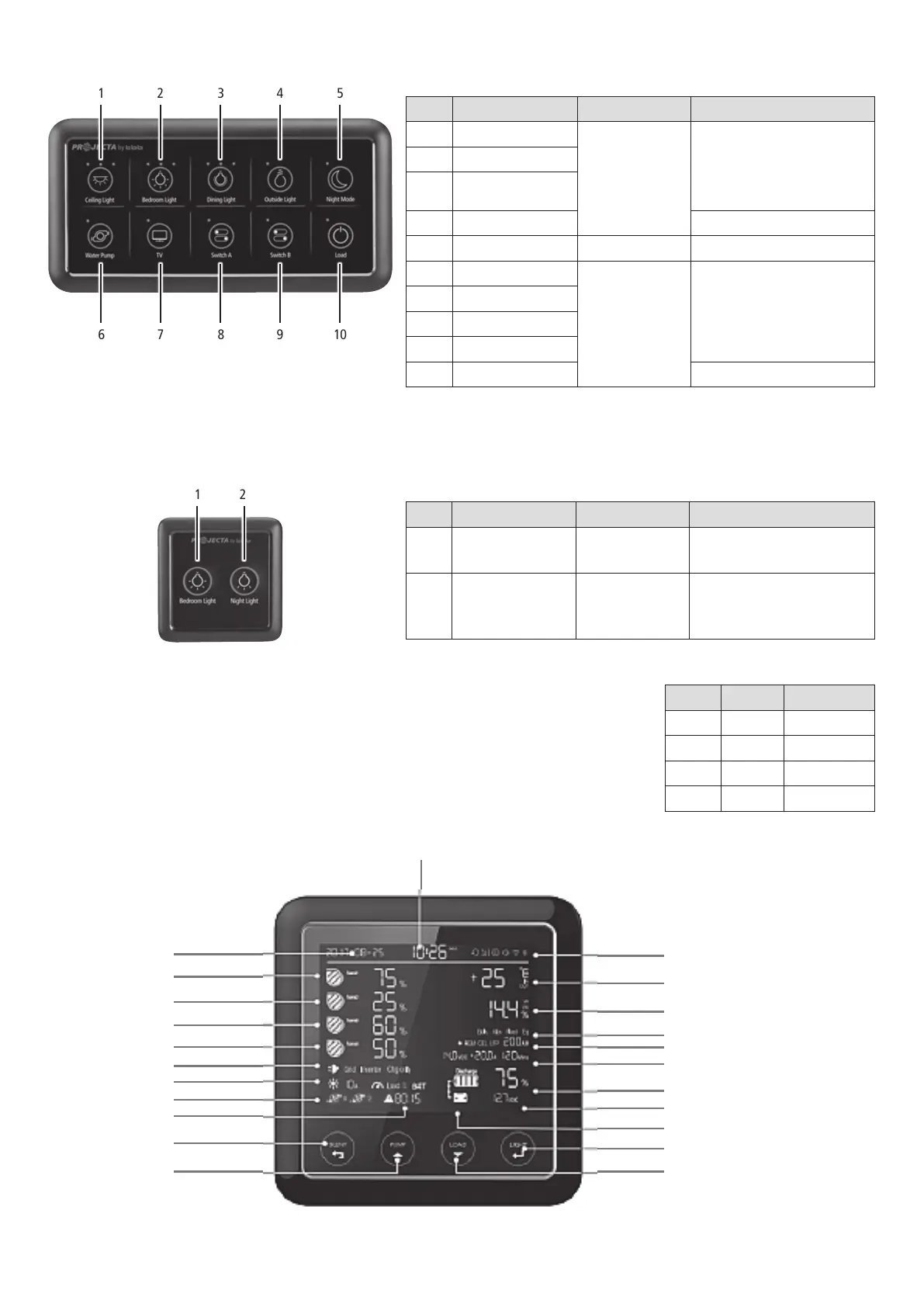

Figure 28 An overview of PM4SW10
No. NAME TYPE DESCRIPTION
1 Ceiling light
DC load control
Load control, support
brightness adjustment.
May not be compatible with
capacitive touch lights
2 Bedroom light
3 Dining light
4 Outside light Load control, on/off control
5 Night mode Scene mode Refer to Chapter 2.11
6 Water pump
DC load control
Load control, on/off control
7 TV
8 Switch A
9 Switch B
10 Load Refer to Chapter 1.3
1 2 3 4 5
6 7 8 9 10
Table 10 Button explanation of PM4SW10
No. NAME TYPE DESCRIPTION
1 Bedroom light DC load control Load control, brightness
adjustment
2 Night light Scene mode Load control, Brightness
adjustment, refer to Chapter
2.11
P3 P4 ADDRESS
On On 1#
On Off 2#
Off On 3#
Off Off 4#
Figure 29 An overview of PM4SW2 Table 11 Button explanation of PM4SW2
1 2
Figure 30 An overview of Monitor PMLCD-BT
TBA
Outdoor temperature
Output power
Charging state
Service battery: Type/Capacity
Service battery: Voltage/Current/Time to go
Service battery SOC (State of Charge)
Voltage of vehicle battery
VCR connection
Light/Enter/Setting switch
Load/Down switch
Date
Water tank 1
Water tank 2
Water tank 3
Water tank 4
Power Source
Solar charge
Water pump 1/2
Alarm error code
Silent/Esc switch
Pump/Up switch
Table 12 Switch address settings of PM4SW2
When there are more than one
PM4SW2 in the system. The customer
should pay attention to the address
setting by dip switch P3 and P4 for
them. They should not be the same.
