4
1. INTRODUCTION
PM400 is designed for caravan or motor home with integrating many functions, including battery charger, distribution blocks, MPPT
solar charger controller, charging relay, low voltage disconnect, water pump controller, water tank indicator, precongured switch panels
as well as a crystal central monitor.
The PM400 is designed for an easy installation and user-friendly interface.
PM435-BT is essentially the same as the PM400 without the 10way switch panel and 2 x 2way switch panels. All other functionality is
the same. Is equipt with Bluetooth I/O controls etc...

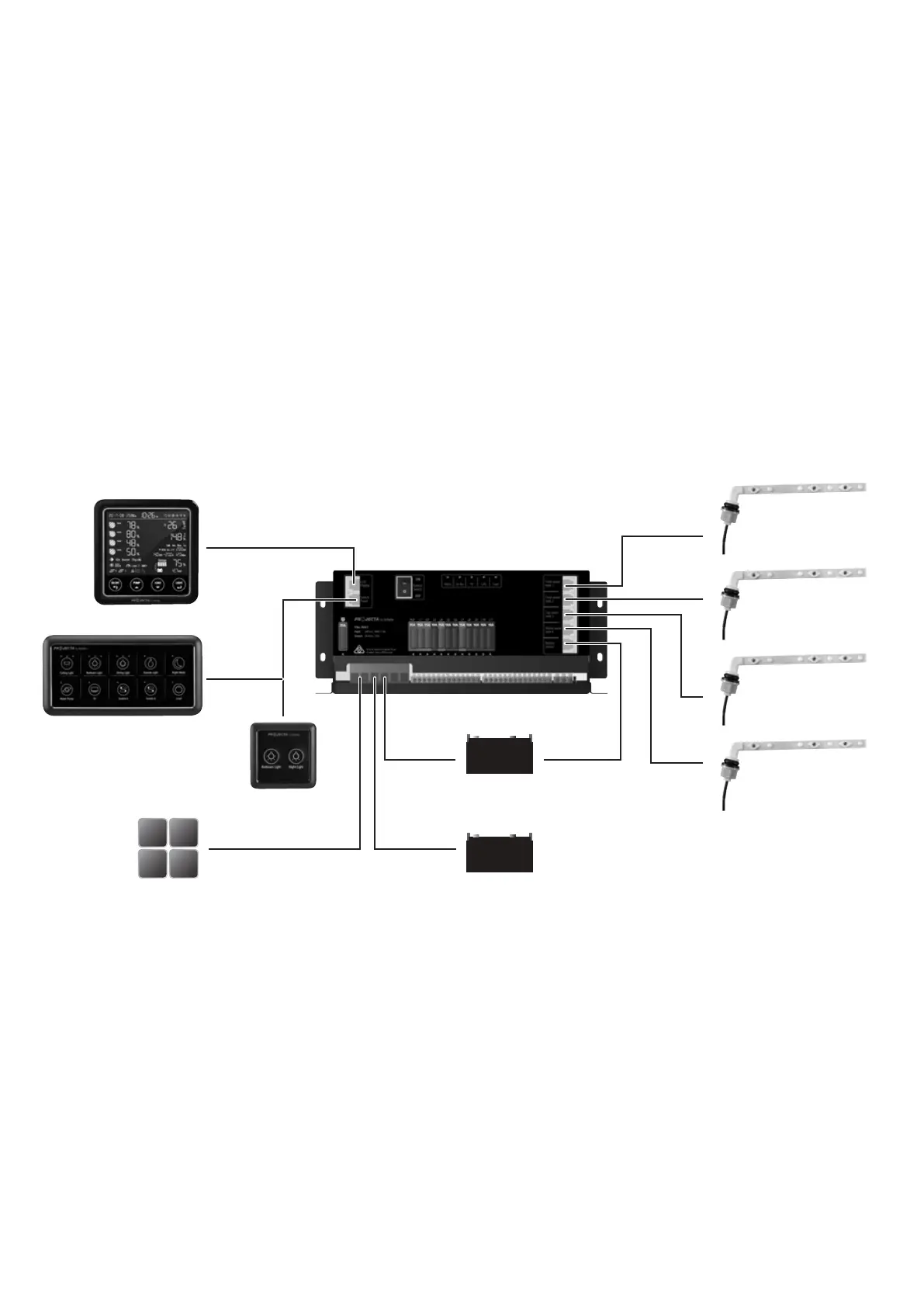

SYSTEM COMPONENTS:
1 Master Power Unit
2 Monitor with Bluetooth connectivity
3 10 position switch panel (not inc. PM435-BT)
4 4 Water tank sensors (not supplied)
5 2 x 2 Position switch panel (not inc. PM435-BT)
6 Cables (Refer to Chapter 4.1 for the cable list)
Figure 1 System Components for PM400 & PM435-BT
P/No. PMLCD-BT
Fresh Water Tank 1 Probe
(Not supplied)
Fresh Water Tank 2 Probe
(Not supplied)
Tap Water Tank Probe
(Not supplied)
Waste Water Tank Probe
(Not supplied)
P/No. PM4SW10
(Not inc. PM435-BT)
2 x P/No. PM4SW2
(Not inc. PM435-BT)
PV
Service Battery
Starter Battery
P/No. PMWS200 or PMSW400
P/No. PMWS200 or PMSW400
P/No. PMWS200 or PMSW400
P/No. PMWS200 or PMSW400
Battery Temperature
Sensor P/No. PM30
P/No. PM435
