1.2 Monitor
The monitor is a digital control center for complete on-board power system.
Features:
T-Bus design (can be connected to multiple devices)
System monitoring
Conguration

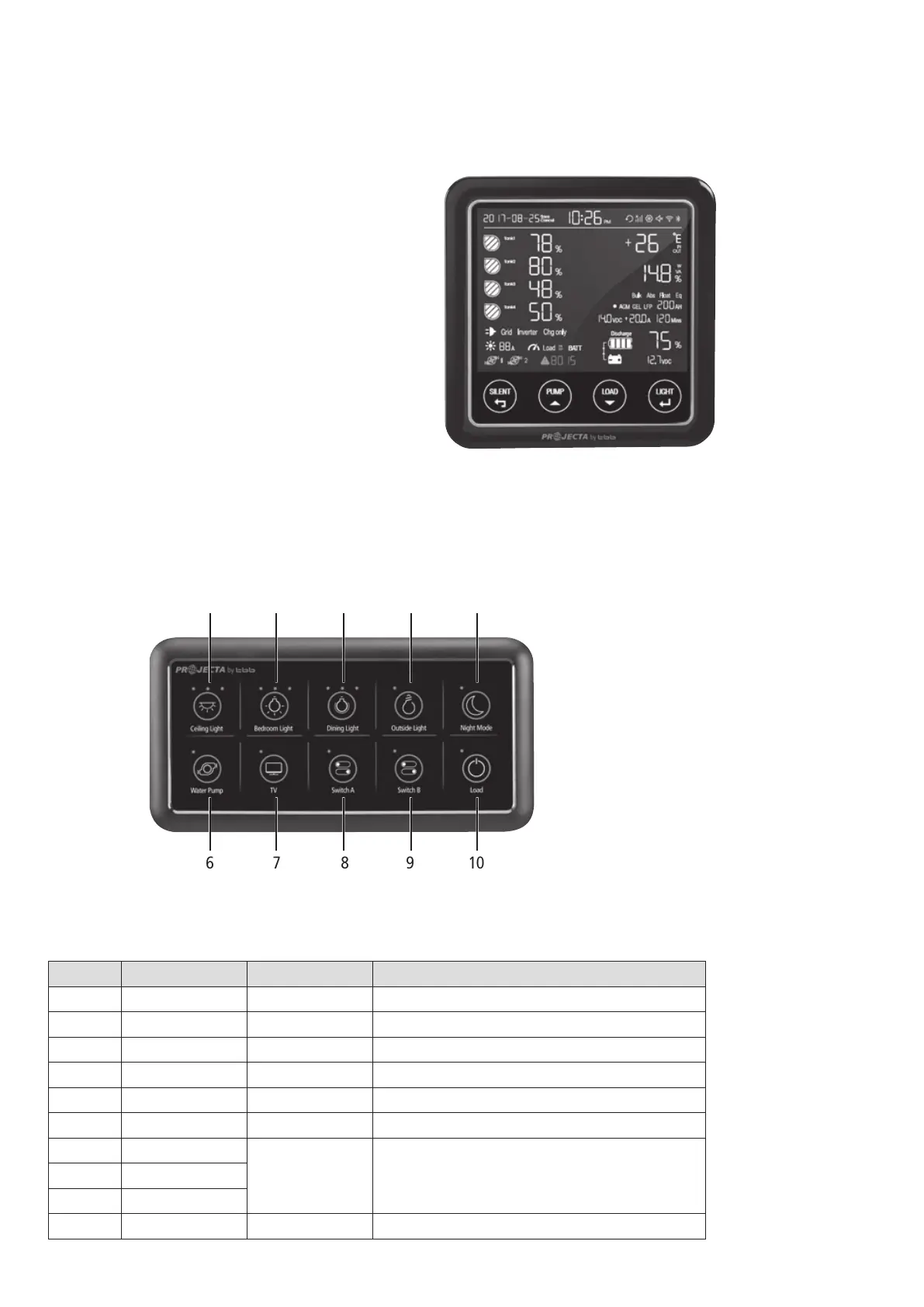

Figure 3 Overview of Monitor
1.3 10-Position Switch Panel (not inc. PM435-BT)
PM4SW10 switched panel was precongured with functions listed as below Table 1
Figure 4 Overview of 10 Position Switch Panel
PM4SW10
No. LABEL TYPE DESCRIPTION
1 Ceiling light DC load control Load control, support brightness adjustment
2 Bedroom light DC load control Load control, support brightness adjustment
3 Dining light DC load control Load control, support brightness adjustment
4 Outside light DC load control Load control, on/off control
5 Night mode Scene mode Refer to Chapter 2.11
6 Water pump DC load control Load control, on/off control
7 TV
DC load control Load control, on/off control8 Switch A
9 Switch B
10 Load DC load control Refer to Chapter 2.7
Table 1 Function list of PM4SW10
