Step four
Move the dipper to the other end of the SECOND
virtual wall, press any button. A marker will be
placed here.
Step four
Move the equipment away from the limit and press
any button to complete.

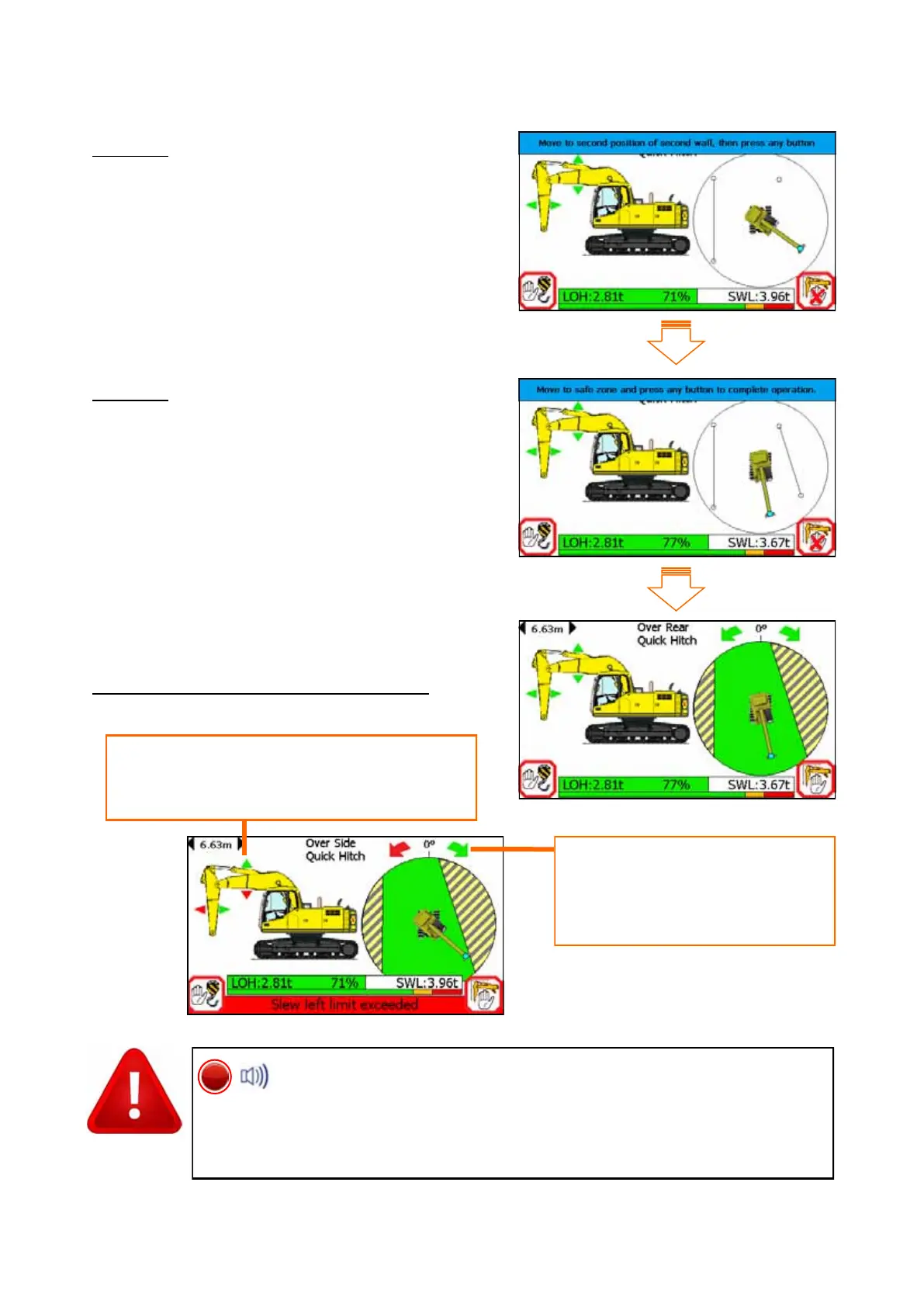

The hatched hazard zones will be shown on the
main screen.
Check the limits are working as required.
Once slew limits are set, the internal alarm will sound and the RED
LED will light if the equipment exceeds the either limit. Always
check that the slew limits activates at the set points. The limits cannot be
deactivated if in the alarm state. Observe the operational limitations given in
section 4. Do not travel once a slew limit has been set.
Safe Directional indicators. The triangles
indicate if it is safe GREEN, or unsafe RED
to movement a particular articulation.
Safe Directional indicators. The
left and right arrows indicate if it
is safe GREEN, or unsafe RED
to slew in that direction.
