8.5.3 Twin Virtual Wall Limit Setting - using Twin Virtual Walls

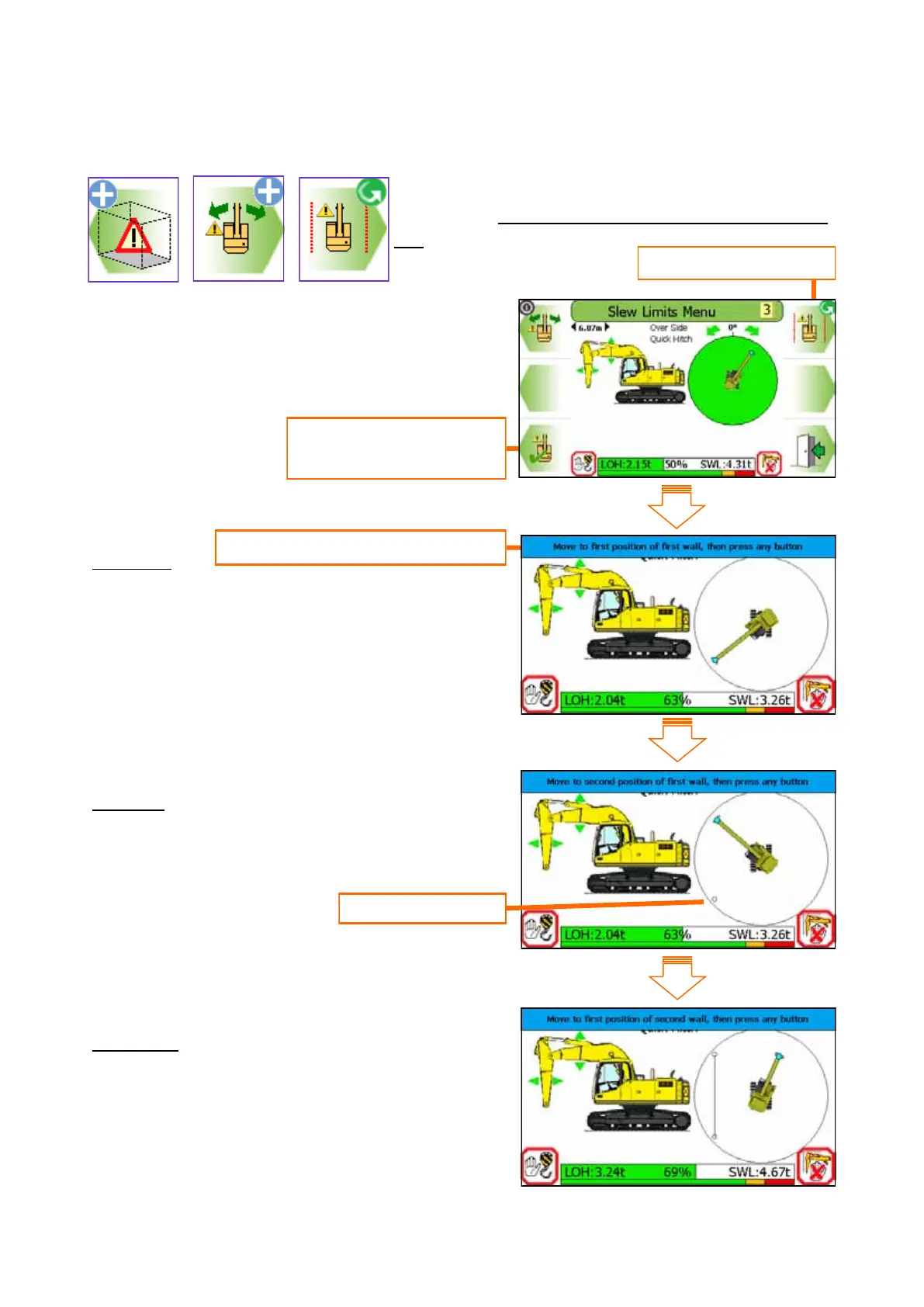

Select twin vertical wall limiting, follow the on screen
instructions. Do not travel once a slew limit has been
set.
Step One
Move the end of the dipper to one end of the
FIRST virtual wall, press any button. A marker will
be placed here.
Step two
Move the end of the dipper to the other end of
the FIRST virtual wall, press any button. A marker
will be placed here.
Step three
Move the end of the dipper to one end of the SEC-
OND virtual wall, press any button. A marker will
be placed here.
Continued on next page
Set to twin Virtual Wall
Press this button to start
the setup procedure
Step by step instructional banner
Virtual wall marker
To Next Page
