Step three
Move the equipment away from the limit and
press any button to complete.

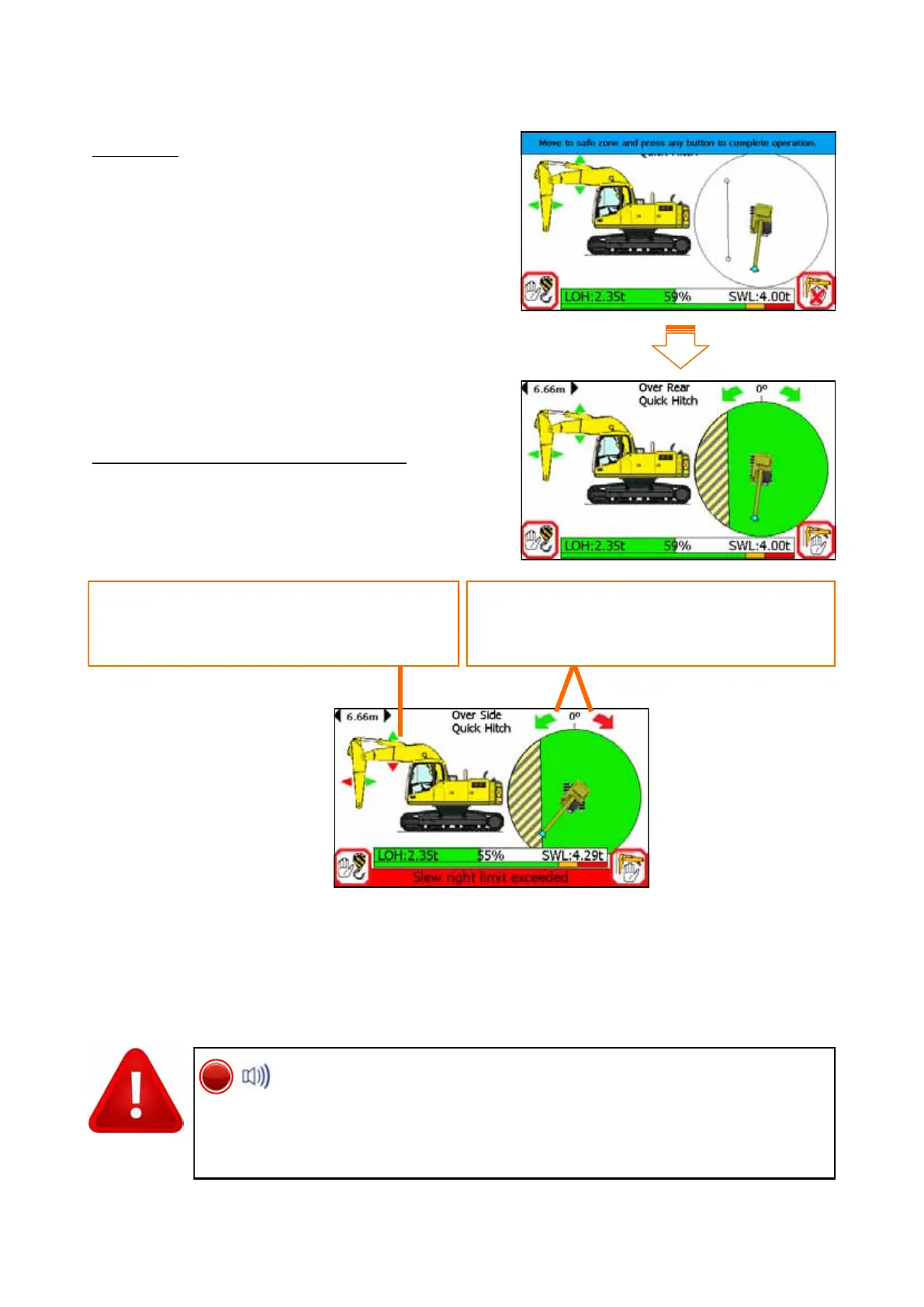

The hatched hazard zone will be shown on the
main screen.
Check the limit is working as required.
Once slew limits are set, the internal alarm will sound and the RED
LED will light if the equipment exceeds the either limit. Always
check that the slew limits activates at the set points. The limits cannot be
deactivated if in the alarm state. Observe the operational limitations given in
section 4. Do not travel once a slew limit has been set.
Safe Directional indicators. The triangles
indicate if it is safe GREEN, or unsafe RED
to movement a particular articulation.
Safe Directional indicators. The left and
right arrows indicate if it is safe GREEN, or
unsafe RED to slew in that direction.
