5
CYBER24
34. DC INPUT: DC 12-18V, 500 mA Min.
35. MIDI Thru/Out/In: MIDI ports for connection to a
sequencer or MIDI device.
36. DMX Out: This connector sends your DMX value
to the DMX xture or DMX pack.
37. DMX POLARITY SELECT: Used to select DMX po-
larity.
38. AUDIO INPUT: This jack accepts a line level audio
input signal ranged from 100mV to 1Vpp.
39. REMOTE INPUT: Black Out and Full On may be
controlled by a remote control using a standard
1/4”stereo jack.
1.2 Technical specications
CYBER24 is a 24ch DMX controller with compact sizes, conceived as a dimming-controller through the pro-
grammable 24 faders. The internal memory has 4 pages of 12 scenes each.
CYBER24 features user friendly and quick control operations, with re-assignable channels and reversible
sliders plus the sound-activated mode. Adds to its feature also 2 programmable AUX buttons, plus the com-
patibility with MIDI inputs.
• DMX512 protocol with 24ch
• 4 pages with 12chases each
• 2 Programmable AUX buttons
• Program fade and speed time into each step
• Sound-activated: Direct audio inputs
• DMX polarity selector
• Adjustable blackout allows xtures to fade out
• MIDI compatible
• 6U rack mount compatible
• Connection: XLR 3p/5p
• Power: 12V DC 500mA
• Weight: 4,5kgs
• Dimensions: 483x267x89 mm

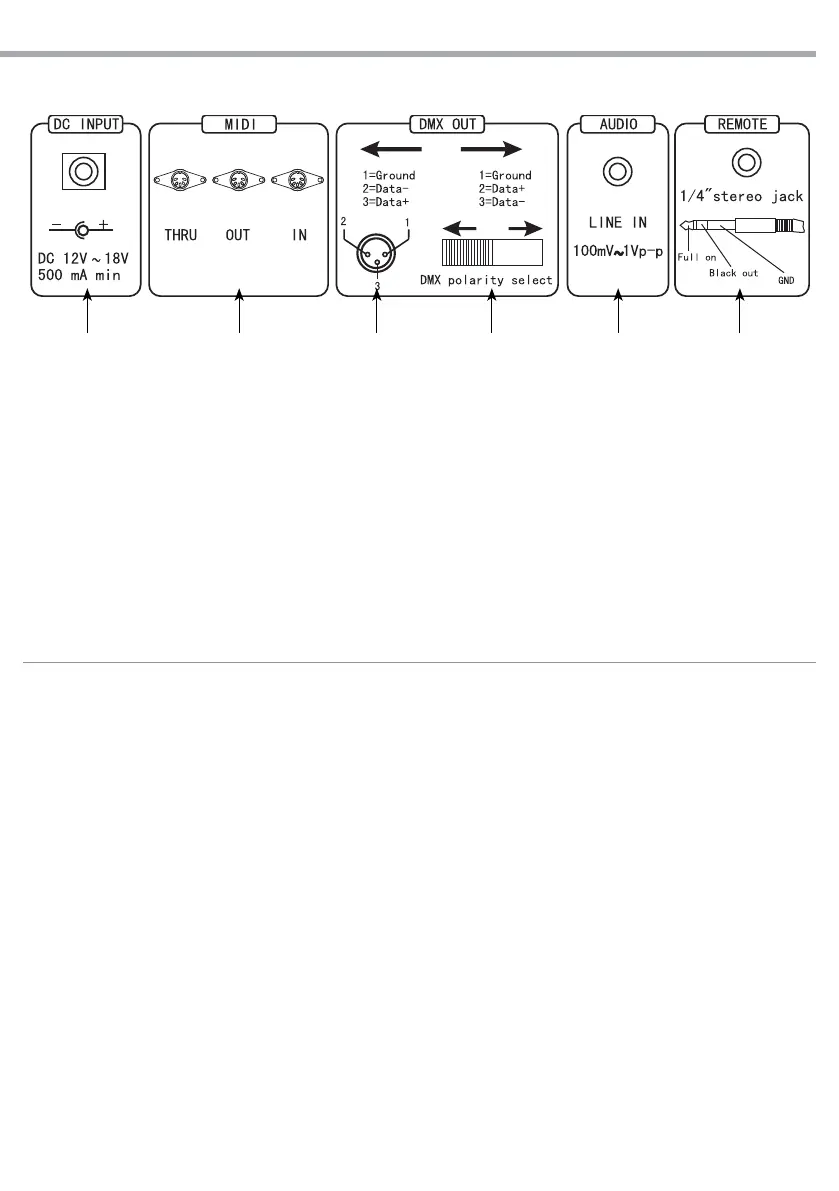

REAR PANEL
34 35 36 37 38 39
