2. Connect the assembly to the exhaust air outlet.

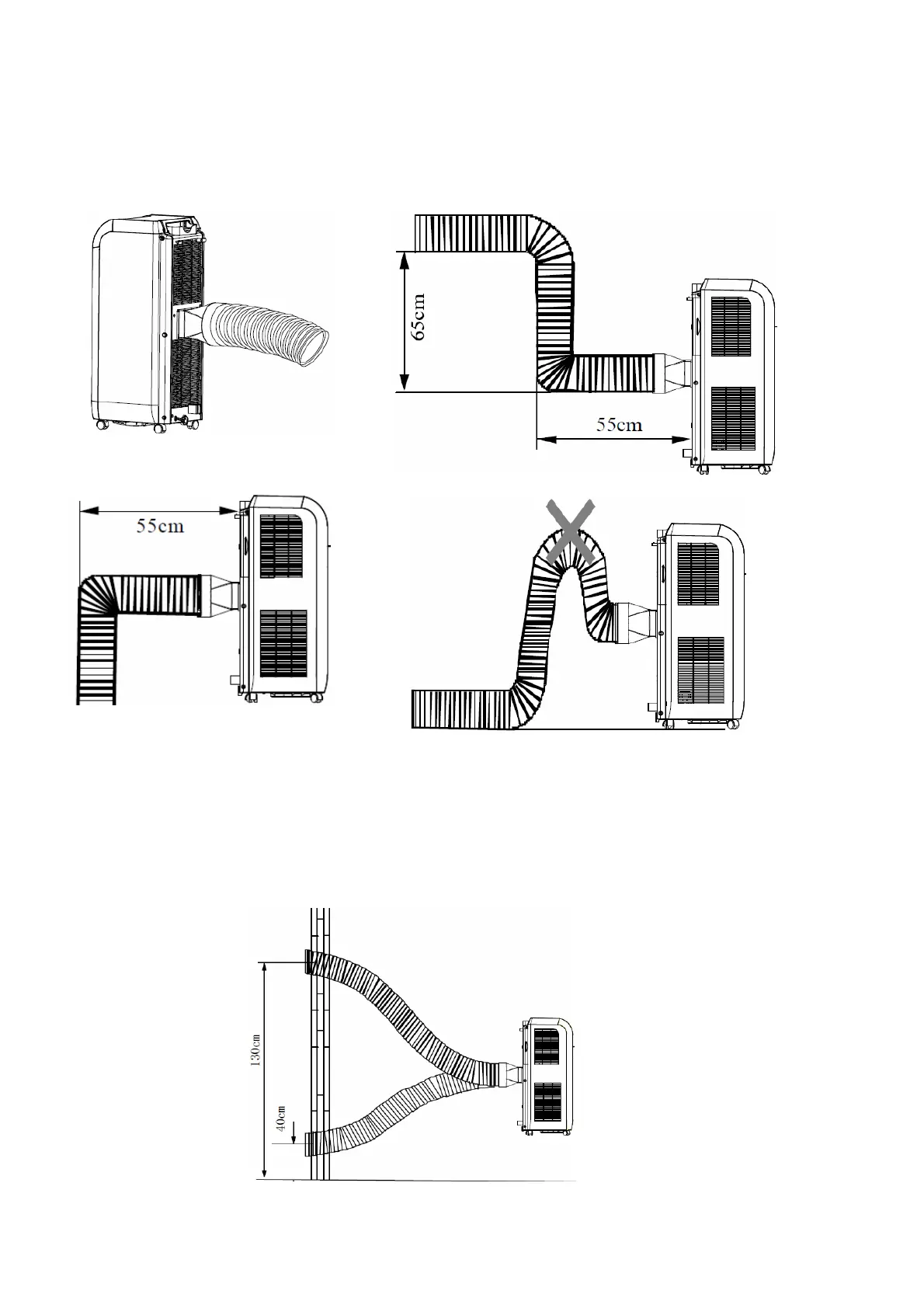

The hose may be extended from 500mm to 1500mm but for maximum efficiency use the shortest length.
WARNING!
Do not replace or prolong the exhaust hose with your own private hose as this could cause the unit to malfunction
Air conditioning installation
To install through the window, put the assembly outside the window when the unit is in use.
To install through the wall, cut a hole in the wall then feed the assembly through the wall. Fix the exhaust adapter outlet
to the wall with screws (not supplied).
