4. INSTALLATION INSTRUCTIONS
Wall Mounting:

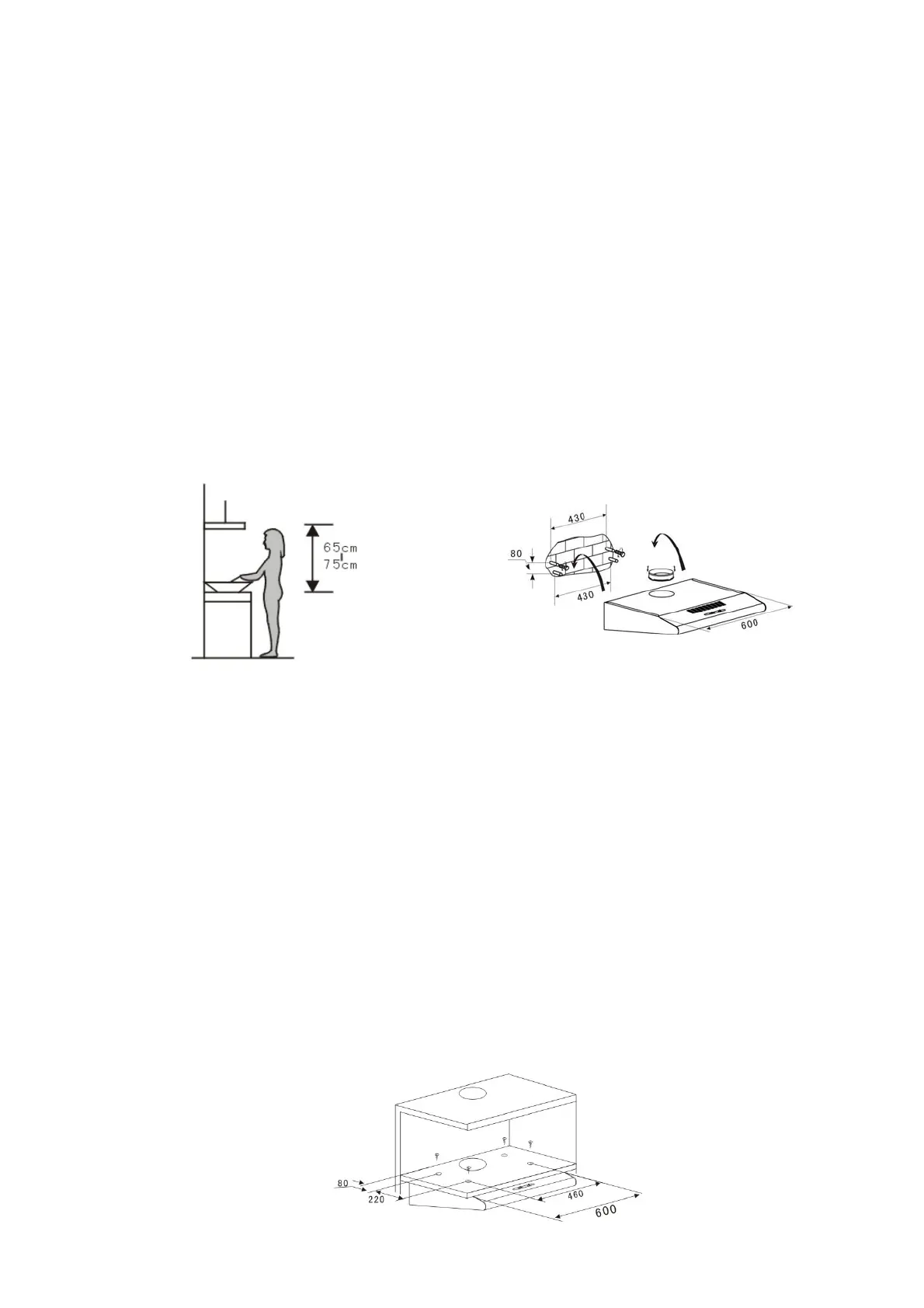

4.1 The cooker hoods must be placed at a distance of 65cm above the cooking surface of an
electric hob or 75cm above the cooking surface of a gas or dual fuel hob.
4.2 To mount on the wall, drill two 8mm holes 430mm apart with the vent hole on the top of the
cooker hood in the middle. Make sure the hood is aligned directly over the hob.
4.3 Insert the plastic wall plugs (Supplied) into the holes.
4.4 Insert the screws into the plastic wall plugs and tighten them leaving 1mm protruding from
the wall.
4.5 Mount the cooker hood onto the two screws and mark the bottom two screw positions.
4.6 Remove the hood and drill the bottom two screw holes and insert the plastic wall plugs.
4.7 Mount the hood on the top screws, insert the bottom screws and fully tighten all four screws.
4.8 Fix the one way valve onto the cooker hood.
Electric
Gas
Cupboard Mounting:
4.1 Drill 6 4mm holes in the bottom of the hanging cupboard.
4.2 Fix the one way valve onto the cooker hood, then install the cooker hood on the bottom of the
hanging cupboard, tighten the 6 screws (supplied).
4.3 Install the adjustable boards on the bottom of the hood to cover the gap between the back of
the hood and the cupboard.
When installed the distance between the hood and the hob must be not less than 60cm above an
electric hob or 75cm above a gas or mixed fuel hob. This hood must not be fitted above an eye
level grill cooker without checking with the cooker's manufacture as it might adversely affect the
functioning of the grill. If the room where the cooker hood is fitted contains a fuel burning
appliance (such as central heating) its flue should be of the balanced Flue type. If other types of
flue are fitted ensure that a sufficient supply of air to the room is available. The air must not be
discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels
WARNING: Check that there are no water pipes or electrical cables in the wall where you want to
mount the hood before drilling any holes.
