19 Dimensional drawings
–
Compare the dimensions on the dimensional
drawing with those of the pump.
– All dimensions are in mm.
P DX 0063 SW

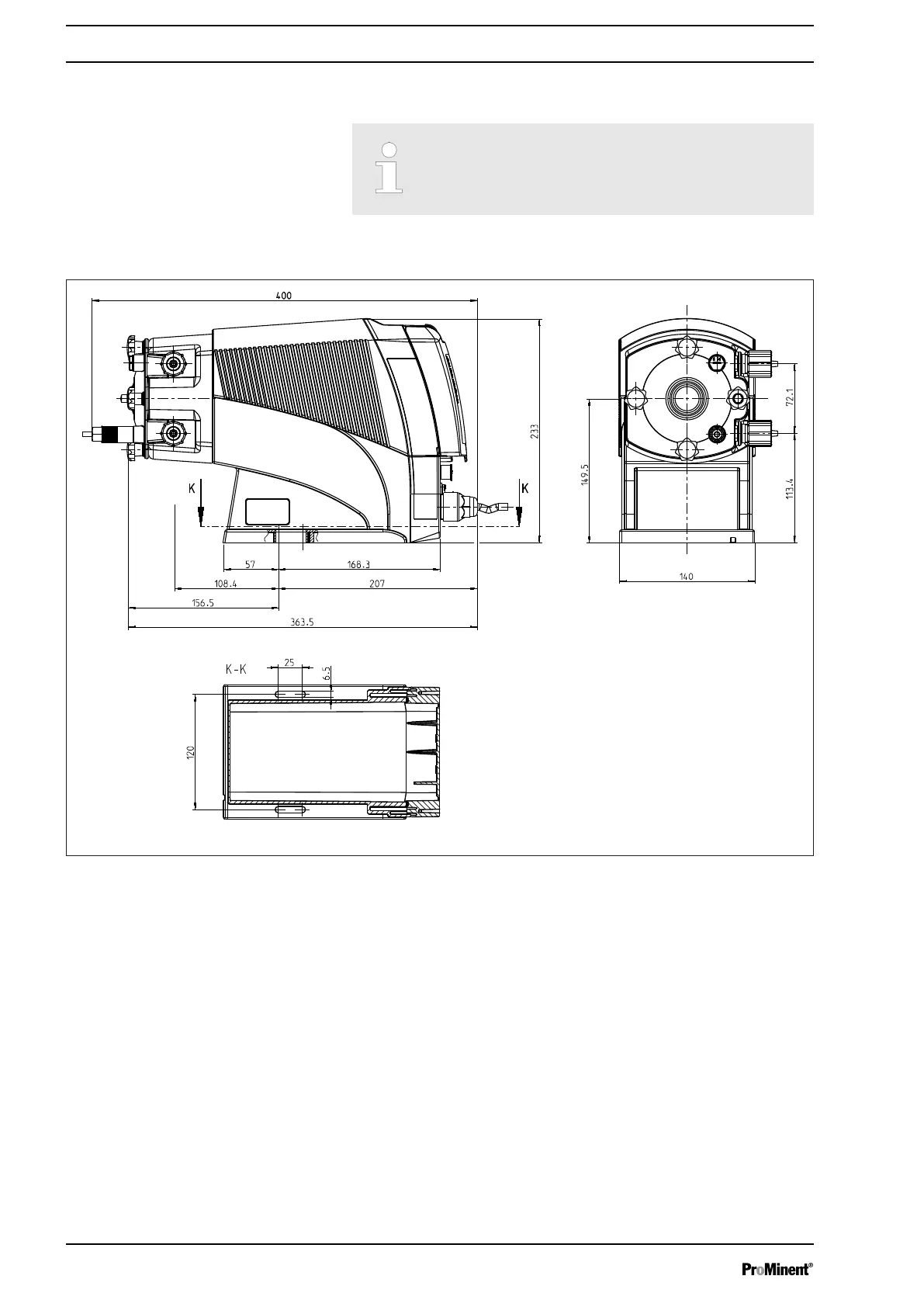

Fig. 37: Diagram is not strictly binding
Dimensional drawing DULCO flex Control
