Scale Drawing
11 Scale Drawing
(all dimensions in mm)

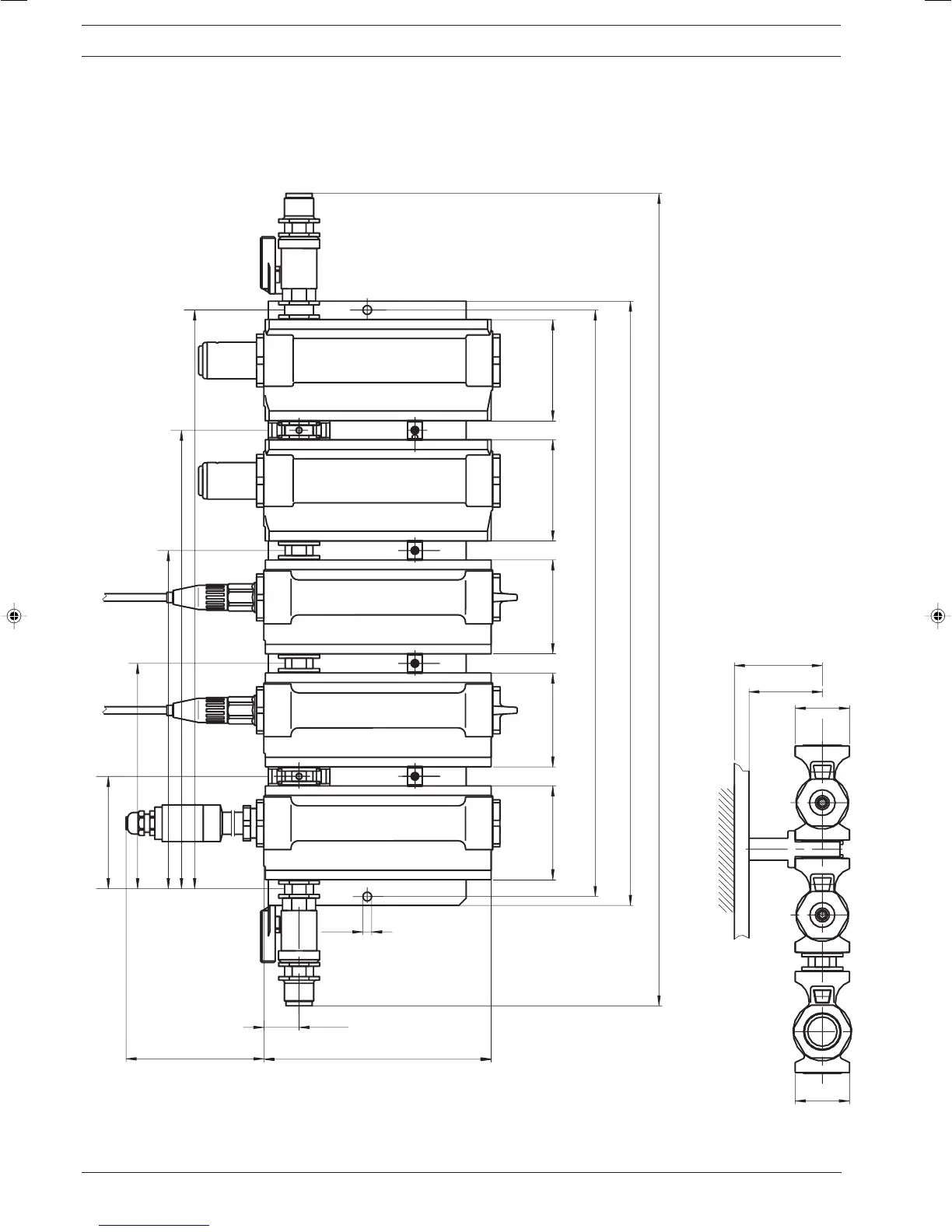

Figure 5
Scale drawing,
exemplary version
Q
156 max.175
24
64
M13.5 M13.5 M13.5/M25 M13.5/M25
412
6
37
37
50
60
Wall bracket
1 module PG 13,5
= 77
Wall
bracket
2 modules
PG 13,5
= 154
Wall
bracket
3 modules
PG 13,5
= 231
Wall bracket
3 modules PG 13,5 +
1 module Ø 25 mm
= 314
Wall bracket
3 modules PG 13,5 +
2 modules Ø 25 mm
= 397
Flow module
PG 13,5
64
Module PG 13,5
(pH, Redox-LF(T)
sensors)
64
Module PG 13,5
(pH, Redox-LF(T)
sensors)
69
Module Ø 25 mm
(amperometric
sensors)
69
Module Ø 25 mm
(amperometric
sensors)
556
Dimensions
in [mm]
