Rear Panel

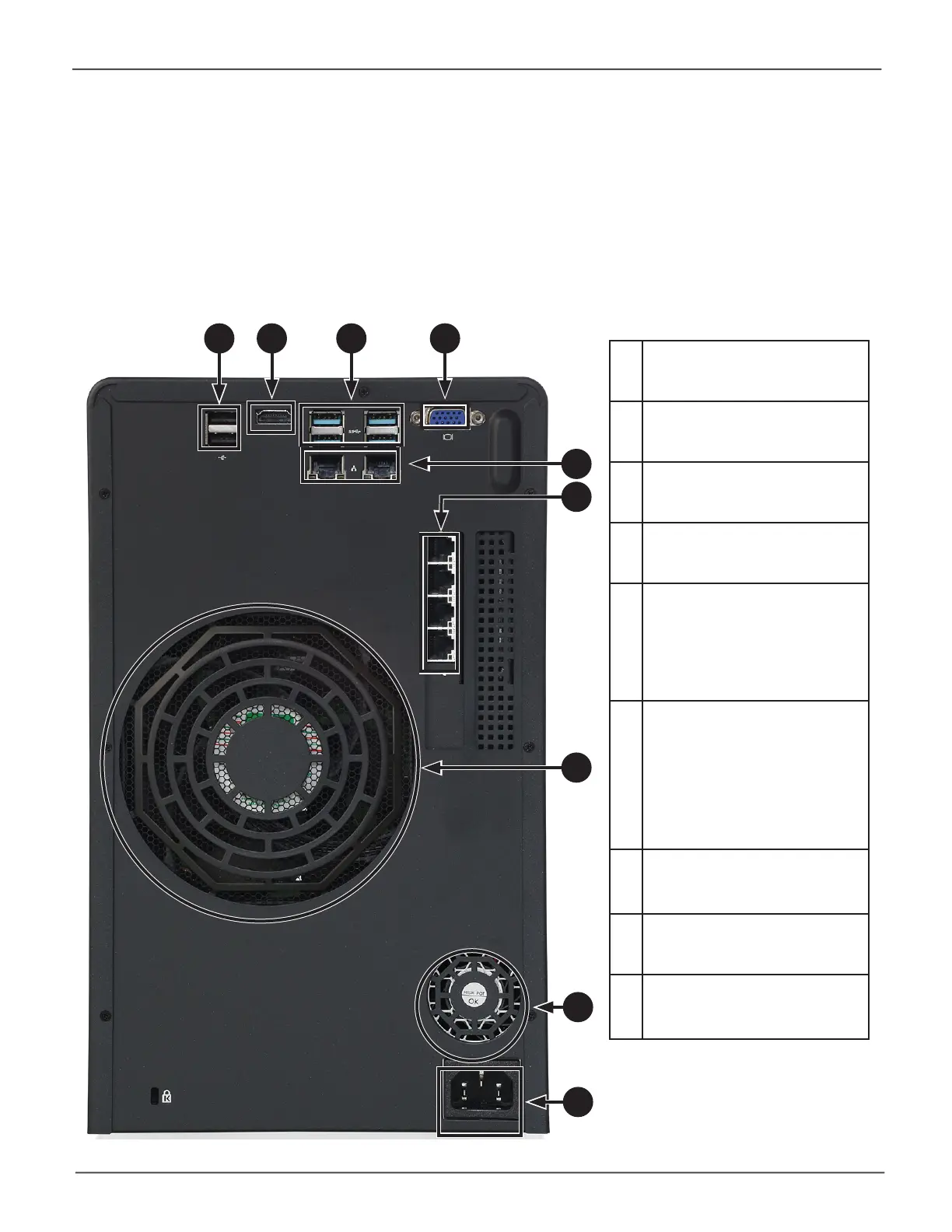

The rear panel of the VTrak N1008 enclosure provides access to the power supply, 10G NAS (Share)
ports, VGA and HDMI video monitor connections, 1G Ethernet ports for device management over the
local network, and USB 3.2 ports.
1
USB 2.0 ports
2
HDMI (technical support only)
3
USB 3.2 ports (4 ports)
4
VGA port (technical support only)
5
LAN RJ-45 ports (LAN1/LAN2)
Use these ports to connect to a
1G network for system manage-
ment using WebPAM Insight.
1G port numbers are written in
white text in the illustration.
6
Network (Share) ports
For collaborative accounts ac-
cessing over network.
Three SKU available:
• 10G Base-T : 4-Port
• 10G SFP+ : 4-Port
• 25G SFP28 : 2-Port
7
System fan vents
8
PSU fan vent
9
Power insert
VTrak N1008 Rear Panel
1 2 3 4
6
7
5
8
9
#2 #1
