1 2 3
4
5 6

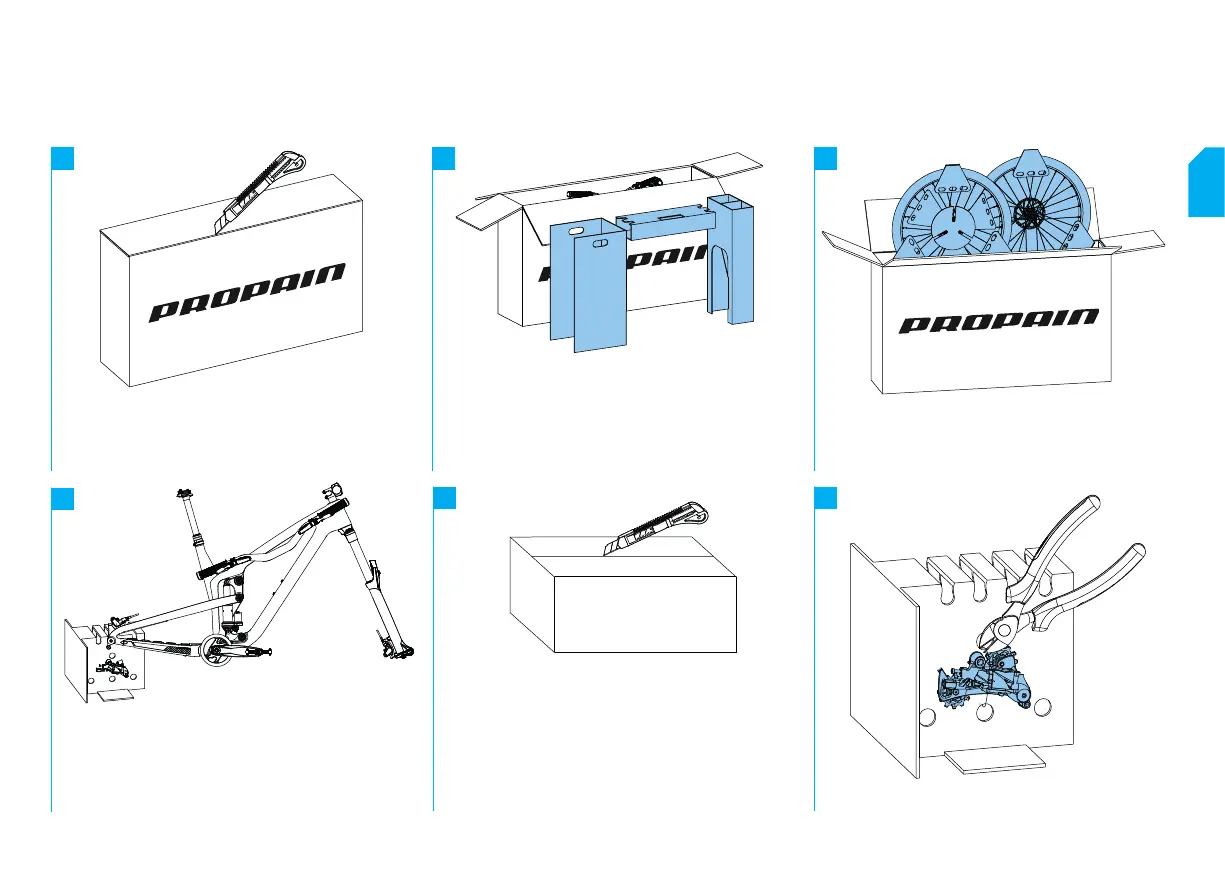

// UNPACKING
Carefully open the top of the bike box ensuring no damage is
caused to internal parts whilst opening the box.
Remove the xation of the handlebar, the xation of the rear
triangle and the xation of the fork.
→ Carefully remove the handlebar from its xation, to
prevent possible damage to the paint.
Carefully remove both wheels.
→ Be careful to avoid damages.
Carefully remove the bike.
→ Watch the handlebars, suspension fork and rear
derailleur. Fix the bike to a work stand for further
assembly or place it on the ground in the rear end
xation.
Remove the box for the small parts and open it.
→ This box contains pedals, saddle, torque wrench,
small parts as well as clothing/merchandise
purchased with the bike.
→ For instructions on using the torque wrench,
see next page.
Detach the rear derailleur from the rear end xation.
