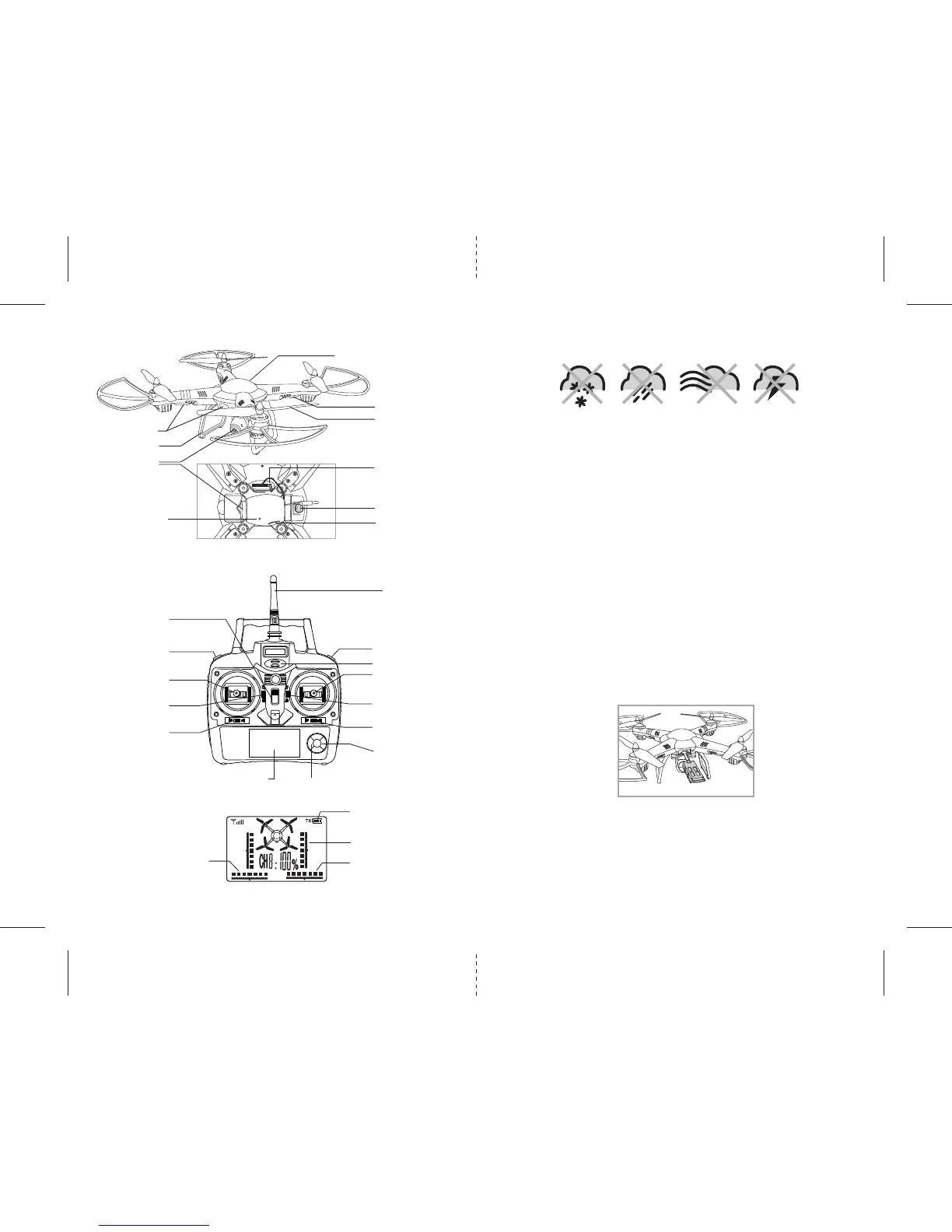

SKY MASTER™ QUADROCOPTER DIAGRAM
SKY MASTER™ REMOTE DIAGRAM
Speed Button
Camera
Angle
Throttle & Spin
Left/Right
Spin Right/Left
Trim
Power Switch
Power Indicator
Antenna
Forward/Backward
Bank Left/Right
Bank Right/Left Trim
Adjustment
360º Flip Button
Forward/Backward
Trim Adjustment
LCD Screen
D
3 4
FLIGHT PREPARATION
• Verify that there are 4 “AA” batteries inside the remote control unit and the Sky Master™ has been
fully charged.
• Make sure your Sky Master™ and controller are both turned on.
• Make sure to be in a large space with an open radius of at least 200 feet.
• Make sure the empty space has no obstacles. Set your Sky Master™ on a clean flat surface before take-off.
DO NOT ATTEMPT TO FLY YOUR SKY MASTER™ IF THERE IS RAIN, SNOW, HEAVY WINDS, THUNDER OR
LIGHTNING OUTDOORS. IT COULD DAMAGE YOUR PRODUCT AND POSSIBLY EVEN CAUSE BODILY HARM.
SYNCING YOUR SKY MASTER™
Important! When syncing your Sky Master™ quadrocopter with the controller always make sure
that the quadrocopter is on a flat level surface and that your digital trim settings are in the center
position. This insures that the 6 Axis gyro is properly programmed to mimic your trim settings.
Your Sky Master™ utilizes an automatic 2.4G channel selection system that allows up to 8 people to fly side
by side in the same wireless range with no interference.
Syncing your aircraft:
1. Before starting, make sure that the power on your controller is in the OFF position and the Sky Master™
battery is not inserted. Make sure that there are no other 2.4Ghz devices in the area as well .
2. Connect the battery to the Sky Master™ and set it down on a flat surface. The LED indicator
lights of the Sky Master™ should begin to flash (see diagram D).
3. Next turn ON the remote controller. After hearing a series of beeps, the Sky Master's
TM
flashing LED
lights will change to a solid glow signaling that the drone and controller have been synced. If this
does not happen, repeat all steps above.
FLYING TIPS
• It is recommended that you operate the Sky Master™ outdoors in a wide space. The ideal space should
have a 200 foot radius.
• Parental guidance or adult supervision is suggested at all times.
• If you are flying the Sky Master™ with others, make sure all spectators are behind you.
• For best performance, it is recommended that you operate the Sky Master™ in zero wind conditions.
Wind can greatly affect the performance of the aircraft or cause injury.
DO NOT FLY YOUR SKY MASTER™ IN FOUL WEATHER!
WARNING
Li-Poly Battery Compartment
Auto Land
Headless Mode
SKY MASTER™ REMOTE LCD DIAGRAM
Rotate Left/Right Trim
Controller Battery Level
Forward/Backward
Trim
Bank Left/Right
Trim
Battery Eject lever
Front
(Green LED Lights)
Back (Red LED Lights)
Landing Gear
Digital Camera
Camera data interface
Camera Indicator Light
Micro SD Card Slot
40%
60%
80%
100%
